ACR-120M
COMPACT DISC RECEIVER
Installation of The Speaker
Installation of The Speaker
Before you connect the speaker, remove the power cord from the power outlet and switch the ACR-120M power
switch off. When connecting the speaker wires to the SPEAKER OUTPUT terminals, use the output terminals that
are suitable for the speaker (see below).
Extreme care must be exercised when connecting to these terminals as potentially hazardous voltages may be present.

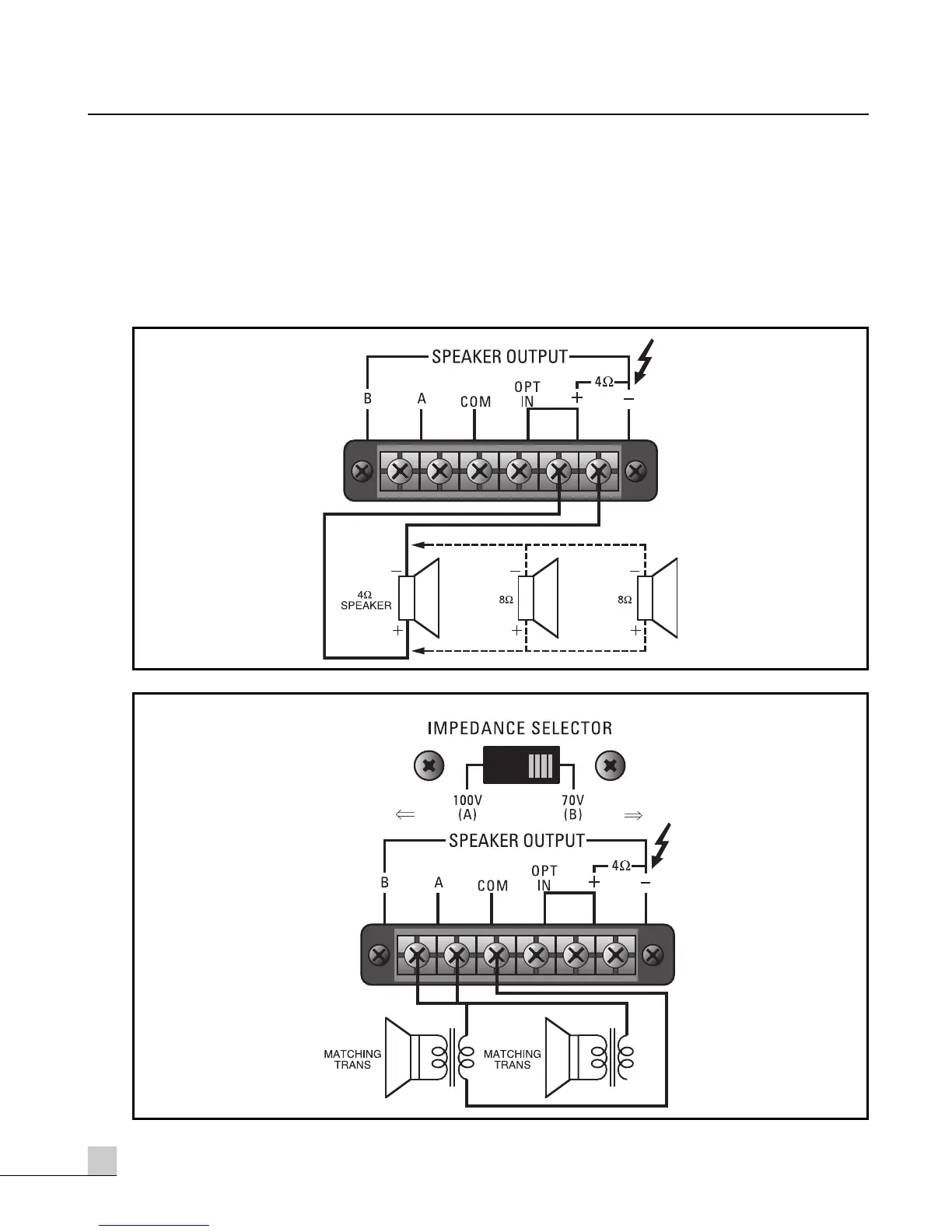

FOR 4Ω TERMINAL
FOR HIGH IMPEDANCE TERMINAL
A.
83Ω
B.
41Ω
To Next Page
