Inter-m ACR-120M User Manual

7
ACR-120M
COMPACT DISC RECEIVER

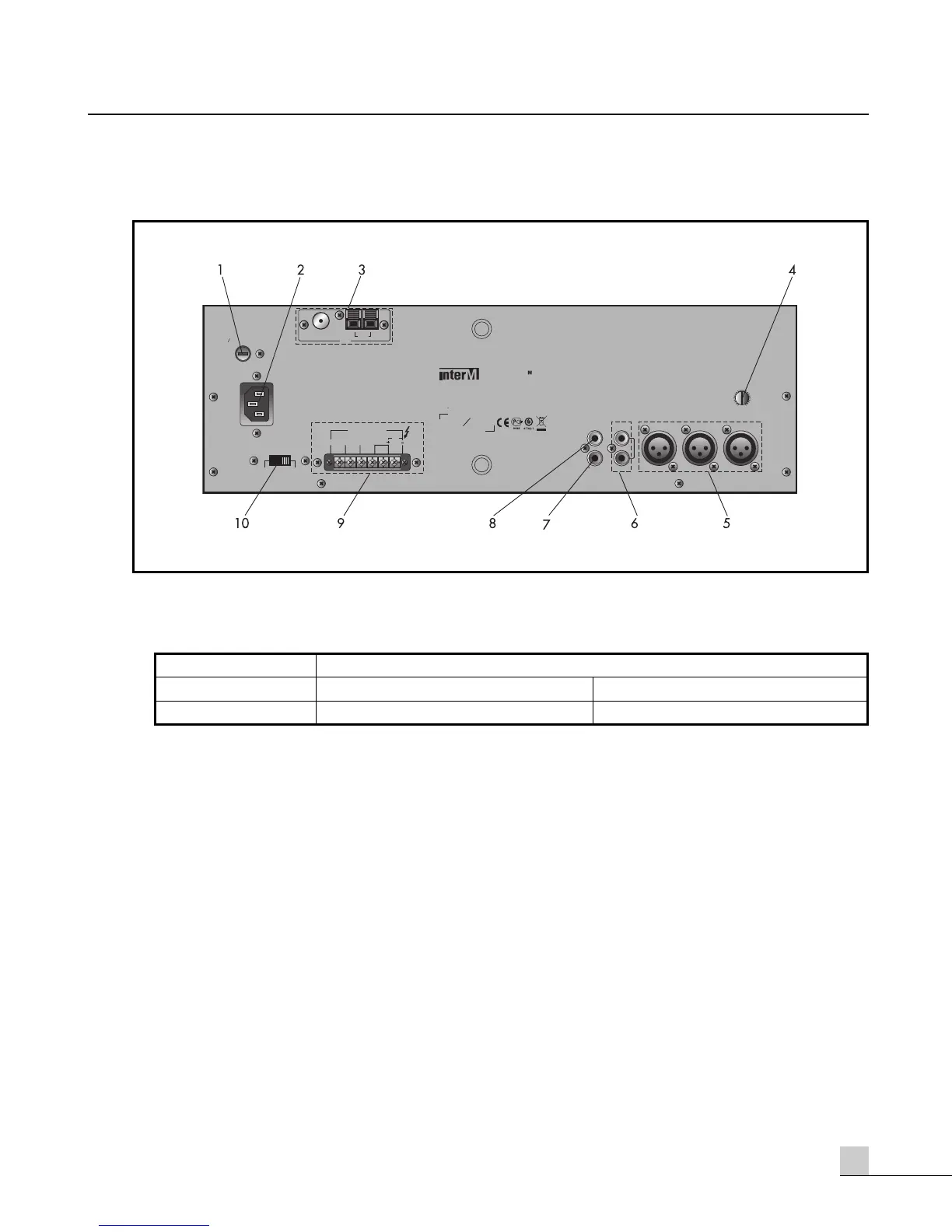

Rear Panel
Rear Panel
1. FUSE HOLDER
This fuse holder contains the AC fuse. If blown, replace it with same type fuse as specified below. If the fuse
continuously blows, refer servicing to qualified personnel.
2. AC INLET
This is the AC INPUT for the AC INPUT CORD.
3. ANTENNA TERMINAL
This terminals for connecting the antenna terminal, when you can use the tuner.
4. MUTE LEVEL CONTROL DURING PRIORITY CALL
When the other channel signals are muted by MIC1 and CHIME, this control is used for adjusting the muting level.
5. MIC INPUT CONNECTORS
These jacks are for MIC 1~3 input. Input sensitivity is 1mV and input impedance balanced 600Ω or
unbalanced 10KΩ, is optional.
6. AUX INPUT CONNECTOR
The sound source from cassette deck etc., is connected to this input.
7. AMP INPUT CONNECTOR
A signal processor like an equalizer or filter can be connected to this input, using an RCA jack plug.
MUTE LEVEL
MIN
MAX
PRE AMP OUT
AUX IN
COM
AMP IN
COMPACT DISC RECEIVER
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION;
AVIS;
TO REDUCE THE RISK OF ELECTRIC SHOCK,
TO REDUCE THE RISK OF FIRE
CAUTION;
REPLACE ONLY
WITH SAME TYPE FUSE. UTILISER UN FUSIBLE DE RECHANGE
DE MEME TYPE.
OPT
IN
FUSE
T F 1.25AL / 250V
AC INPUT
230V 50Hz, 120W
~
IMPEDANCE SELECTOR
100V
(83Ω)
70V
(41Ω)
4Ω
BA
SPEAKER OUTPUT
MIC 3 MIC 2 MIC 1
www.inter-m.com
S
N
MADE IN KOREA
MODEL NO. ACR-120
UNBAL / 75 Ω
LOOP
ANT.
ANT
FM AM
AC 230V-240V
1.25A/250V
MODEL
VOLTAGE
FUSE RATING
AC 100V-120V
3A/250V
ACR-120M
