Both the 12 and 16 channel versions of
the mixing console shall feature 120
degree connectors from the unit surface.
Each channel shall have both XLR and
T/R/S that is switch-selectable. Input
gain on each of the channels shall
range from a -60 dB microphone to a
+4 dB line level signal while three band
EQ with mid sweep shall add to the
clarity of each channel. There shall be
four auxiliaries on each channel for use
as either a monitor or an effects loop,
and a pan pot shall be provided for
assignment to the submains and/or the
mix masters.
Phantom power shall be provided
globally to all channels while 80 mm
Panasonic slide faders shall provide
accurate and smooth channel control.
The master section shall have two
busses with assignment to the stereo
mix master as well as a mono output
for driving near field monitors, or
additional fills for larger format P.A.
applications. Two stereo AUX returns
shall drive directly into SUB MASTERS
via pan pots and assign switches.
The mixing console shall meet the
following performance criteria:
Frequency response shall be from 20 Hz
to 20 kHz (+1/-2 dB @ 600 all outputs);
total harmonic distortion shall be less
than 0.1% 20 Hz to 20 kHz rated @
+14 dB output ; and hum and noise
shall be -127 dB. Phantom power shall
be +48VDC.
The power source shall be 120VAC @ 60
Hz.
The power amplifier shall be an
InterM model __________________
[CMX-1242 or CMX-1642].
CMX-1242/CMX-1642 Architectural and Engineering Specifications

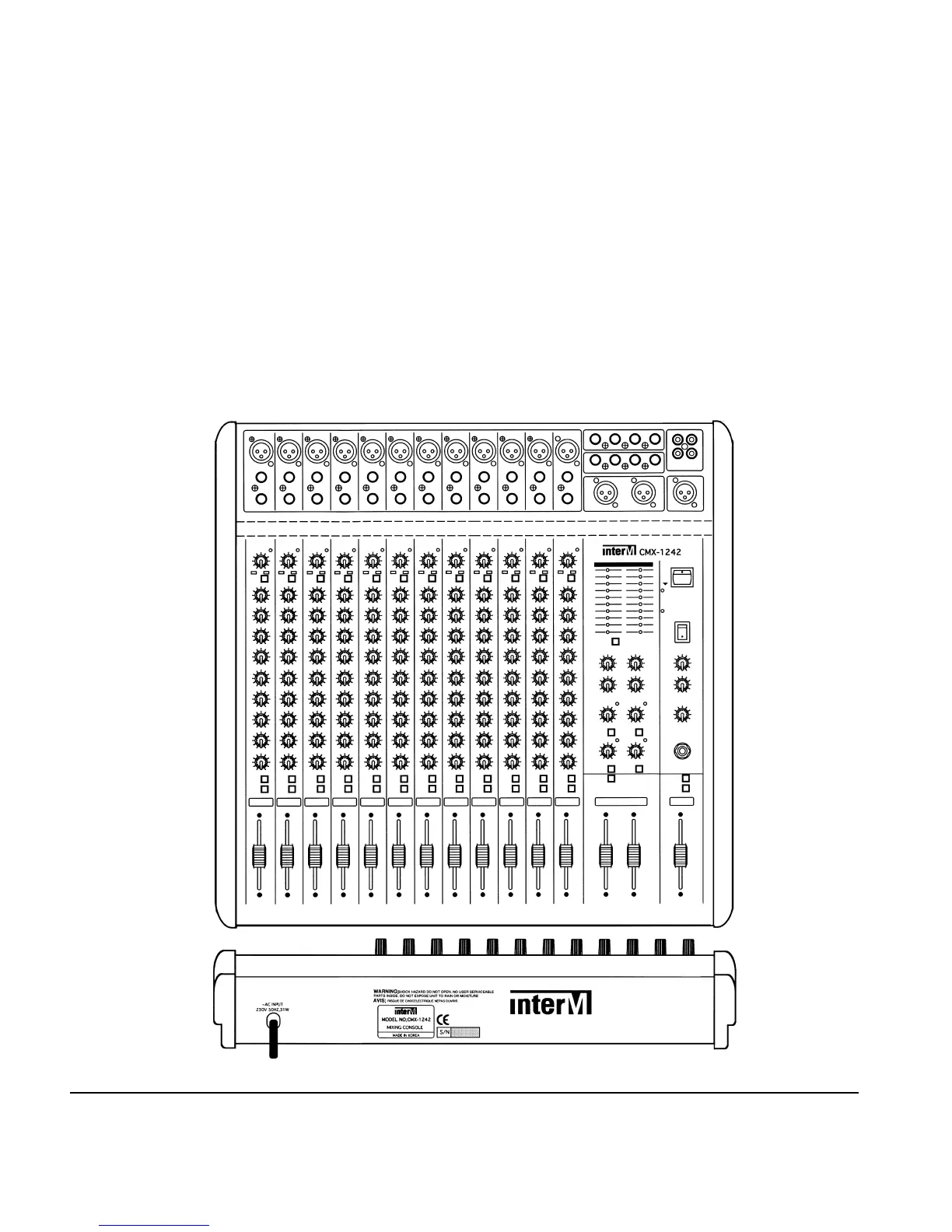

CMX-1242 Front & Rear Views
Specifications subject to change without notice.
E&OE
' Burtek Systems Inc.
97013081419971200 Printed in Canada
