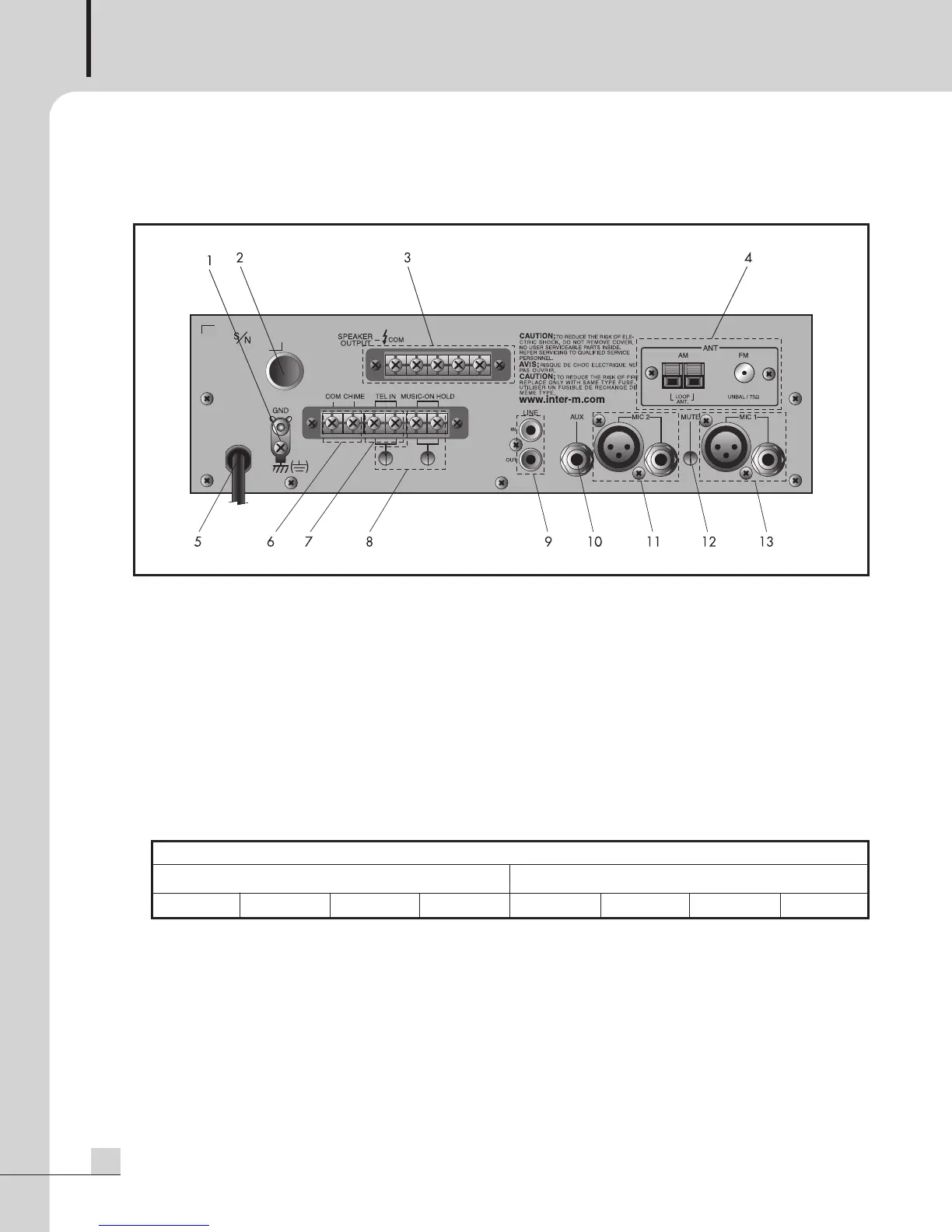

Rear Panel
Rear Panel
1. GND TERMINAL
This grounding terminal is provided for connecting with the chassis of a turntable or other input device to
reduce hum and other ground loop noise. It may also be connected to a true earth ground, such as an AC
third-pin ground or water pipe, to further reduce ground loop noise.
2. AC FUSE HOLDER
This holder contains the AC overload protection fuse. If the fuse has blown out, replace it with a fuse of the
same type and rating.
3. SPEAKER OUTPUT TERMINAL STRIP
Connect speakers whose combined impedance is equal to or higher than the rated output impedance, as
shown below.
4. AM/FM ANTENNA TERMINALS (PA-1000BR ONLY)
The FM terminal accepts a 75 Ohm Coaxial cable that terminates at an FM antenna.
The AM terminal accepts the lead wires of the provided AM antenna (or other suitable antenna). Antenna
position may affect performance so it may be necessary to reposition the antenna for the best reception.
5. AC POWER CABLE
Connect this cable to your AC outlet.
PUBLIC ADDRESS AMPLIFIER/RECEIVER
6
PA-1000B/1000BR
Impedance/Output Voltage
USA/CANADA & Associated Version EC & Associated Version
4Ω/11V 8Ω/15V 21Ω/25V 163Ω/70V 4Ω/11V 8Ω/15V 163Ω/70V
333Ω/100V
