Inter-m PA-9324 Operating Manual

44

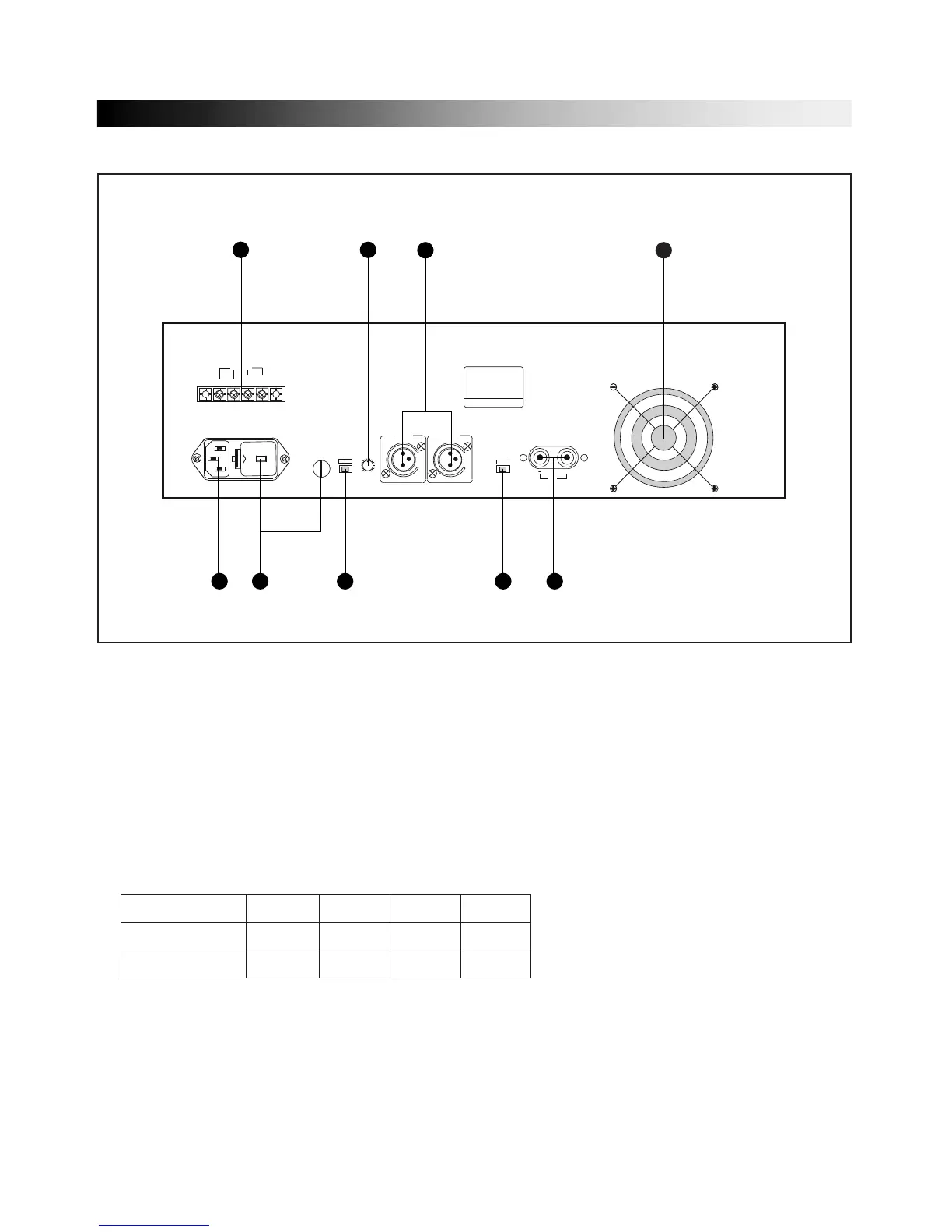

REAR PANEL CONTROLS
1. FAN
The fans should be kept free of all obstructions and be accessible to cool fresh air when
possible. It is important that the fans be used in a dust free environment.
2. SPEAKER OUTPUT TERMINALS
These terminals are for connection of speaker lines to deliver power output to speakers.
Impedance (voltages) of 4Ω, 8Ω, 70V and 100V are provided for convenience. In any case,
use the speakers whose combined impedance is equal to or higher than the rated output
impedance of amplifier.
*100V or 25V can be selected optionally
3. INPUT JACKS
These input jacks and terminals are for the balanced input signal. You can connect amplifiers
in parallel by using XLR jack.
4. LEVEL ADJUST CONTROL
This control is for adjusting the level of amplifier from –12dB to 0dB with the reference input
sensitivity of 0dB (1V). Rotating the control clockwise increases the level and counter-
Model 4Ω 25Ω 70V 100V
PA-9312 22V 5.2Ω 42Ω 83Ω
PA-9324 32V 2.6Ω 21Ω 42Ω
DC FUSE
10A/250V
0dB
HPF
INPUT
ADJ.
BALANCED
INPUT
1V/10KΩ
LINK
OFF
ON
FRAME
FLOAT
-12dB
22V(4Ω)
B
70V(41Ω)
A
100V(83Ω)
COM
OUTPUT
230
FUSE:T2AL/ 250V
AC INPUT:230V 50Hz,300W
~
+
DC INPUT
24V
GROUND
LIFT
CAUTION; REPLACE WITH THE SAME TYPE
FUSE AS INDICATED. UTILISER UN FUSIBLE
DE RECHANGE DE MEME TYPE.
MODEL NO;PA-9312
PUBLIC ADDRESS
POWER AMPLIFIER
MADE IN KOREA
OUTPUT POWER:120W
SHOCK HAZARD DO NOT OPEN.
NO USER SERVICEABLE PARTS INSIDE. DO
NOT EXPOSE UNIT TO RAIN OR MOISTURE
WARNING;
RISQUE DE CHOCELECTRIQUE NE
PAS OUVRIR.
AVIS;
13
8 97
2
6
4
5
