PA-935A
AMPLIFIER

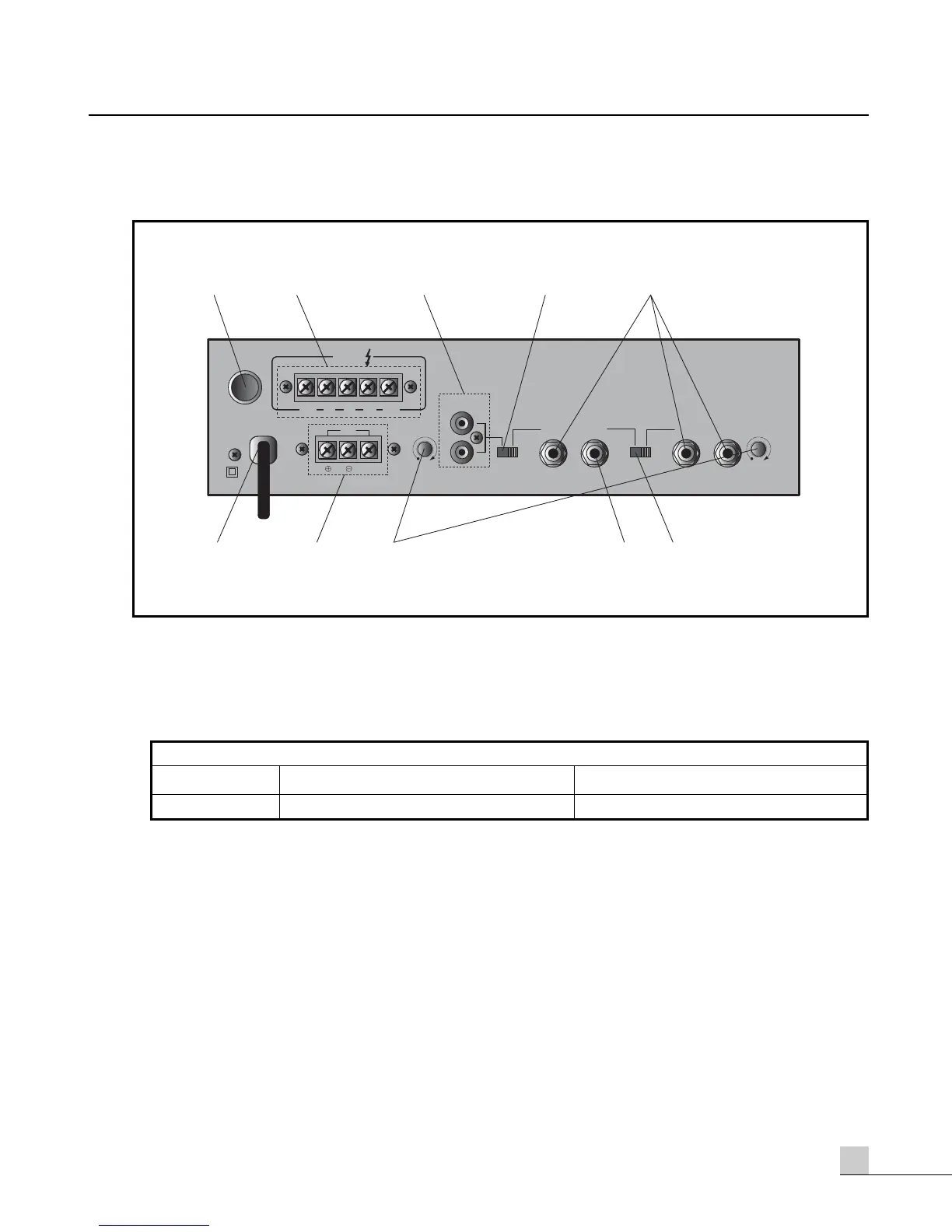

Rear Panel
Rear Panel
1. FUSE HOLDER
This holder contains the AC overload protection fuse. If the fuse has blown out, replace it with a fuse of the
same type and rating, as shown below.
If the fuse continues to blow, refer servicing to a qualified service technician.
2. SPEAKER OUTPUT TERMINAL
These terminals are used to connect speakers to the unit. You may select either 4Ω or 8Ω conventional
operation, or High Impedance operation at either 70V or 100V.
3. CD/SATELLITE INPUT
This RCA jack accepts a standard line-level input. Mic input 3 may be set to line-level with the use of its
associated Mic3/CD/SATELLITE switches.
4. MIC 3/CD/SATELLITE SELECTOR SWITCH
This switch is used to select between mic level and line level for Mic 3/CD/SATELLITE input.
5. MIC 1,2,3 INPUTS
These 1/4" phone jacks accept a standard mic-level or line-level input. Mic inputs 2 and 3 may be set to line-
level with the use of their associated Mic/Aux switches.
