Inter-m PD-6359 - Rear Panel; AC Outlet (Switched 1, 2, 3); AC Outlet (Unswitched)

POWER DISTRIBUTOR
7
PD-6359
Rear Panel
Rear Panel

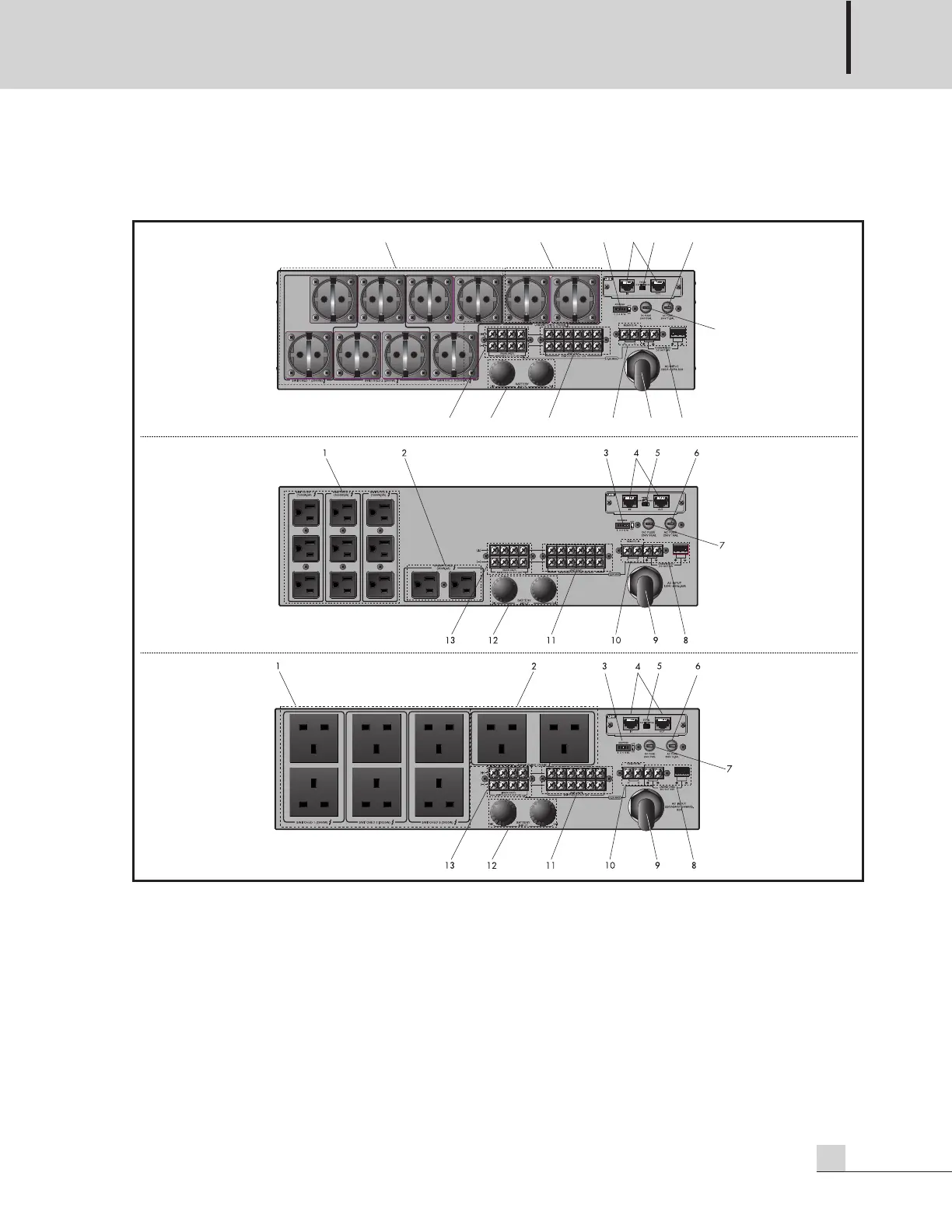

1. AC OUTLET (SWITCHED 1, 2, 3)
It is AC power supplying terminal. AC power will be output when front power switch is on or device is
operated remotely.
When POWER ON, it will be on by orders of AC SWITCHED 3 →AC SWITCHED 2 →AC SWITCHED 1 for
2 seconds interval, and if power is off, it will be off in reverse orders.
2. AC OUTLET (UNSWITCHED)
It is the terminal which AC power is supplied all the times, and it connects the devices which power should
not be off.
1 642
7
53
1
312 11 10
89
-A TYPE
-B TYPE
-C TYPE
