5
PS-9116
SPEAKER SELECTOR

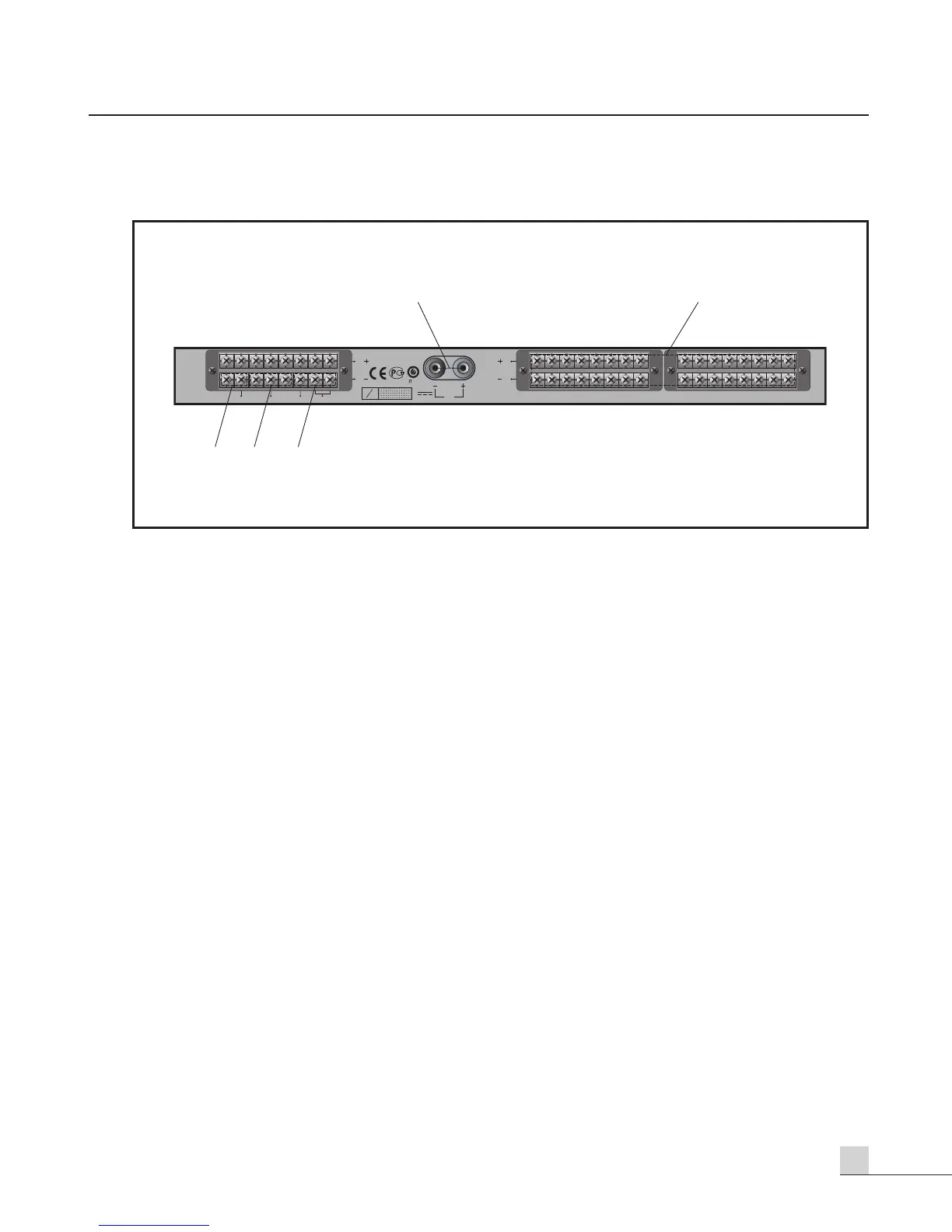

Rear Panel
Rear Panel
1. DC INPUT TERMINALS
These terminals are for connection to DC 24V power source which is used for indicating LED.
2. 16 SPEAKER OUTPUT TERMINALS
These terminals are for connection of speaker lines to deliver power output to speakers.
Be careful not to change the Hot and Common Lines.
3. AMP INPUT TERMINALS
These terminals are for connection to speaker output(100V Line) of power amplifier. Be careful not to change
the Hot and Common Lines.
4. REMOTE CONTROL TERMINALS(ALL, GROUP 1, GROUP 2)
You can select the the all speakers, Group 1 speakers or Group 2 speakers by these remote control terminals.
5. TIMER, REMOTE CONTROL INDICATOR TERMINALS
These terminal are for connection to indicator output terminals of timer or remote control equipment.
