PT-9107SD
STEREO TUNER

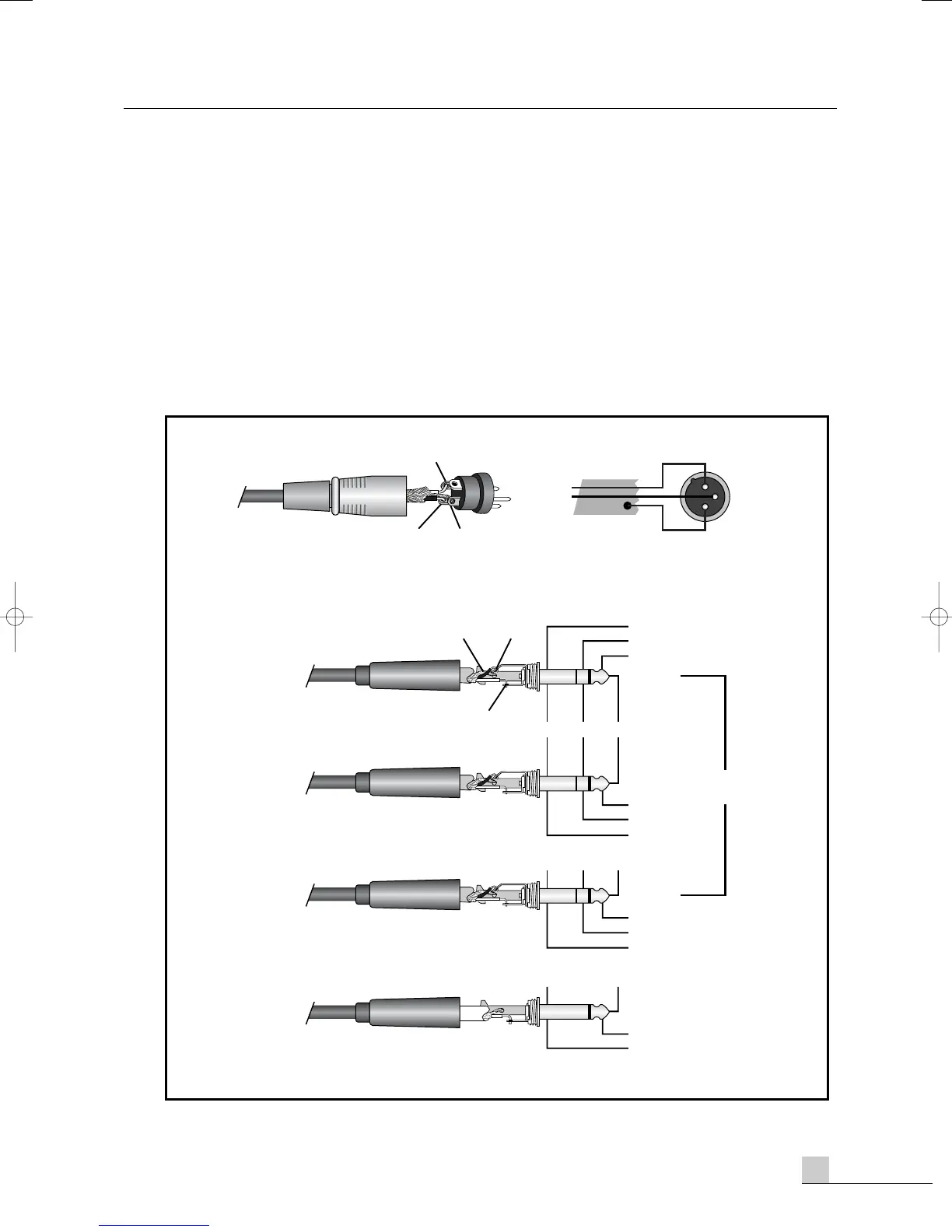

- SYSTEM INTERCONNECT
Inter-M products are wired to reflect accepted wiring practices used throughout the world.
Balanced 1/4” TRS connectors are wire as described:
Tip is Positive
Ring is Common
Sleeve is Shield
Unbalanced RCA connectors are wire as described:
Tip is Positive
Sleeve is Common
Insert Points
Amp/Line Input
Headphones
Unbalanced
Input/Output
AUX Send
Ring
Ring
Tip
Tip
Sleeve
Sleeve
Send
Return
Screen
Hot (+ve)
Cold (-ve)
Screen
Left Signal
Right Signal
Ground
Signal
Ground
3 Pole (Stereo) Jack
2 Pole (Mono) Jack
Ring TipSleeve
TipSeeve
2
1
3
Balanced Input
Hot (+ve)
Hot (+ve)
Sleeve
Screen
Cold (-ve)
Cold (-ve)
