- ANTENNA
FM
The ability to receive an FM signal may be diminished by terrain, area buildings, and the construction
materials of the building housing the receiver. Keep these circumstances in mind when selecting the type of
FM antenna and its mounting position.
An indoor FM antenna is provided and should be suitable for most applications. Repositioning the antenna
may be necessary to identify the optimum mounting location. If greater signal strength is required, replace
the supplied antenna with a large outdoor FM antenna using 75 Ohm coax as the lead wire.
AM
The ability to receive an AM signal may be diminished by terrain, area buildings, and the construction
materials of the building housing the receiver. Keep these circumstances in mind when selecting the type of
AM antenna and its mounting position.
An AM antenna is provided and should suitable for most applications. Repositioning the antenna (including
taking it outdoors) may be necessary to identify the optimum mounting location.

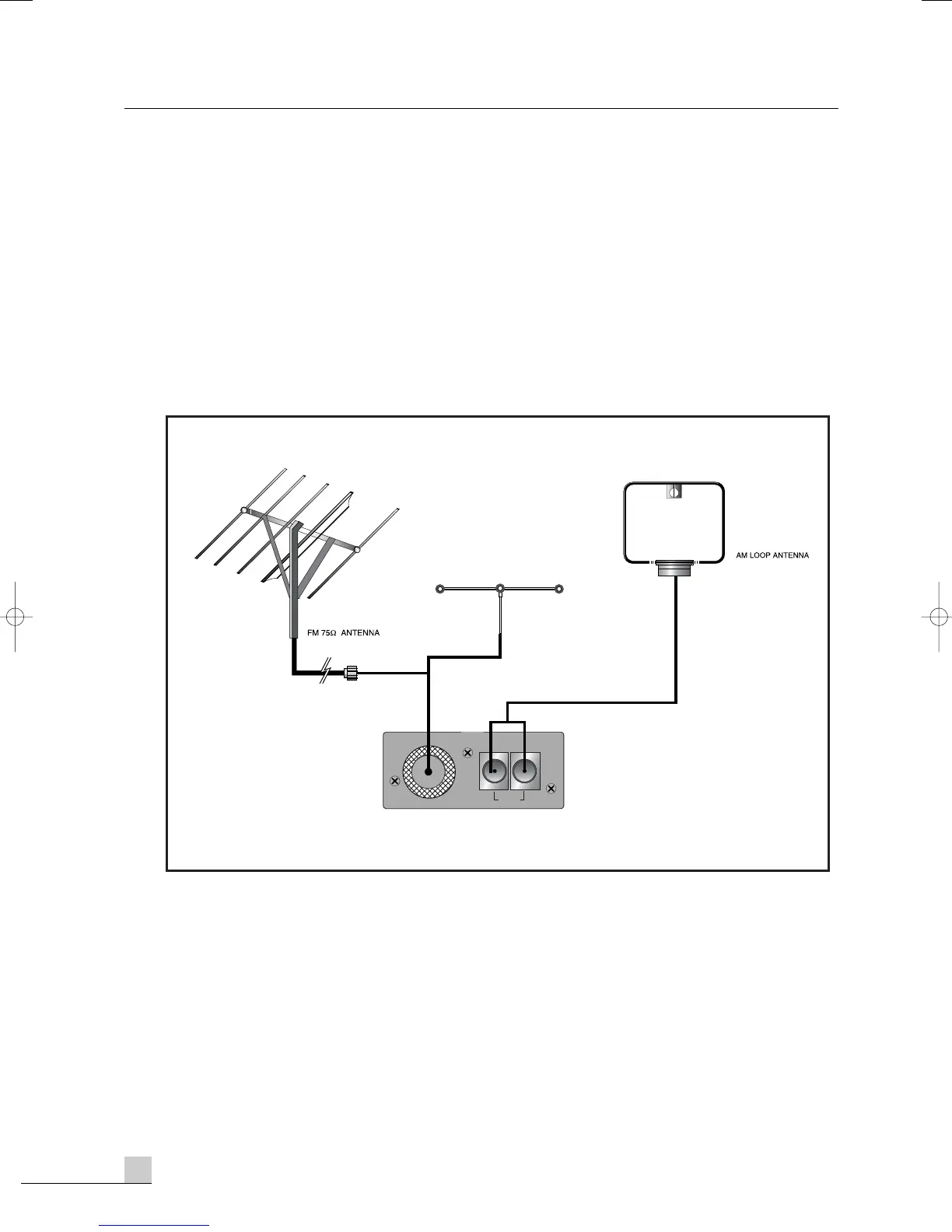

UNBAL / 75Ω
LOOP
ANT.
ANT
FM AM
FM T-SHAPE ANTENNA
(USE 300Ω/75Ω MATCHING TRANS)
