6. AUDIO INPUT TERMINAL
It is an audio input terminal enabling to connect with source devices including CD player. It is configured
with RCA input terminal and AUX input terminal. Refer to the following for the cables needed to the terminal.
RCA terminal AUX terminal
7. AUDIO OUTPUT TERMINAL

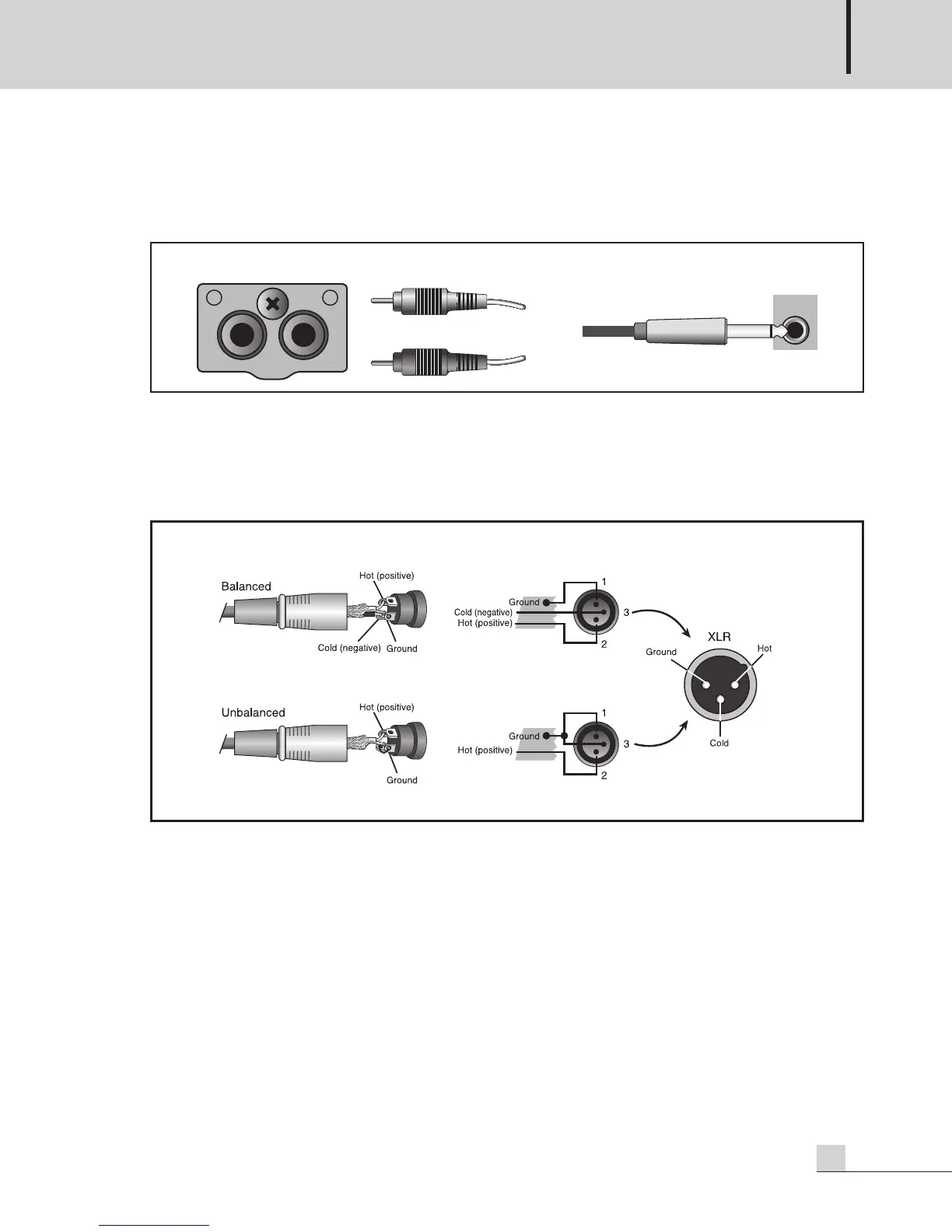

It is an audio output terminal. It is divided into L channel and R channel. You can also use as MONO type
depending on output setting. Please use the balanced cable. When using the unbalanced cable, refer to
below figure to connect it.
8. AUDIO OUTPUT LEVEL ADJUSTING VOLUME
It can adjust the level of audio output. It can adjust from 0dB to 15dB.
AUX
CD
R
L
XLR JACK
