Interacoustics ad226 - Tone Test

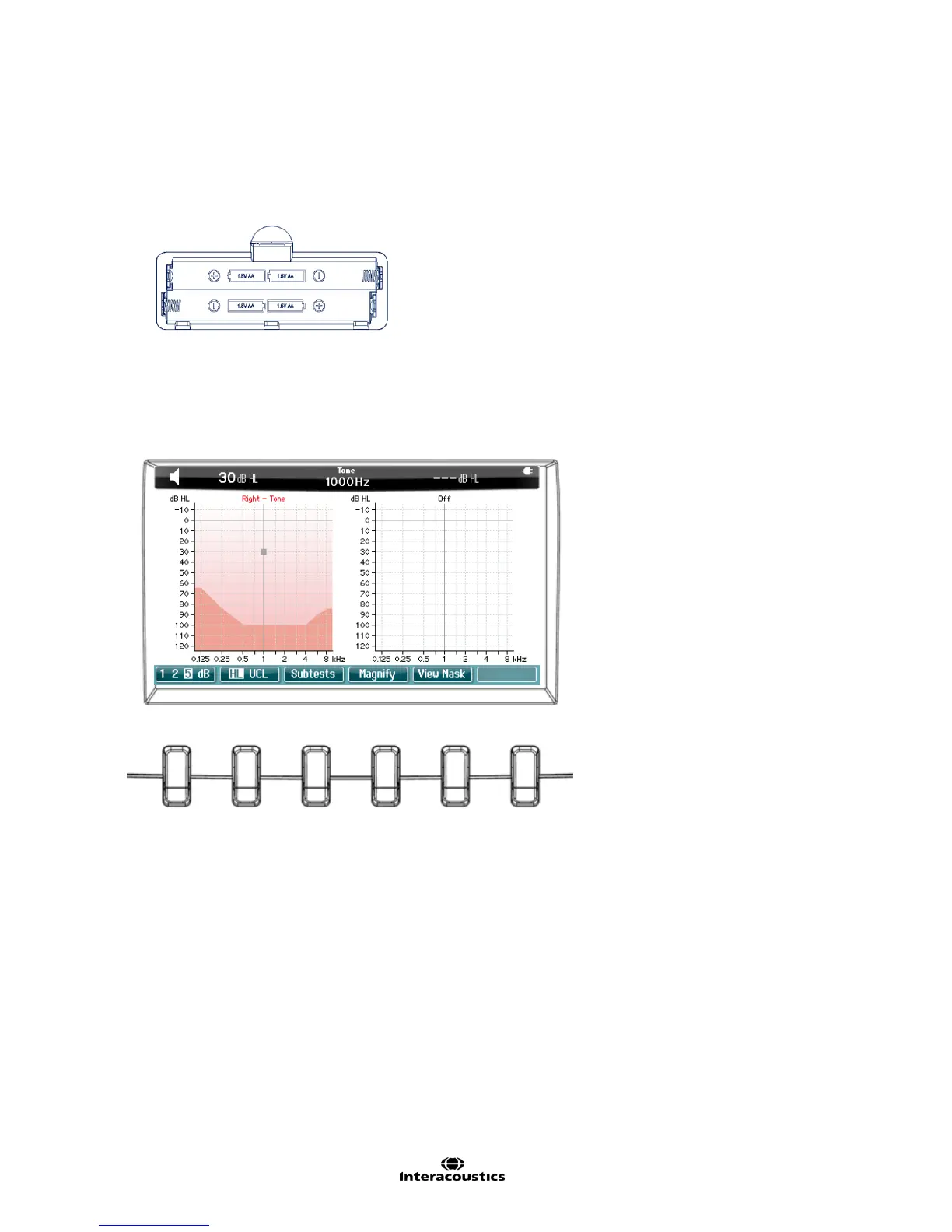

AD226 Instruction for Use - US Page 11
Battery operation
Insert batteries correct according to marking.
Use 4x1.5V/1.2V Alkaline/NiMH Type AA
Note:
When the instrument is battery powered or USB-only
powered the maximum stimuli output level is reduced
20dB
3.4 Tone test
Text on screen
Description
7
1 2 5 dB
Choose between 1, 2 and 5 dB intervals when adjusting the intensity levels in
channel 1 and 2 or adjusting the masking level when masking is used.
8
HL UCL
Choose between HL and UCL …
9
Subtests
Choose the different subtests, Stenger and ABLB by holding the Function Key
(9) and choosing the required test by using one of the rotary wheels (32)/(33)
10
Magnify
Switch between magnified top bar and normal sized top bar.
11
View Mask
View the masking levels when masking is on by holding the Function Key (11)
(7)
(8)
(9)
(10)
(11)
(12)
