Interklima Dx Cassette Units
II-IO CCV1 R410A / Rotary / Scroll
31
ñ The spaces between the unit and ceiling can now be adjusted.
Use the drop rods to make the adjustment.
ñ Check to ensure the unit is level. The drain will then
automatically be lower than the rest of the drip tray.
ñ Tighten the nuts on the suspended rods.
Drain pipe work
Indoor Unit
ñ The unit is fitted with a condensate pump with a 500 mm. lift.
ñ The unit is provided with 22 mm. bore flexible hose 300 mm.
long.
ñ The flexible hose should be fitted into a 22 mm O/S º.
polyvinyl tube and sealed. The drain must be installed with a
downward slope.
ñ On completion the drain line should be insulated

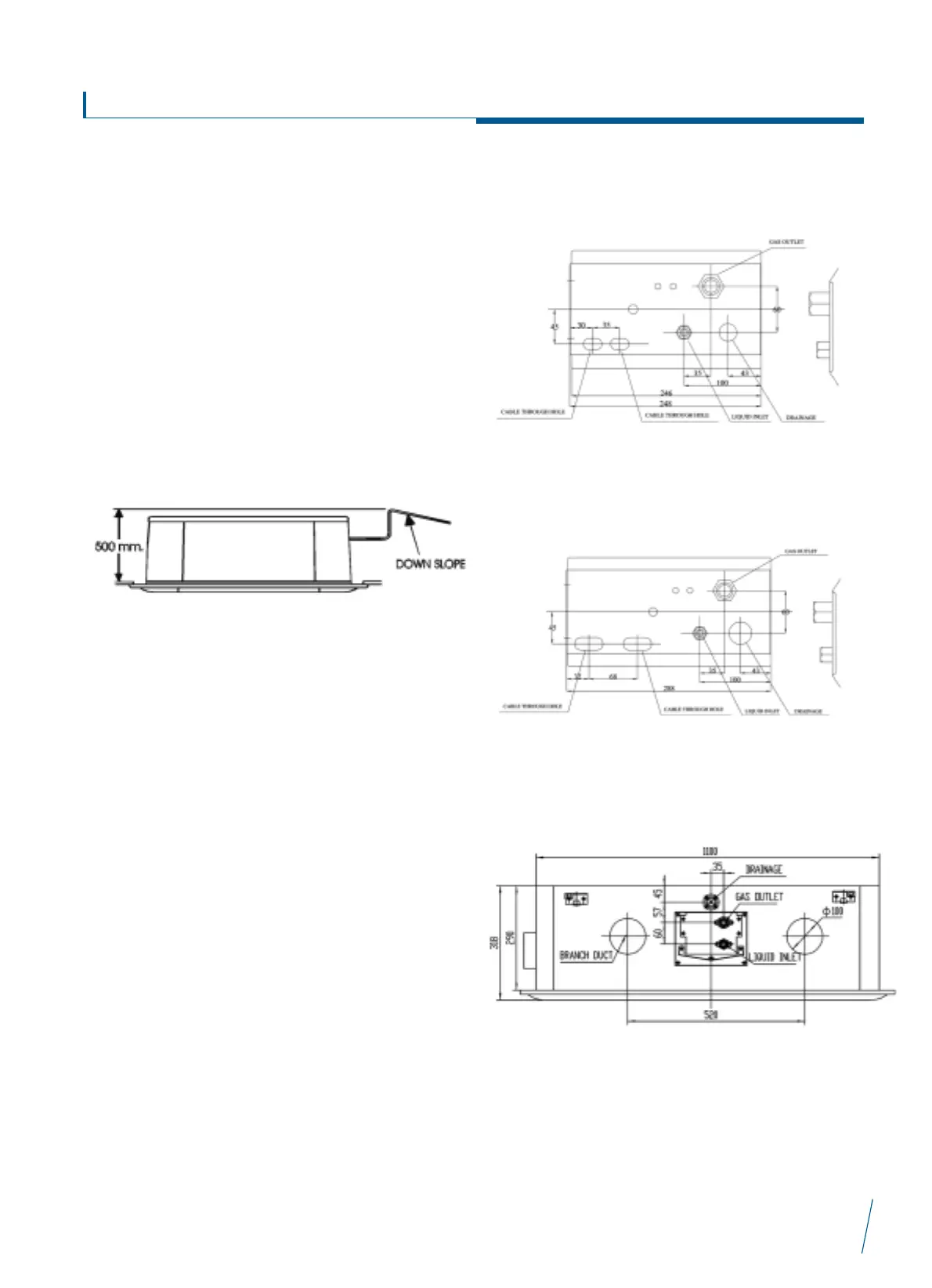

Pipe connection dimensional drawings
II 09/12CCV1
II 18/24CCV1
II- 25/30/35/40/50CCV1
Fig.16
