Interklima II09CCV1 - Page 40

Interklima Dx Cassette Units
II-IO CCV1 R410A / Rotary / Scroll
40

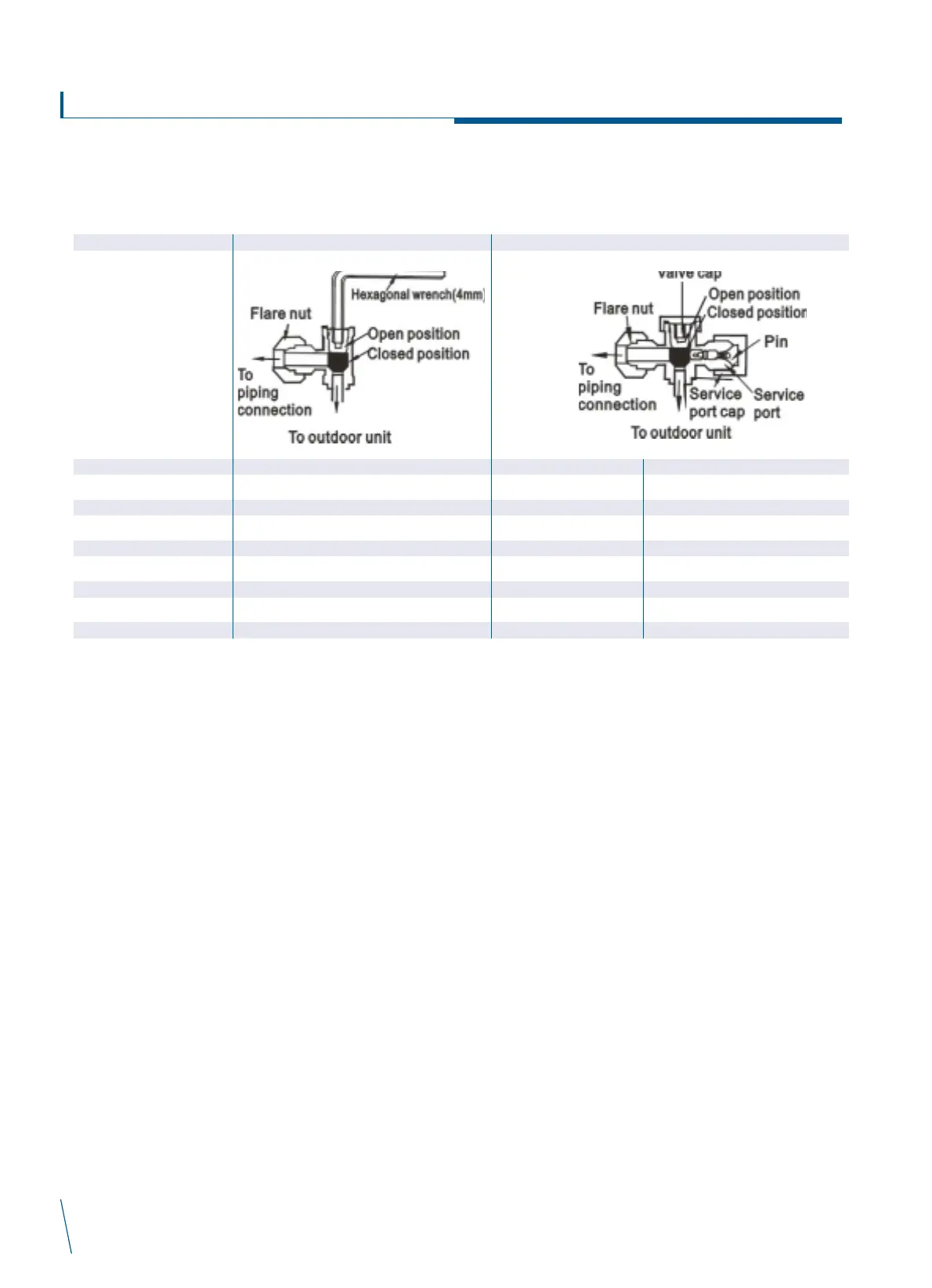

2-way, 3-way Valve
2-way Valve (Liquid Side)
Shaft position
Closed (with valve cap)
Open (counter-clockwise)
Open (with valve cap)
Open (clockwise)
Open
Open
Open
Open
3 -way Valve (Liquid Side)
Shaft position
Closed (with valve cap)
Closed (clockwise)
Open (with valve cap)
Open (counter-clockwise)
Open
Open
Open
Open
Service port
Closed (with cap)
Closed (push-pin or with vacuum pump)
Closed (with cap)
Open (connected to manifold gauge)
Open (with charging cylinder)
Open (with charging cylinder)
Open (with charging cylinder)
Open (with charging cylinder)
Works
Shipping
1. Air purging (Installation)
2. Pumping down (Transferring)
3. Evacuation (Servicing)
4. Gas charging (Servicing)
5. Pressure check (Servicing)
6. Gas releasing (Servicing)
