Interklima Dx Cassette Units
II-IO CCV1 R410A / Rotary / Scroll
51

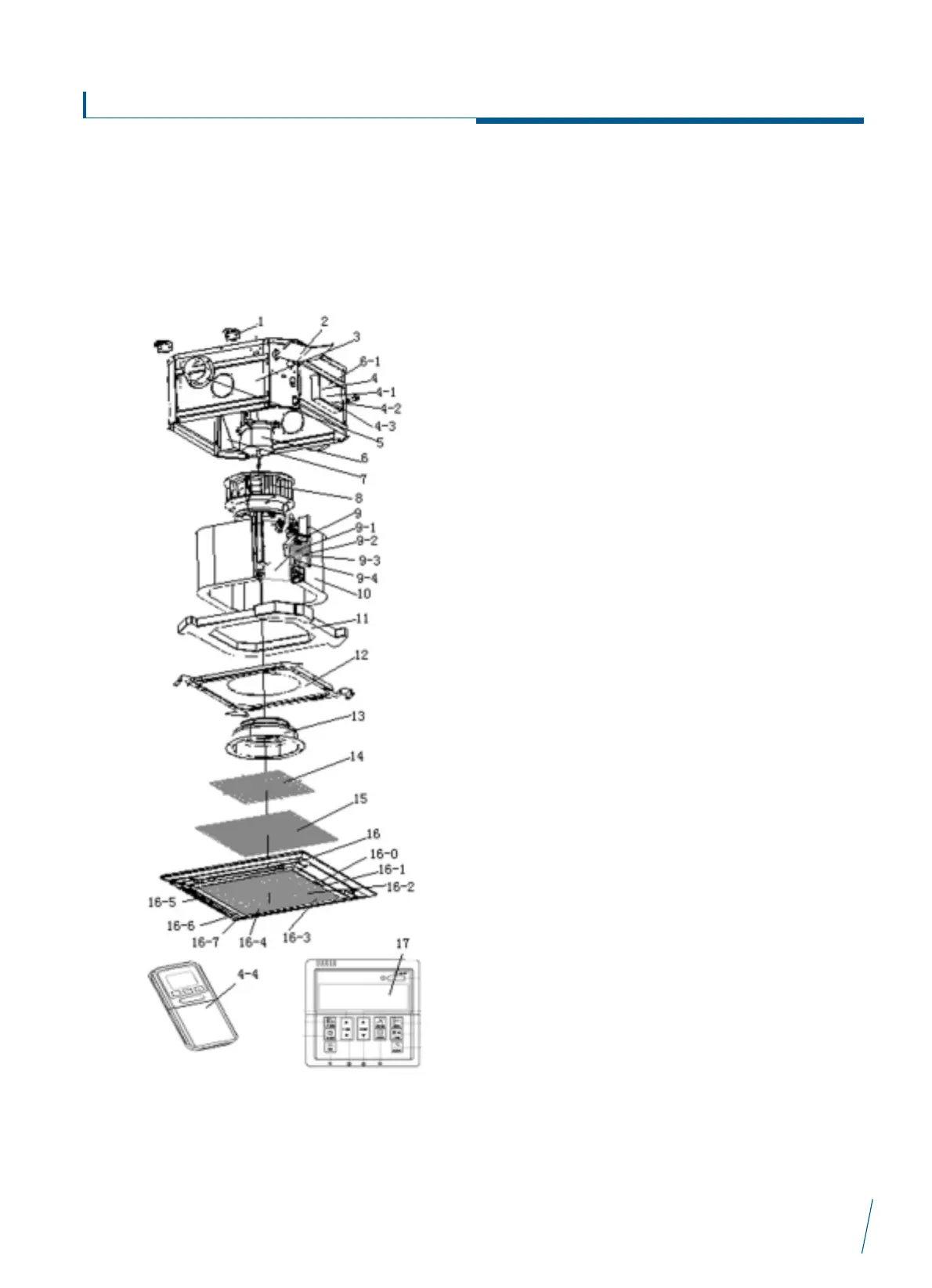

Exploded view drawing
II09/12/18/24CCV1
1 Mounting brackets
2 External drain pan
3 Casing
4 Control box
4-1 Main PCB
4-2 Transformer
4-3 Terminal block
4-4 Remote handset
4-5 Wire clip
5 Branch duct
6 Fan motor
6-1 Motor capacitor
7 Fresh air outlet
8 Fan blower
9 Drain pump assembly
9-1 Drain pump fixture
9-2 Drain pump
9-3 Drainage tube
9-4 Float switch
10 Coil
11 Drain pan
12 Drain pan fixture
13 Venturi
14 Shield
15 Air filter
16 Cover panel assembly
16-0 Receiver display
16-1 Receiver label sticker
16-2 Grille
16-3 Bolt (Left)
16-4 Bolt (Right)
16-5 Swing Louver
16-6 Stepping motor
16-7 Fan bearing
17 Wired wall pad
