Interklima Dx Cassette Units
II-IO CCV1 R410A / Rotary / Scroll
52

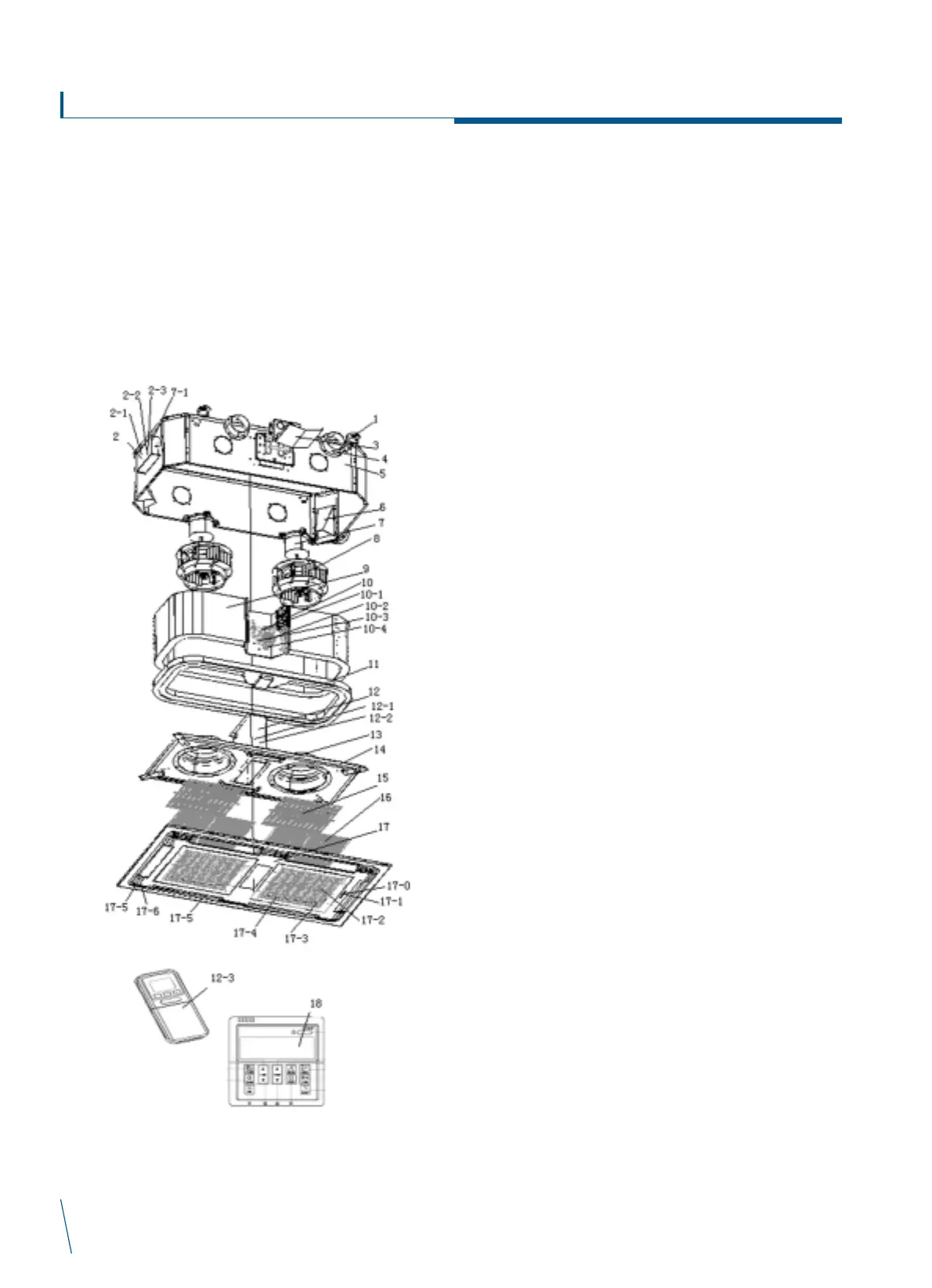

Exploded view drawing
II25/30/35/40/50CCV1
1 Mounting brackets
2 Outside wiring box
2-1 Terminal block
2-2 Invert Board
2-3 Wire clip
3 Branch duct
4 External drain pan
5 Casing
6 Fresh air outlet
7 Fan Motor
7-1 Fan Motor Capacitor
8 Fan blower
9 Coil
10 Drain Pump assembly
10-1 Pump fixture
10-2 Drain Pump
10-3 Drainage tube
10-4 Float switch
11 Drain pan
12 Inside control box
12-1 Transformer
12-2 Main PCB
12-3 Remote handset
13 Venturi
14 Drain pan fixture
15 Shield
16 Air filter
17 Cover Panel assembly
17-1 Grille
17-2 Receiver label sticker
17-3 Swing Louver
17-4 Bolt (Right)
17-5 Bolt (Left)
17-6 Stepping motor
17-7 Fan bearing
18 Wired wall pad
