Interklima Terminal Units
PCE -VS ñ Hydronic cassette
24

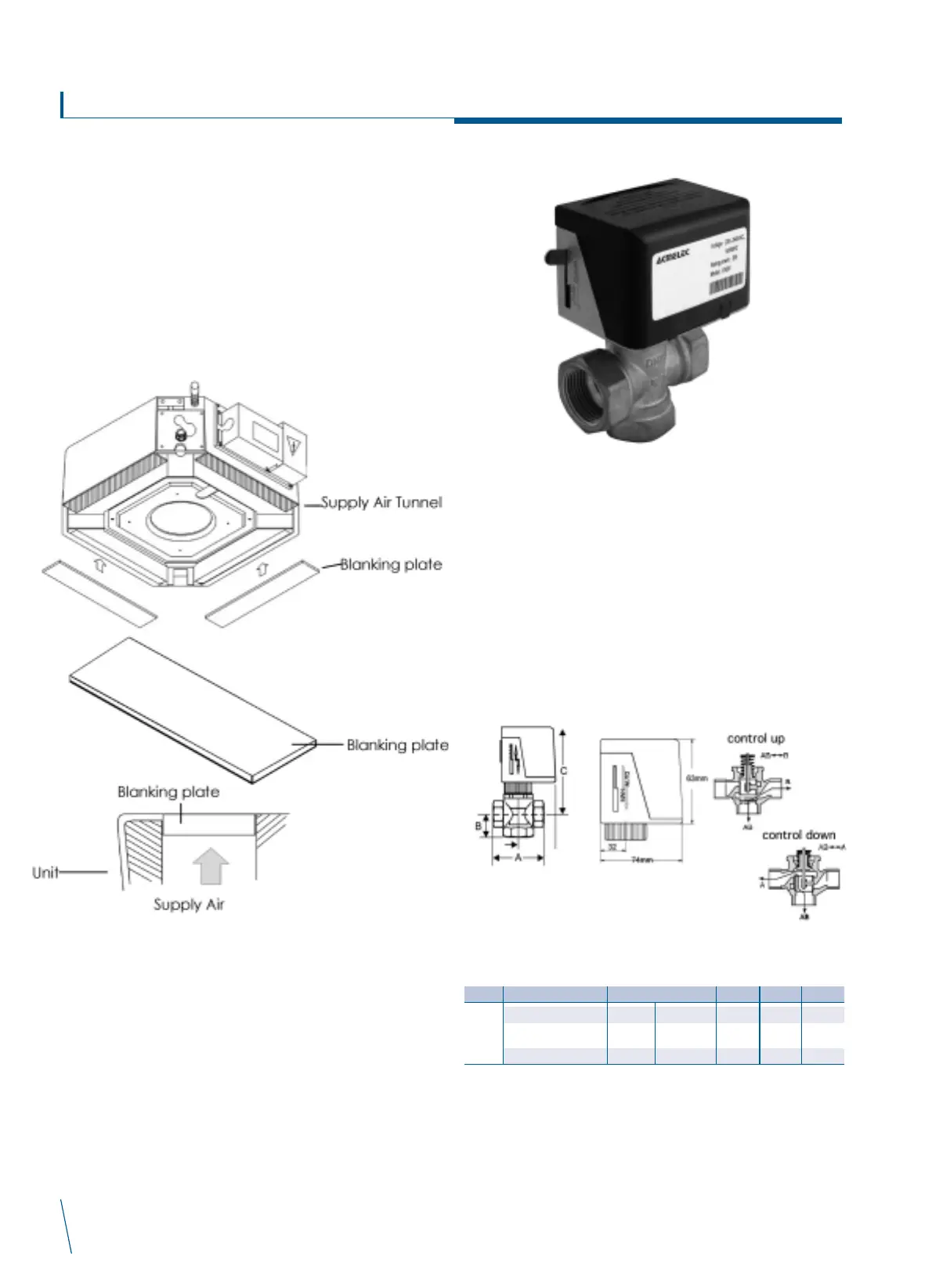

BLANKING PLATES
See the following diagram and installation method.
How to install
1) Peel off the cover paper to expose adhesive surface of the
blanking plate.
2) Apply blanking plate on the supply air tunnel to cover the
opening.
3) Press on the attaching area to firmly seal it.
Solenoid valve (optional)
The solenoid valve consists of a motor and a main body. The
synchronous motor recovers by a spring and can be controlled
by a handle. The main body adopts the piston system.
1. Technical data
Power supply: 230VAC50Hz
Input: 5W
Electric machine type: synchronous
Working pressure: 1.6Mpa
Ambient operating temperature: 0~65
Liquid temperature range: 1~95
2. 3 way valve
3. Specification
ITEM MODEL DIAMETER A B C
3 Way VA-7010-8003-15 1/2" DN15 55 29 98
valves VA-7010-8003-20 3/4" DN20 66 33 37
VA-7010-8003-25 1" DN25 98 102 104
