Interlogix ATS1201 8 User Manual

2 / 40 P/N 1052491 (ML) • REV D • ISS 01JUL19
4
5
EN: Installation Sheet
Mains power connection
Use the mains connector terminal for connecting the mains-
supply. A fixed cable or a flexible mains leading to an earthen
mains outlet can be used. In case fixed wiring is used, insert a
dedicated circuit breaker in the power distribution network. In
all cases, the mains connection has to comply with local
regulations.
When installing the mains power, use strain relieves like cable
ties and coupling PG16’s to ensure proper wiring.
WARNING: Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and
allow stored energy to discharge before installing or removing
equipment.
Battery replacement
This product contains one or more sealed, rechargeable, BS-
type lead-acid batteries. Because removing a battery may
affect the product’s configuration settings or trigger an alarm,
only a qualified installer should remove the batteries.

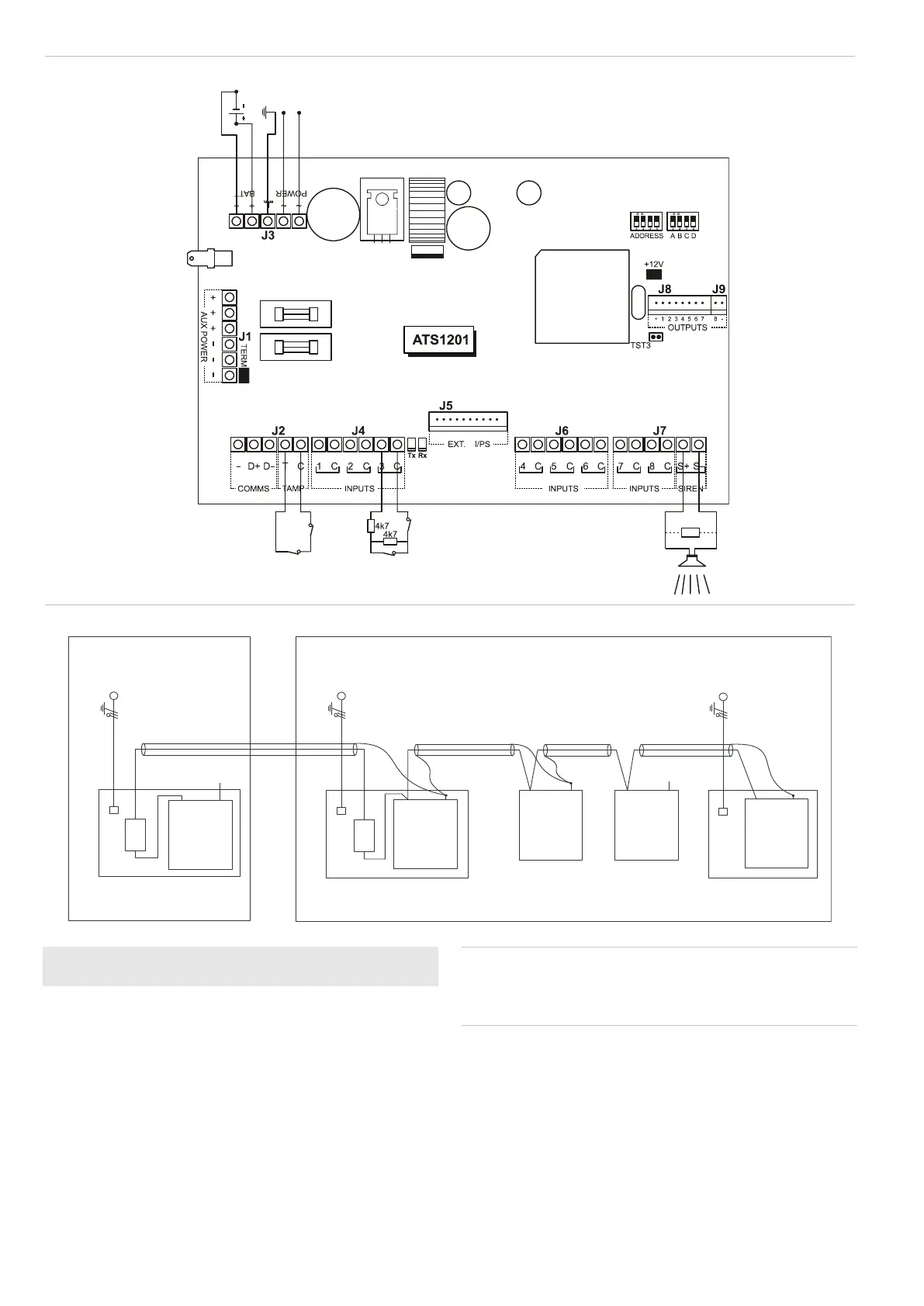

(1) (2) (3)
(4) (5)
(7)
(8)
(10)
(11)
(12)
(13) (13)
(14)
(15) (16) (17)
(20)
(18) (19)
(6)
(9)
1740
ATS1201
1740
ATS CP
ATS1210
ATS1116
ATS1203
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(3)
(3)
(4)
(4)
(4)
(4)
(5)
(5)
(7)
(7)
(8)
(9)
(8)
(9)
(9)

Interlogix ATS1201 8 Specifications

General

Brand	Interlogix
Model	ATS1201 8
Category	Control Unit
Language	English
