Intermatic Ascend ST700W Quick Installation And Setup Guide

5

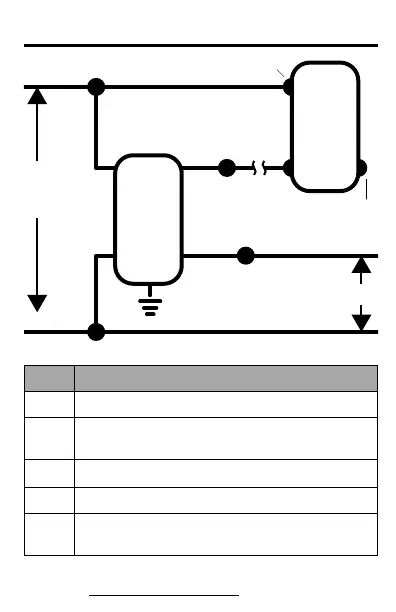

TYPICAL THREE-WAY WIRING
120 V
Power
Source
White
Black
100 ft.
MAX
Blue
Green
Red
Neutral
Line
Timer
Existing
Remote
Switch
Common Terminal
No Longer
Used
Load
Wire Description
Blue Connects to black wire from Load
White Connects to white (neutral) wire from Load and Power
Source
Black Connects to black (hot) wire from Power Source
Green Connects to ground
Red Connects through remote switch to black (hot) wire
from Power Source
Note: For other three-way wiring scenarios,
go to www.Intermatic.com/Ascend.
