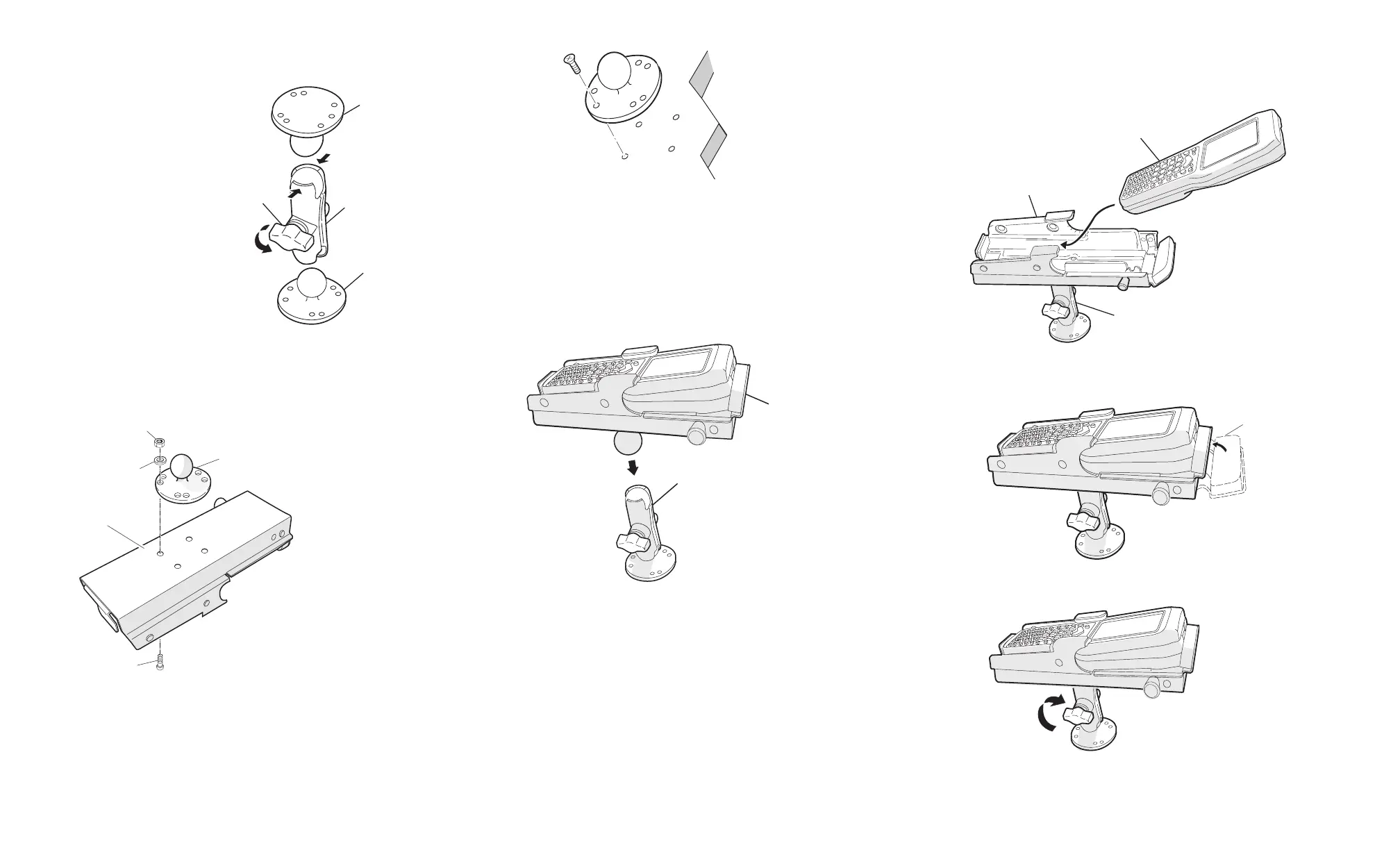

To install the vehicle cradle
1 Remove the mounting
plates from the mounting
arm.
a Turn the knob on the
mounting arm just until
the plate at the top of
the arm is released.
Remove the plate.
b Squeeze the top of the
mounting arm and
remove the plate at the
bottom of the mounting
arm.
a
b
Mounting
arm
Mounting
plate
at top
Mounting
plate
at bottom
Knob
2 Use the hardware included in the vehicle cradle kit to attach
one of the mounting plates to the back of the vehicle cradle.
Tighten the screws to 2.82 Nm (25 in-lb) torque.
Mounting
plate
Nut
(4 places)
Washer
(4 places)
Screw
(4 places)
Back of
cradle
3 Using the second mounting plate as a template, mark and
drill at least four holes in the mounting surface on the
vehicle.
Screw
(at least
4 places)
4 Attach the second mounting plate to the mounting surface
on the vehicle using appropriate hardware (up to a #10
screw, not supplied) through each of the holes in the
mounting plate and the mounting surface.
5 Squeeze the top of the mounting arm and attach the
mounting arm to the mounting plate on the vehicle.
6 Attach the vehicle cradle to the mounting arm.
Mounting
arm
CK31 in
vehicle
cradle
Periodically inspect the knob on the mounting arm to make
sure it is still tight. Check the vehicle cradle assembly for any
signs of fatigue, such as cracking, which may develop over
extended use in extreme (vibration) environments. Replace any
damaged hardware immediately to ensure continued, safe
operation.
Using the Vehicle Cradle
You can easily insert and remove the CK31 from the vehicle
cradle.
To insert the CK31 in the vehicle cradle
1 Insert the CK31 into the vehicle cradle as shown next.
CK31
Vehicle cradle
Mounting arm
2 Push the retaining bracket toward the top of the CK31 until
it clicks into place.
Retaining
bracket
3 Tighten the knob to secure the cradle position on the arm.
4 Use the knob on the mounting arm to adjust the CK31 to
the best-possible viewing angle for the vehicle operator.
