Interstate PWR 7010 - Connecting Clamps to Battery Terminals

Jump Starter Pack Device Operation Instructions
ACR/QA 1829Nov
Section-B) Jump Starter Pack Device Use Continued:
Example of (-) Negative Ground, Under-hood Battery Post/Port Location

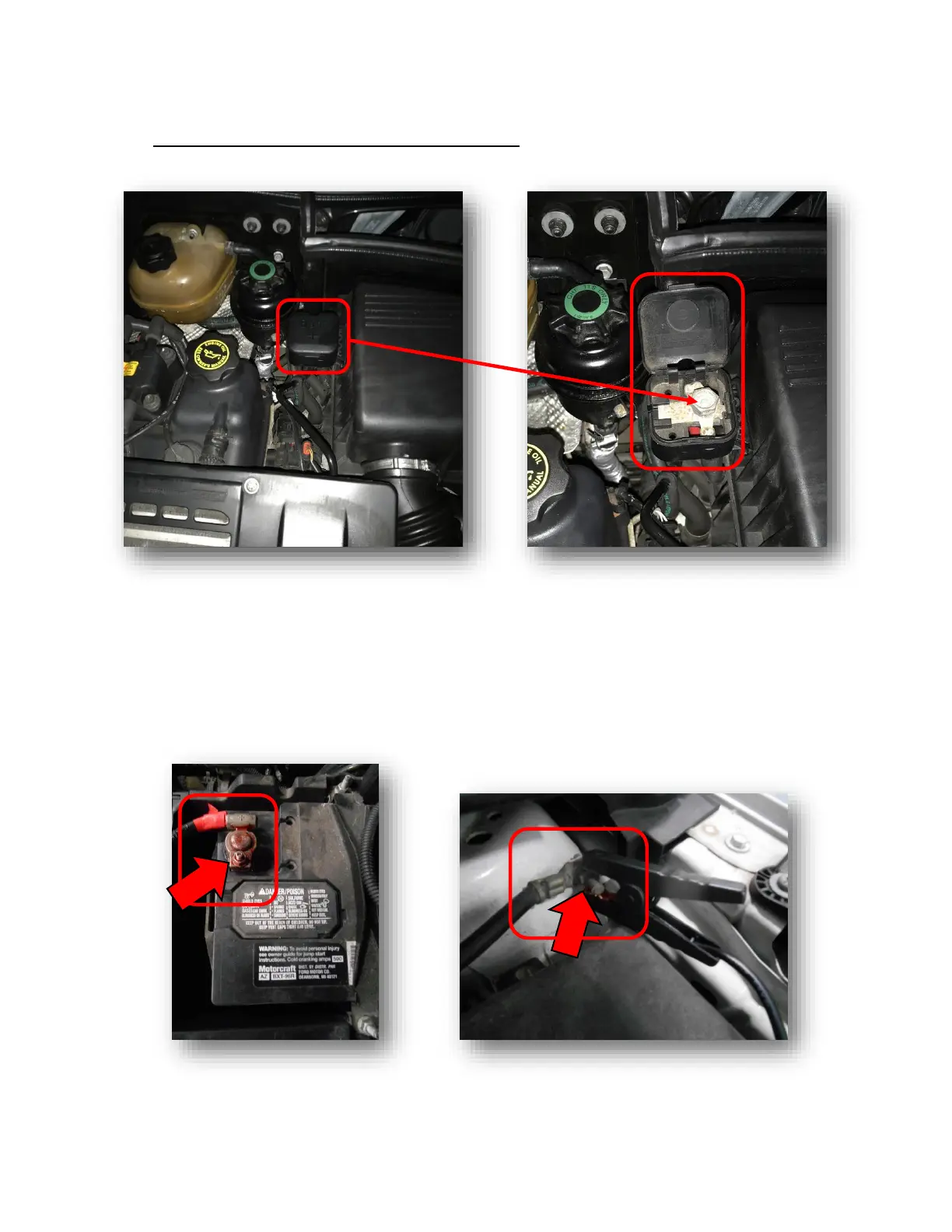

Step #4) Connect the Red Battery Clamp to the positive (+) battery terminal and the Black Battery Clamp to the
negative (-) cable grounded to the vehicles chassis.
Connect to the
Negative (-) Ground
Lug or chassis ground
of the vehicle
Connect to
Positive (+)
Terminal of
the vehicle
DETAIL of
Under
Hood (-)
Negative
Ground
Post/Plug
Under
Hood (-)
Negative
Ground
Post/Plug
