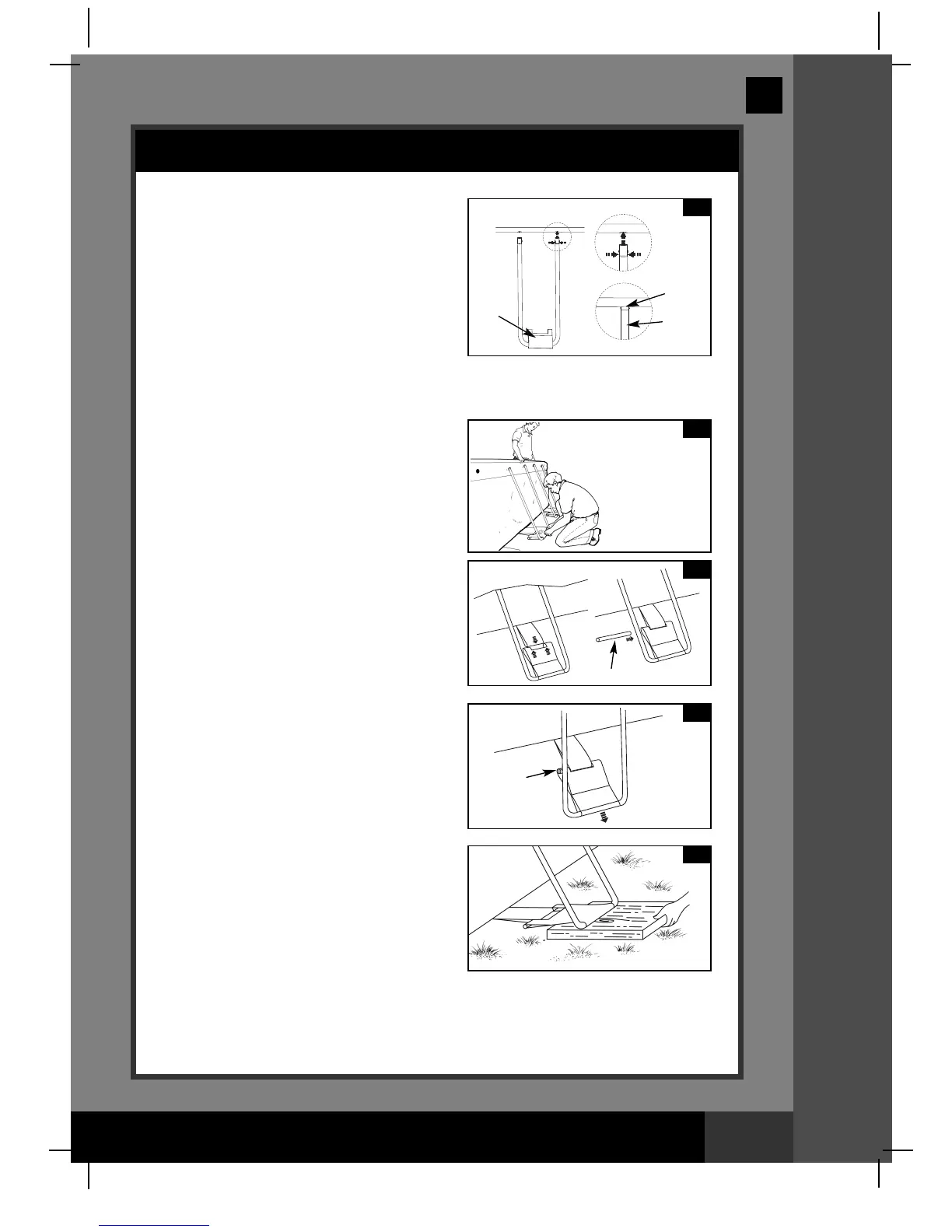

5. The tops of the U-shaped side supports
have a double button spring loaded
clip (10) that is factory pre-installed. Insert
the side supports into the “A-B-C & D-E-F”
beam holes by squeezing the bottom button
inward with your fingers.
Squeezing this bottom button will allow the
support to enter the beam. Once the
U-support is inside the beam release the
finger pressure allowing the support to
“SNAP” into place. Repeat this procedure
for all U-shaped side supports (see
drawing 5).
6. With one person standing inside the pool,
raise one corner; insert the connecting
rod (12) into the overlapping openings, to
connect the liner straps to the restrainer
straps. Repeat the operation in the other
corners and then on the sides (see
drawings 6.1 & 6.2).
7. Pull the bottoms of the side supports out
away from the liner to make the straps taut.
Repeat for all locations (see drawing 7).
8. If the ground is not concrete (asphalt, lawn
or earth) you must place a piece of
pressure-treated wood, size 15” x 15” x 1.2”,
under each leg and flush with the ground.
The U-shaped side supports must be
placed in the center of the pressure-treated
wood and with the wood grain perpendicular
to the support leg (see drawing 8).
5
13
11
10
6.1
6.2
LINER
LINER
12
7
12
8
