SAVE THESE INSTRUCTIONS
Page 9
(123IO) SMALL RECTANGULAR METAL FRAME POOL ENGLISH 7.5” X 10.5” PANTONE 295U 09/29/2006
SSEETT--UUPP IINNSSTTRRUUCCTTIIOONNSS
POOL SET UP (continued)
4
6
5

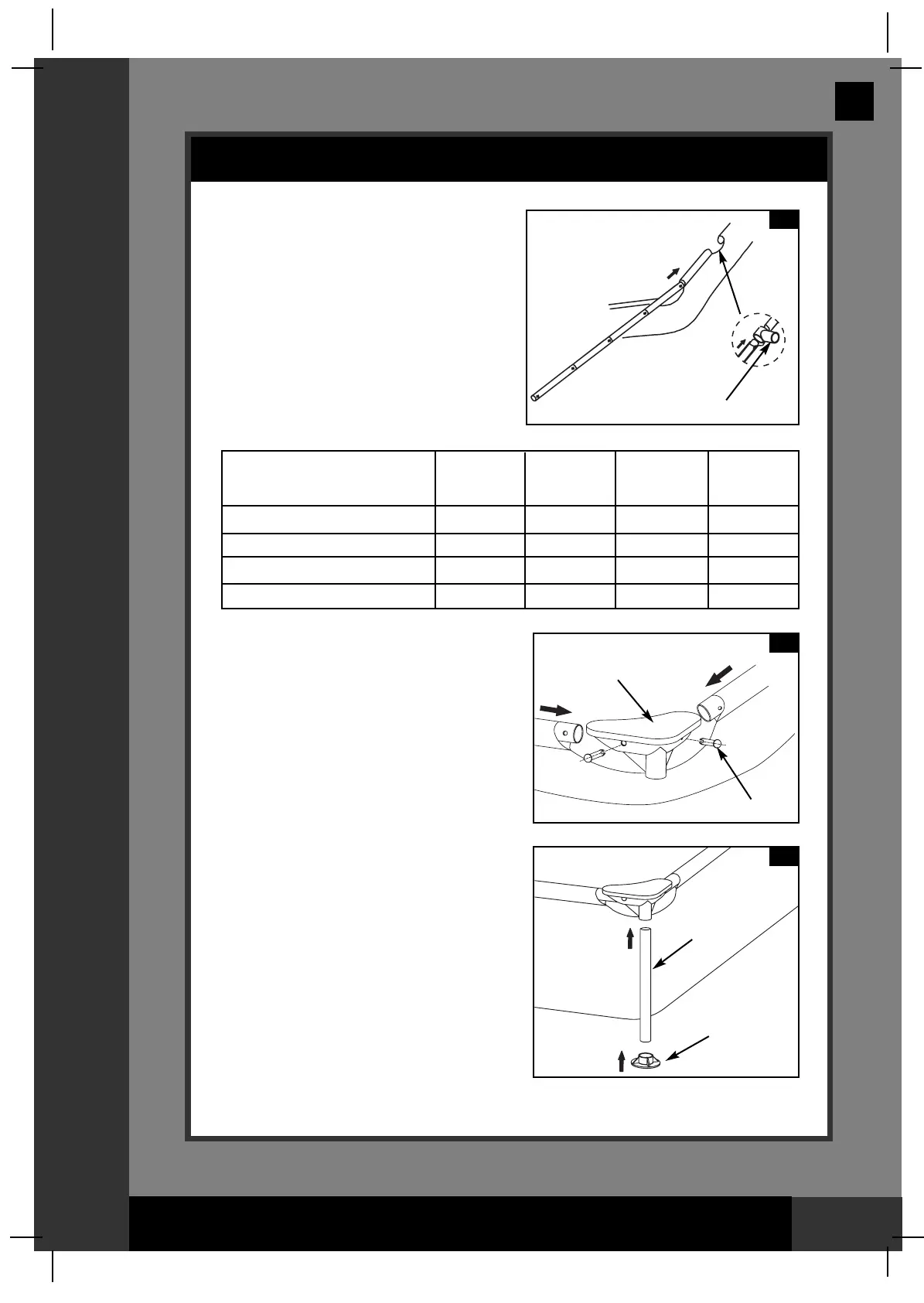

3. Starting with one side, slide the “A” beams
first into the sleeve openings located in
each corner. Continue with “B” beam
snapping into the “A” beam. Insert the
beam through the “T” joint at each liner
sleeve middle opening (see drawing 3).
Continue inserting all “A-B & C-D” beams
into the sleeve openings. Start the "C-D"
combination for pool's short sides by
inserting the "C" beam first into the
opening. The combinations for beams are
different for different sizes of pools, see
the chart below for detail.
4. Connect the corner joints (5) to the
horizontal beams at 4 corners. Secure
the joints with the pins (6) by inserting
them into the pre-drilled holes (see
drawing 4).
5. Connect the vertical corner legs (10) to
the corner top rail joints (5) (see
drawings 5 & 6).
6. Attached the leg's end cap (11) to the
bottom of the vertical legs (10) (see
drawings 5 & 6).
.
3
(A)
(A)
(A)
(B)
7
5&6
10
11
Size of Pool
86-5/8" x 59" x 23-5/8" (220cm x 150cm x 60cm)
102-1/2" x 63" x 25-5/8" (260cm x 160cm x 65cm)
118" x 78-3/4" x 29-1/2" (300cm x 200cm x 75cm)
177-1/4" x 86-5/8" x 33-1/2" (450cm x 220cm x 85cm)
No. of "Inverted T"
sides support leg
on longer side
2
2
2
3
No. of "Inverted T"
sides support Leg
on shorter side
1
1
1
1
Horizontal Beam
Combinations
on longer side
A-A-B
A-A-B
A-A-B
A-A-A-B
Horizontal Beam
Combinations
on shorter side
C-D
C-D
C-D
C-D
