Page 5

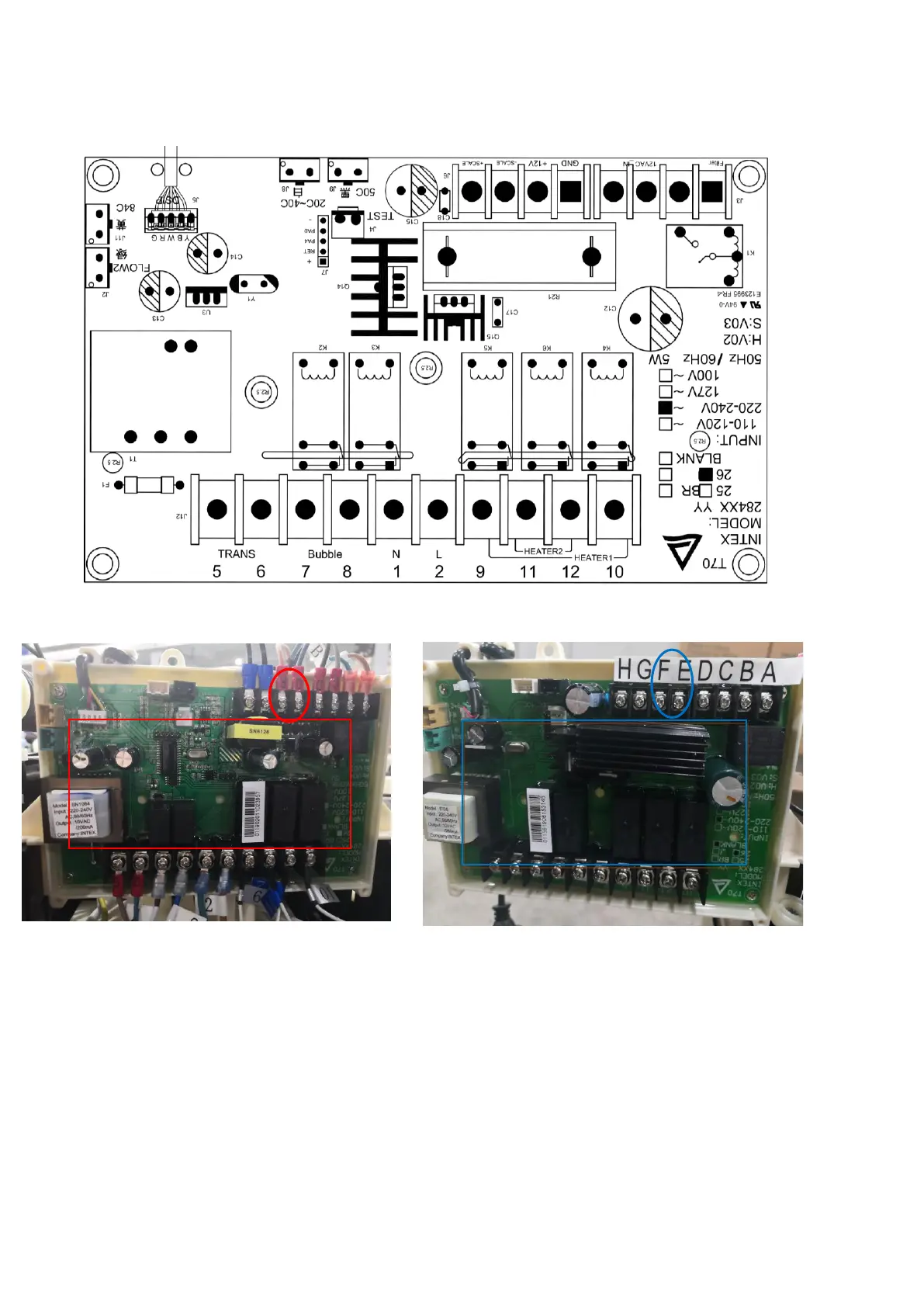

PCB Schematic
New Old
Remark: From 2020-11-03, Rectifier bridge built in Main circuit board#13052, terminal block E&F change to
Q&R. The PCB layout has been totally different with before.
