Intex 28685 User Manual

269
IO
(269IO) SOLAR HEATER MAT ENGLISH 4.875” X 7.25” 08/19/2016

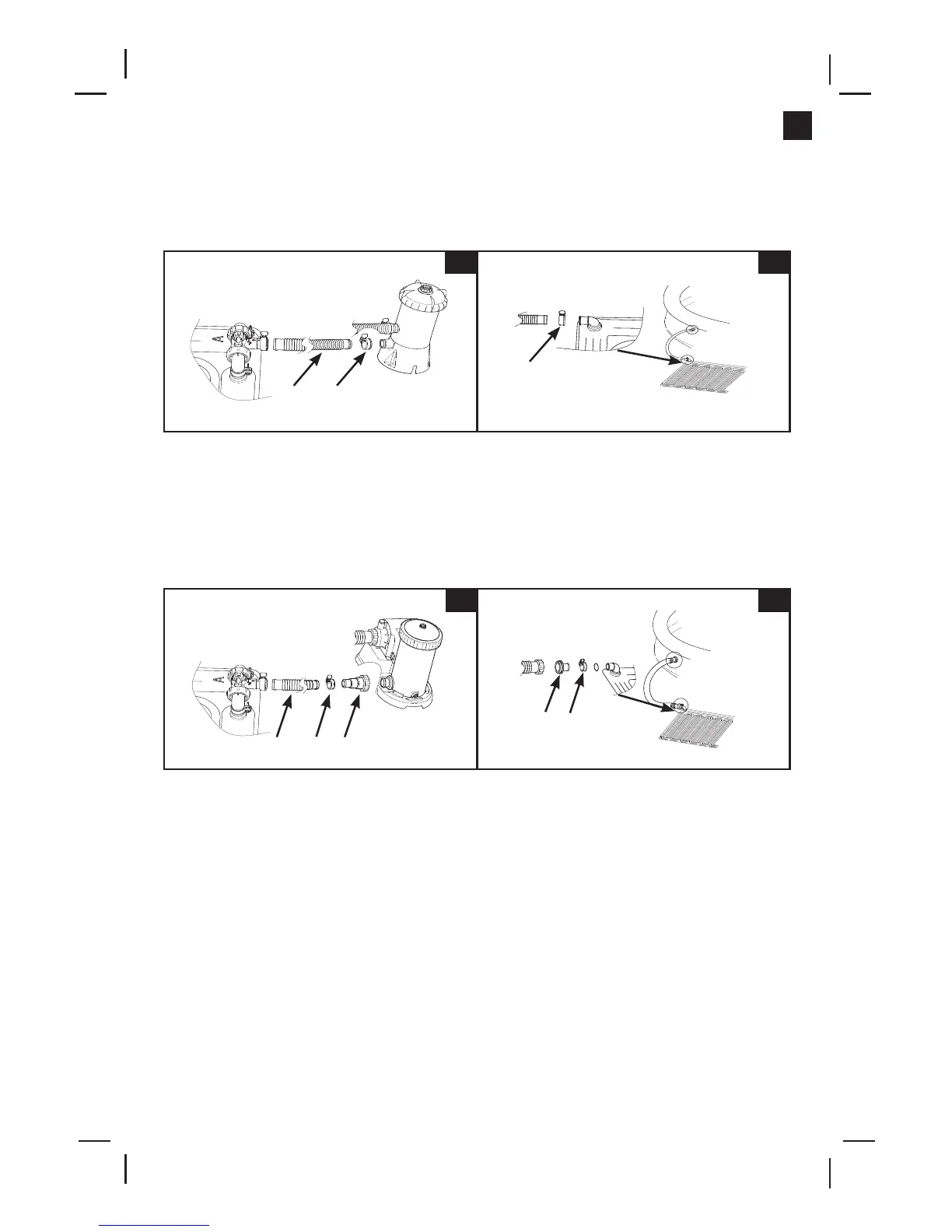

Connection to 1-1/4”(32 mm) hose with clamp
1.
Disconnect the pool water return hose from the pump outlet.
2.
Connect the other end of the short hose
(6)
to the pump outlet. Secure the hose with hose
clamps
(5)
. See Fig 4.
3.
Connect the other end of the pool water return hose to the solar heater mat outlet. Secure
the hose with hose clamp
(5)
. See Fig 5. Make sure all the hose clamps are securely
tightened.
Connection to 1-1/2”(38 mm) hose with adaptor
1.
Disconnect the pool water return hose from the pump outlet.
2.
Connect the adaptor A
(7)
to the pump outlet and attach the other end of the short hose
(6)
to the adaptor A. Secure the hose with hose clamp
(5)
. See Fig 6.
3.
Attach the adaptor B
(8)
to the solar heater mat outlet; then connect the other end of the
pool water return hose to the adaptor B
(8)
. Ensure the hose clamp
(5)
and hose nuts are
securely tightened. See Fig 7.
6
5
4
5
5
6
5
6
7
7
5
8
SAVE THESE INSTRUCTIONS
Page 3

Intex 28685 Specifications

General

Brand	Intex
Model	28685
Category	Swimming Pool Heater
Language	English
