SETUP INSTRUCTIONS
SETUP INSTRUCTIONS
1. Assemble the above-ground-pool (AGP) and its filter pump according to their
installation instructions.
2. Take the Saltwater System and its accessories out of the packaging.
3. Place the Saltwater System in line after the filter pump.
4. Connect the connector hose (8) to the Saltwater System inlet.
Connecting the system to pump and pool with 1-1/4” (32mm)
connections/hoses:
The saltwater system features 1-1/2” (38mm) connections. It is accordingly
supplied with adaptors A (1) and B (9) for connecting to the small 1-1/4” (32mm)
diameter connections/hoses. Install as follows:

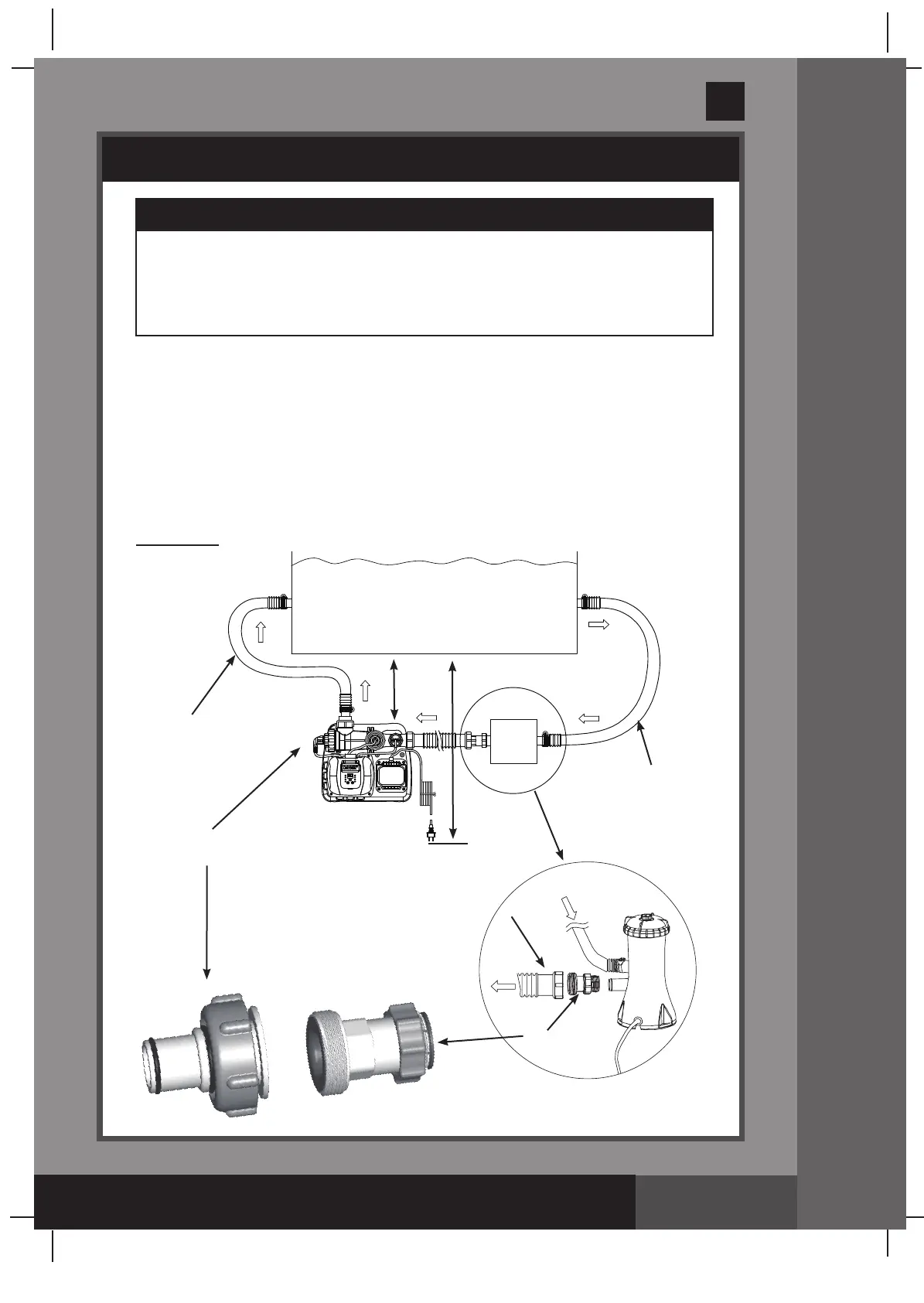

Drawing #1
IMPORTANT
• TheSaltwaterSystemrequiresaseparatefilterpump[700~4000gph 
 (2650~15140lph)]todrivethewaterandfunctionproperly.
• TheSaltwaterSystemmustbeinstalledasthelastpieceofpool  
equipment in the water return line to the pool as displayed in Drawing
#1. This location extends the life of the titanium plates.
WATER TO
POOL
WATER FROM
POOL
FILTER
PUMP
SWIMMING POOL
ID 1-1/4” (32mm)
HOSE
ID 1-1/4”
(32mm) HOSE
SALTWATER
SYSTEM
9
8
1
3.5M
2M
