4.
In a clockwise motion screw filter housing nut
(17)
onto the motor water inlet
(see

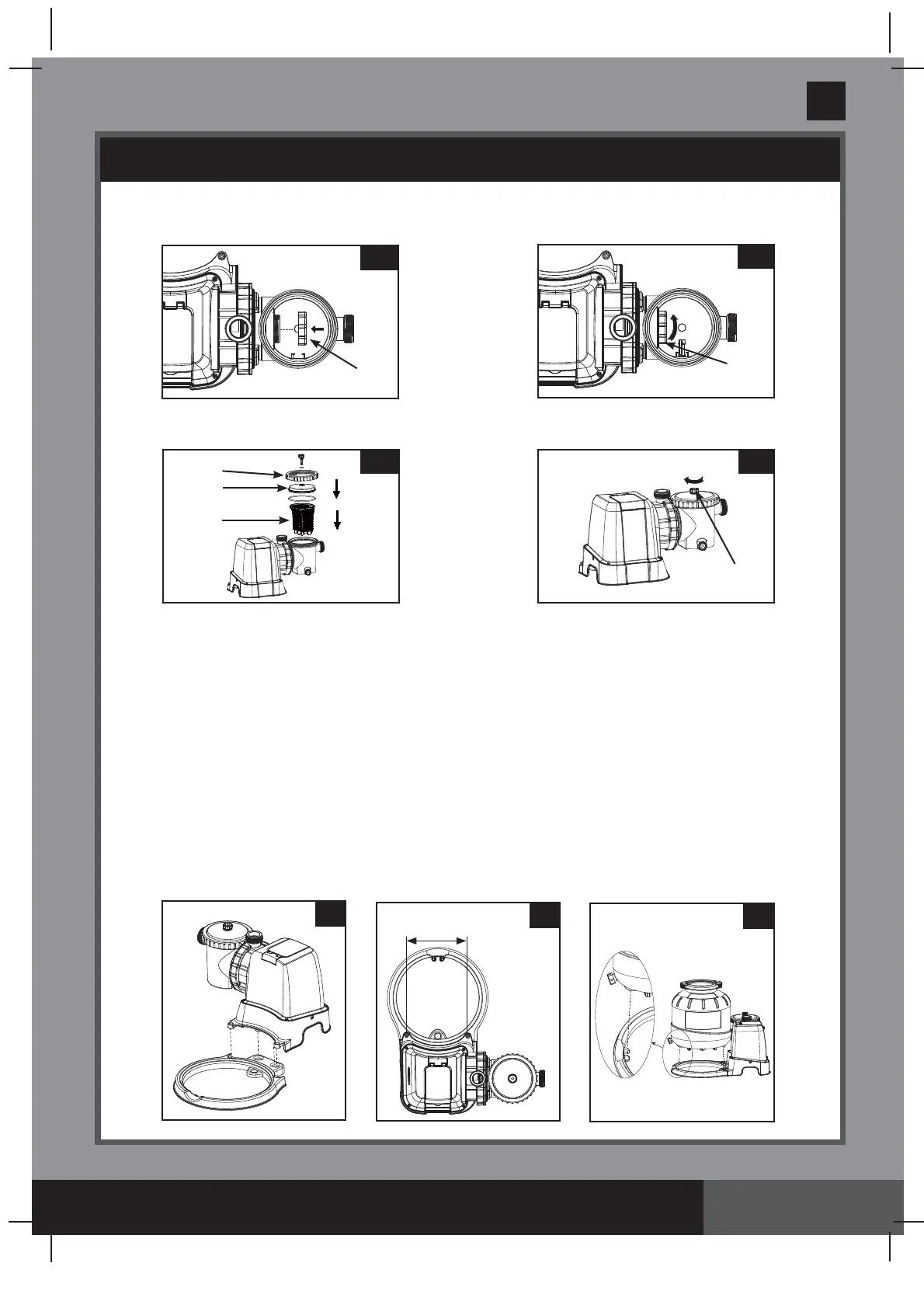

drawings 12.1 & 12.2)
.
5.
Replace the basket
(16)
and leaf trap cover
(35)
back to the pre-filter housing
(see
drawings 13.1 & 13.2)
.
SETUP INSTRUCTIONS
(
continued
)
Sand tank installation:
1.
Place the tank support base at the selected location.
2.
Place the tank on the tank support base
(see drawing 14.1)
.
3.
Connect the motor pre-filtering assembly unit to the tank support base
(see drawing 14.2)
.
NOTE: Ensure the pre-filter housing water inlet hose connection is facing towards the pool.
IMPORTANT: Some countries, especially in the European community, require the
product to be secured to the ground or to a base in a permanent upright position.
Check your local authorities to determine if there is a regulation in your area
regarding above-the-ground swimming pool filter-pumps. If yes, then the product
can be mounted to a platform using the two holes located in the base.
See drawing 14.3.
The product can be mounted on a cement base or onto a wooden platform to
prevent accidental falling over.
• The mounting holes are 6.4 mm in diameter and spaced 210 mm for model
SF80220RC-2 (spaced 224 mm for model SF70220RC-2 & SF60220RC-2) apart.
• Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
13.1 13.2
12.1
17
12.2
17
14
16
35
19
14.1
14.2
14.3
Model SF80220RC-2: 210 mm
Model SF70220RC-2 & 60220RC-2: 224 mm
