OPENING WALKERS (FIGURE 1)
NOTE: Refer to the FOLDING/ASSEMBLY WARNINGS in the SAFETY SUMMARY of
this manual.
1. To OPEN the walker, pivot the left and right side frames outward.
2. Perform one (1) of the following:
SINGLE-RELEASE WALKER (6281) - Grip the side frames and
swing them fully outward while listening for an audible "click" which
indicates that the walker is fully opened and ready for test.

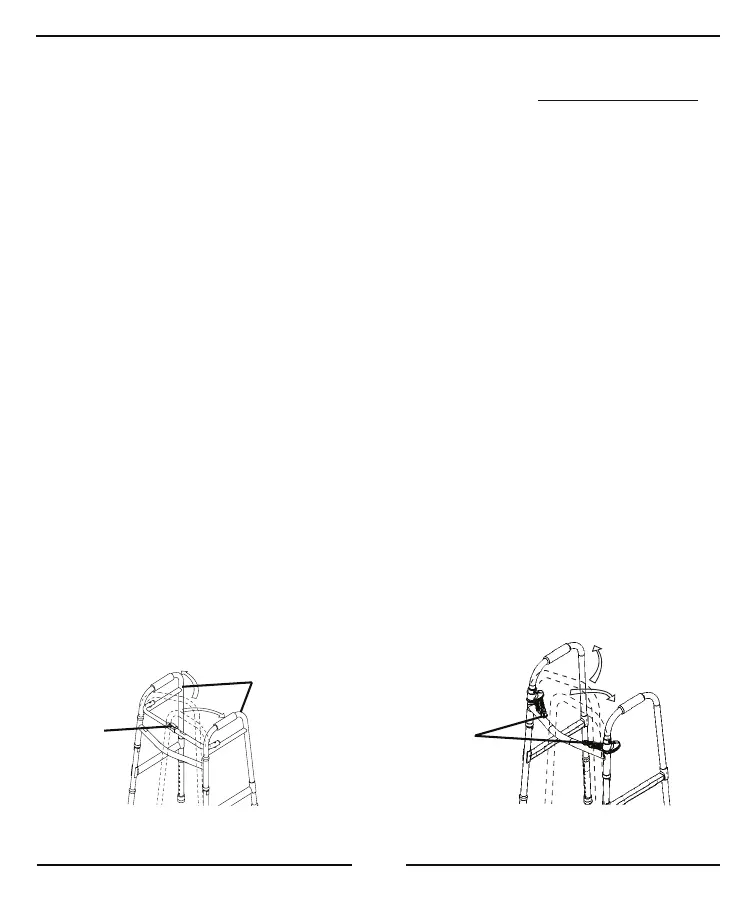

Refer to DETAIL "A" in FIGURE 1.
NOTE: The palm release button on the pivot slide tube will pop up when the click is heard.
BLUE-RELEASE WALKER (6241) - Swing the side frames outward
until an audible "click" is heard. Refer to DETAIL "B" in FIGURE 1.
PADDLE WALKER (6291) - Swing the side frames outward until
the dual-release paddles activate (engage upward).
Refer to DETAIL "C" in FIGURE 1.
3. Before using, test walker by grasping the side frames and, with some force,
attempt to fold them inward. See DETAIL "C" in FIGURE 1. The walker
will remain locked in the OPEN position if it is engaged properly. Test
Walker side frames before using. See DETAIL "D" in FIGURE 1.
Palm
Release
Button
(“click”)
Side Frames
SINGLE-RELEASE
WALKER (6281)
DETAIL "A" DETAIL "B"
Dual-Release
Mechanisms
BLUE-RELEASE
WALKER (6241)
