FIGURE 1 - OPENING WALKERS
DETAIL "C"

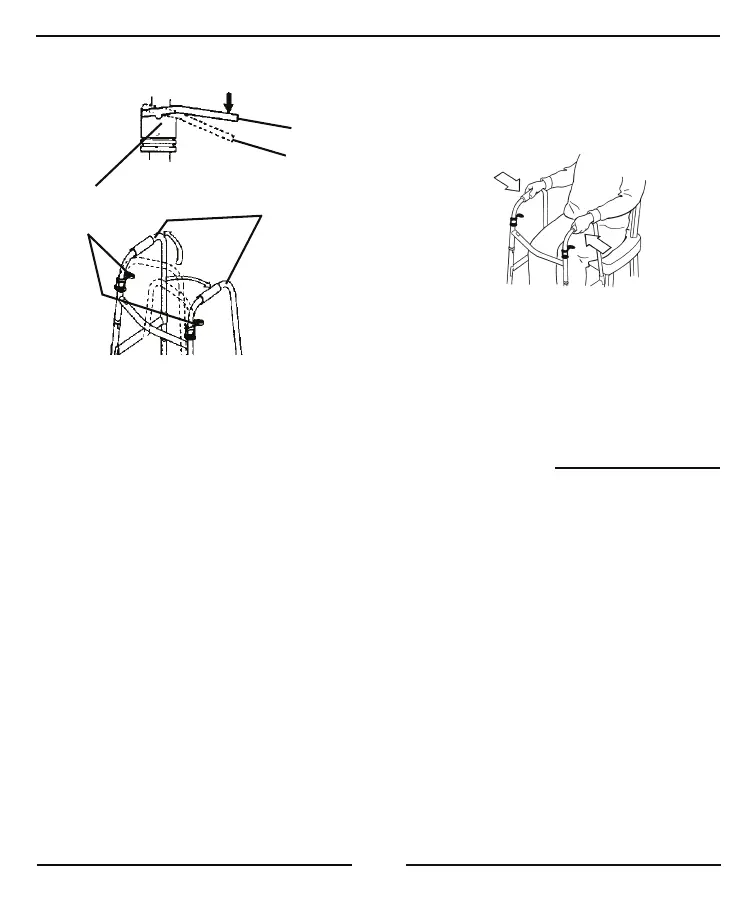

FOLDING WALKERS (FIGURE 2)
NOTE: Refer to the FOLDING/ASSEMBLY WARNINGS in the SAFETY SUMMARY
of this instruction sheet.
1. Perform one (1) of the following to fold the walker:
SINGLE-RELEASE WALKER (6281) -
A. Press DOWN on the palm release button located in the center
of the pivot slide tube. Refer to DETAIL "A" in FIGURE 2.
B. Pivot the right and left side frames inward until they meet the
front crossbrace.
BLUE-RELEASE WALKER (6241)
A. Depress either release mechanism and pivot the corresponding
side frame inward toward the front crossbrace. Refer to
DETAIL "B" in FIGURE 2.
B. Repeat the same procedure for the remaining side frame.
