7 Operating Console

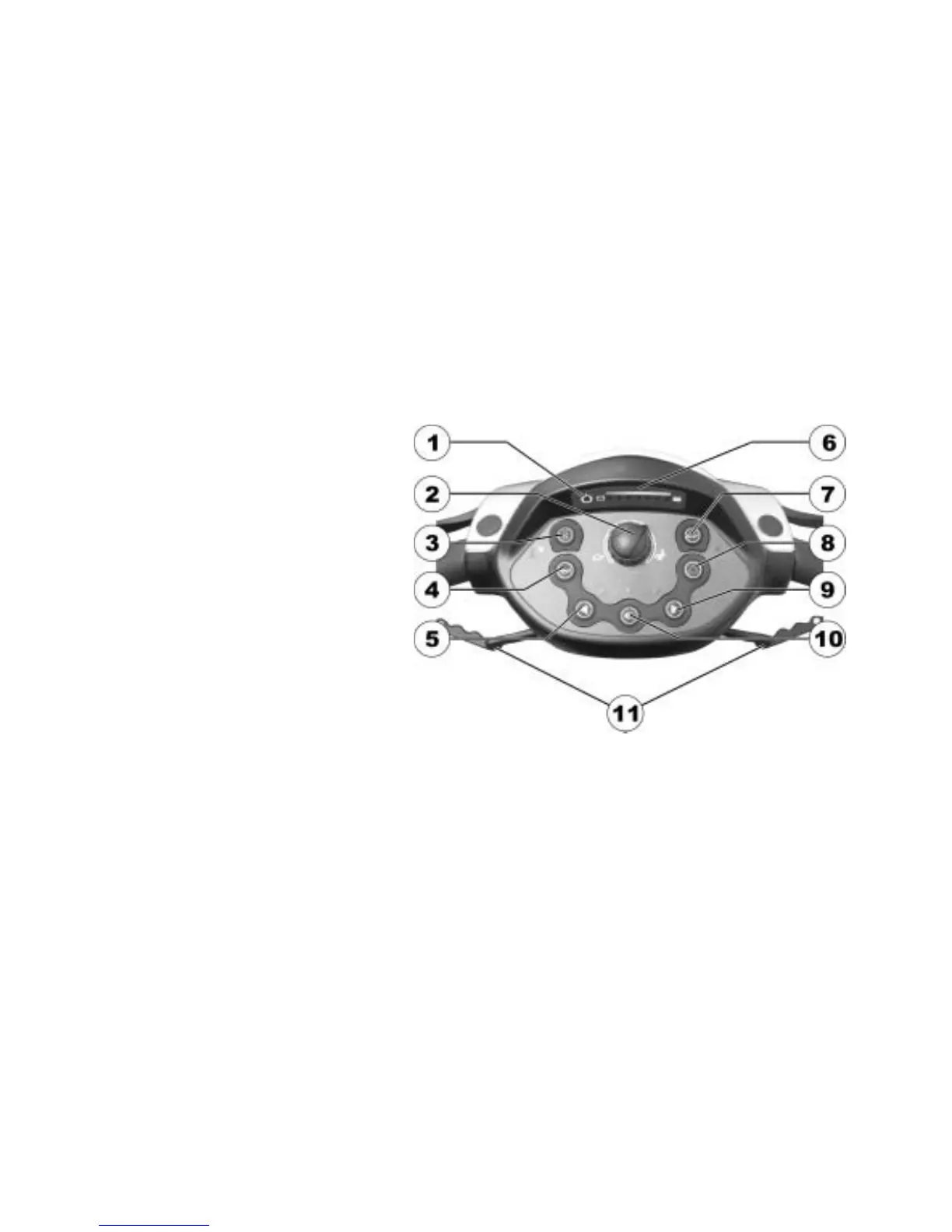

7.1 Operating Console Arrangement
1) Status display
2) Speed controller
3) Switching speed reduction
during bend travel on and off
4) Horn
5) Left-hand direction indicator
(switches itself off automatically
after 30 seconds)
6) Battery charge display
7) Speed reduction
8) Warning blinker
9) Right-hand direction indicator
(switches itself off automatically
after 30 seconds)
10) Lighting
11) Drive lever
