SAFETY AND OPERATING MANUAL
22
202093 ROTARY HAMMER 1500W

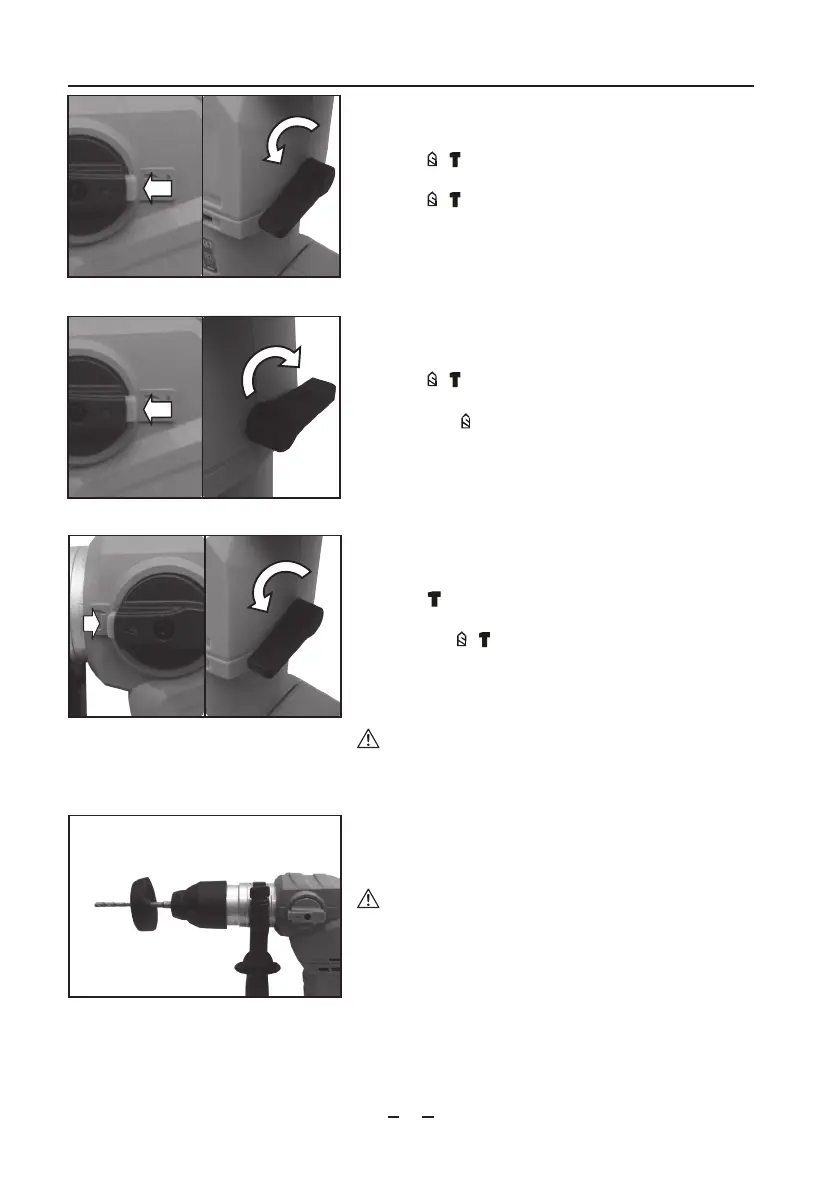

4. HAMMER DRILL FUNCTION (See Fig. D1, D2)
1. Adjust the hammer or chisel action selector to posi-
tion “ “.(See Fig.D1)
2. Adjust the hammer or drilling action selector to posi-
tion “ “ .(See Fig. D2)
3. You are now set up for hammer drilling into masonry.
NOTE: Press the selector switch lock button before
adjusting the dial selector everytime.
5. DRILLING FUNCTION (See Fig. E1, E2)
1. Adjust the hammer or chisel action selector to posi-
tion “ “ .(See Fig. E1)
2. Adjust the hammer and drilling action selector to
position “ “.(See Fig. E2)
3. You are now set up for drilling function.
NOTE: Press the selector switch lock button before
adjusting the dial selector everytime.
6. CHISEL FUNCTION (See Fig. F1, F2)
1. Adjust the hammer and chisel action selector to posi-
tion " " .(See Fig. F1)
2. Adjust the hammer and drilling action selector to
position " ".(See Fig.F2)
3. You are now set up for chisel work using chisel ac-
tion.
NOTE: Press the selector switch lock button before
adjusting the dial selector everytime.
WARNING: You must make sure that the selector
switch is positively locked in chisel mode position. If not,
it could cause a hazard.
7. DUST COVER (See Fig. G)
Before drilling, fit the dust cover over the drill bit.
CAUTION: Always wear eye protection with this tool.
