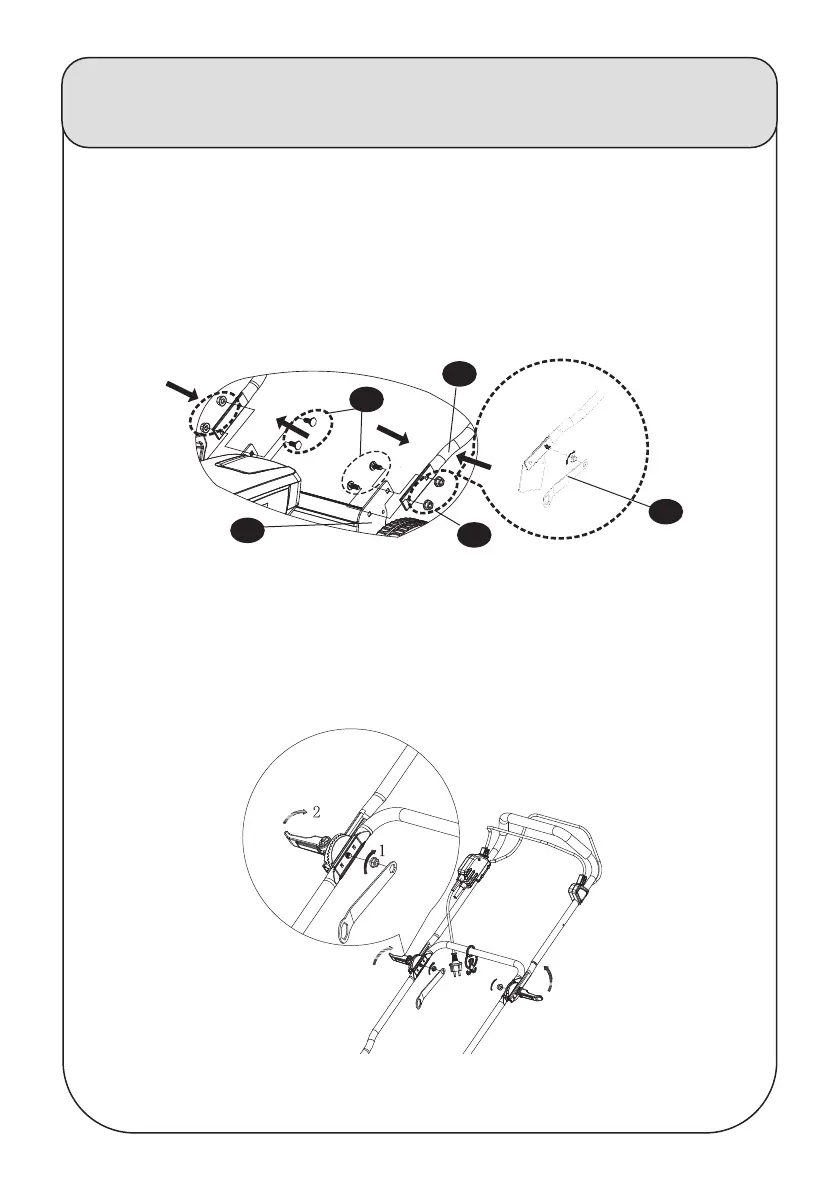

1. Handle assembly
- Each end of the lower handle (F) has two holes. Align these to the corresponding
holes on the chassis (A), with the handle touching the outside. Slide the bolts (H)
through the holes from the center.
- Use the nuts (I) to secure the connection. Tighten the connection with the provided
wrench (L). Attach the bolts and secure the lower handle with the locking nuts by
oered wrench.
- Align the sprockets on lower handle and upper handle. Note the grip is facing up,
the switch box (1) is on the right. For easy folding, guide all cables above (not
below) the lower handle’s vertical bar.
- Use the quick release locks (G) to t the handles parts together. Choose one of
three positions for short, medium, or tall users. Secure the locks tightly.
Assembling the mower
H
F
A
I
L
