INSTALLATION INSTRUCTIONS

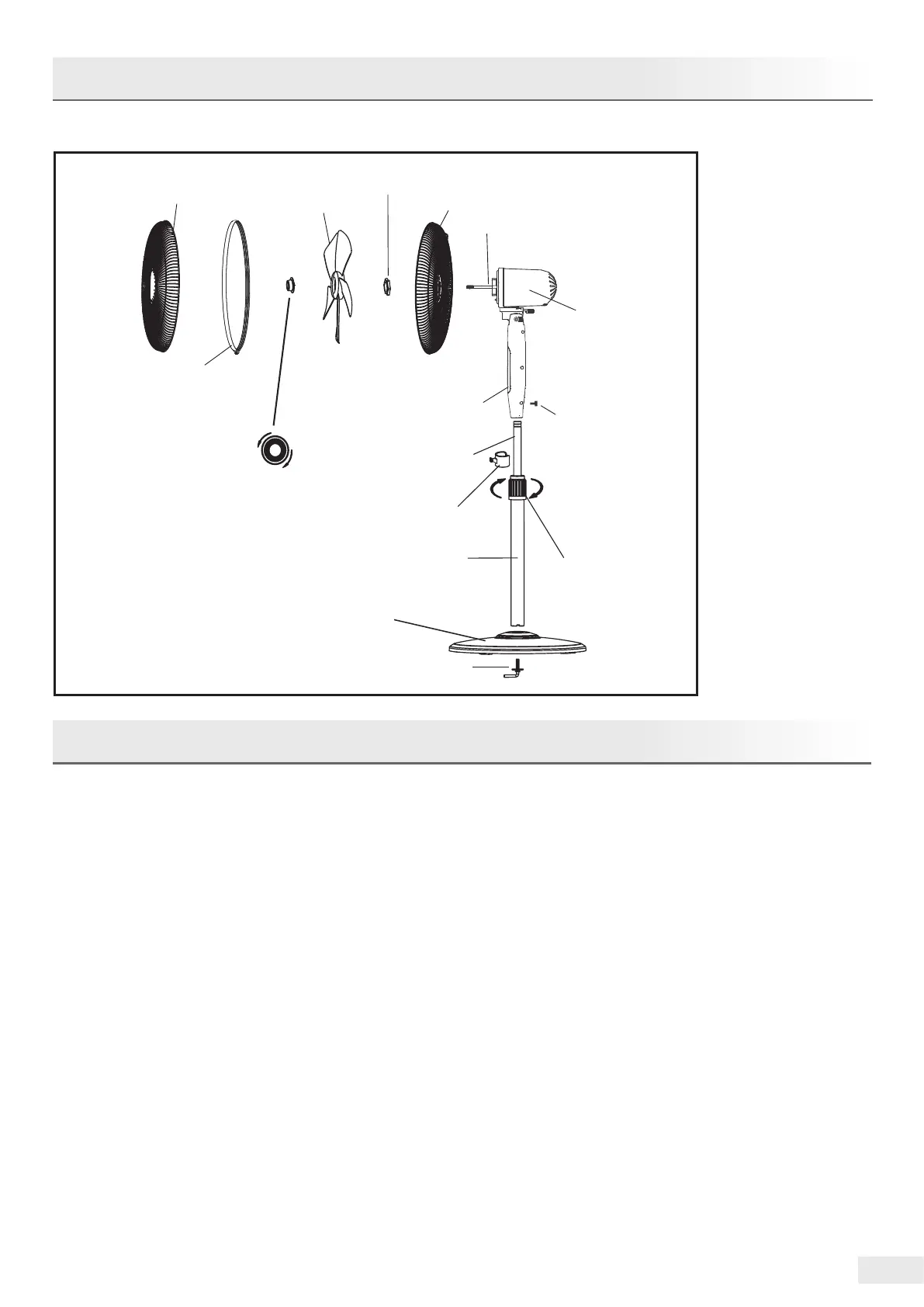

■ Name of components
Note: All the pictures in this manual are for
explanation purpose only. Any discrepancy
between the real object and the illustration
in the drawing shall be subject to the real
subject.
Front grill
Fan blade
Plastic nut
Tighten
Spinner
Loosen
Rear grill
Internal Pole
Extension Pole
Motor shaft
Motor housing
Circlip
Thumb
screw
Fasten
Chassis
Height
adjustment ring
7-shape Bolt
Push button
Remote Control Hook
ASSEMBLY OF CHASSIS & COLUMN UNIT
1. Unscrew the 7-shape Bolt from the Extension Pole (Fig.1).
2. Insert the extension pole into the chassis and tighten the 7-shape Bolt (Fig.2).
3. From the extension pole loosen the height adjustment ring and adjust the internal pole to the
desired height. (Fig.3)
(Note: If you can’t nd the internal pole, check if it is housed inside the extension pole. You can
pull it out from the extension pole.)
4. To attach the motor housing section to the internal pole, loosen the thumb screw on the
bottom of the motor housing section. Place the motor housing section on the internal pole and
tighten the thumb screw in alignment with the groove on the internal pole. (Fig.4)
CAUTION: Height adjustment ring must be fully fastened before the assembly of the motor
housing section to the internal pole.
5. Usage of the remote control hook: Clip the hook to the internal pole along with the opening,
with the straight face of the accessory facing up. The hook can be moved up and down along
the pole (Fig.5). The hook hole of the remote control may be linked to the hook for storage
when not in use. (Fig.6)
