Invicta 700 - User and Installation Manual; EN 13229 Specifications; Construction Specifications

Chimney 700 DO counterweight
Référence : 6876 44
XD – 13/02/2018
page 2/7
Specific user and installation manual
Please read this additional specific manual and the general manual also provided with the appliance carefully.
Specifications as per EN 13229:
Construction specifications:
Rated power
14 kW
Efficiency
70 %
CO Rate%
0.26 %
Smoke temperature
290 °C
Running mode
Continuous
Recommended fuel
Wood / 50 cm logs
Smoke mass flow
20.5 g/s
Distance from adjacent combustible materials: Laterally: 8.0 cm (including 5 cm of insulation)
At the back: 13.0 cm (including 5 cm of
insulation)
(insulation specifications: 50 mm thickness of rock wool, max conductivity 0.04W/m°C
with aluminium side facing the insert)
Appliance weight
162 kg
Connection to the chimney flue using the nozzle
on the top of the appliance
diameter 200 mm
working width to load logs 56 cm - Front loading

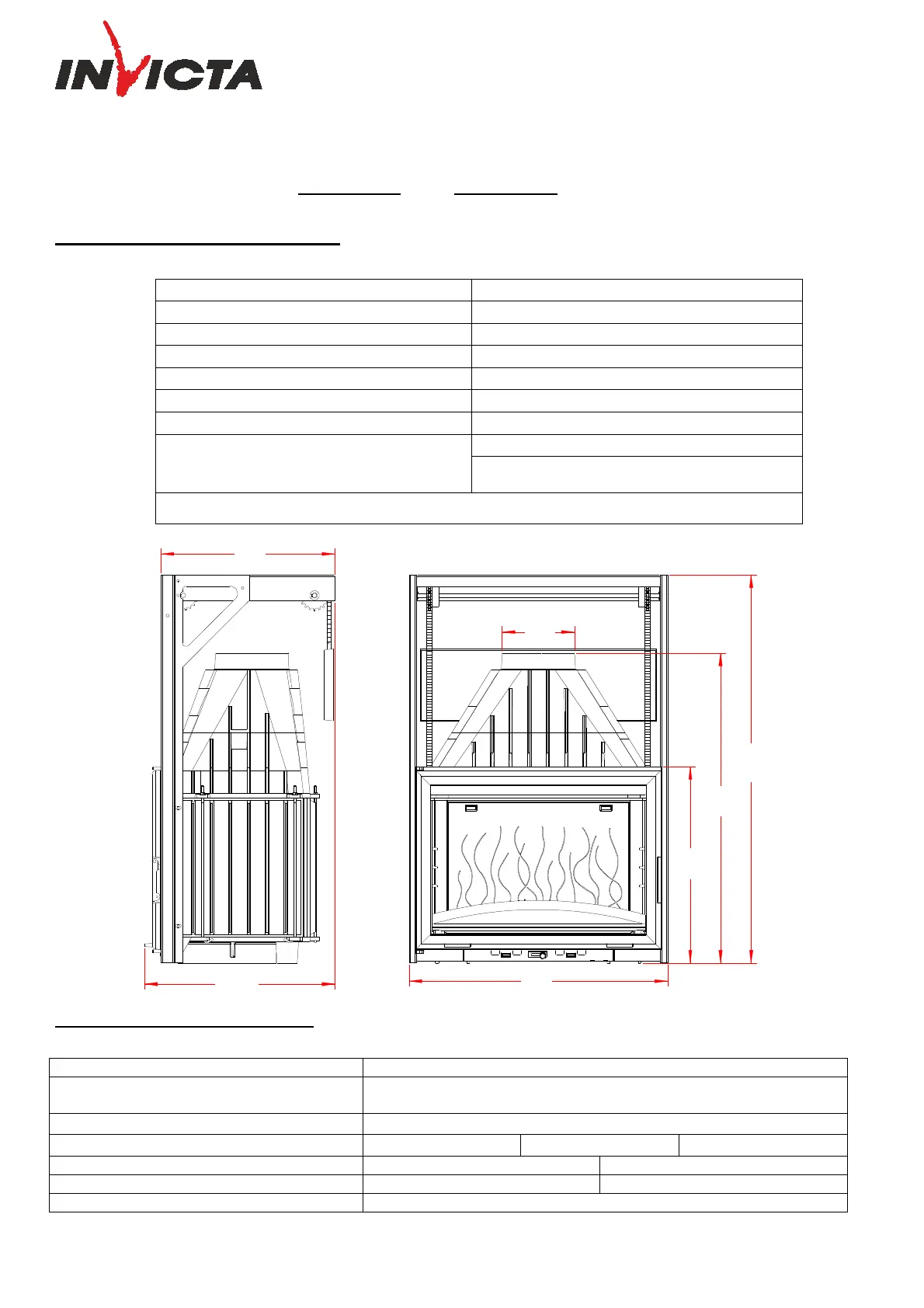

Dimensions h 1050 len 700 depth 514.5 mm
Door dimensions h 485 len 664
Window dimensions h 419 mm len 597 mm
Identification plate riveted behind the ash tray
