Chimney 700 DO counterweight
Référence : 6876 44
XD – 13/02/2018
page 3/7

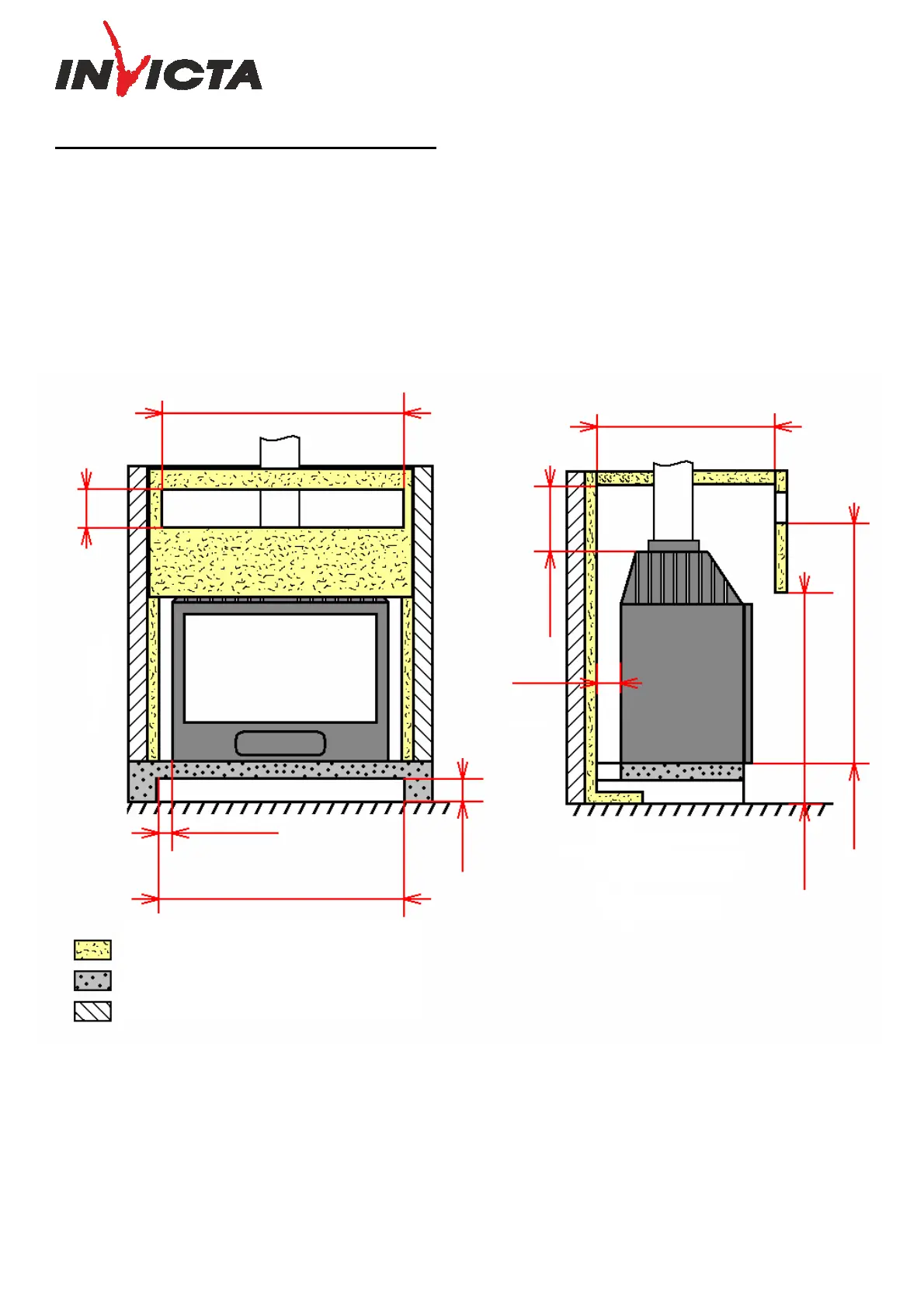

APPLIANCE EMBEDDING INSTRUCTIONS.
To limit the heating of the walls composing the casing of the fireplace to be built to 65K (K = degrees Celsius above room
temperature), and for the appliance to operate properly, the principles shown in the diagram below should be followed.
Respect the minimum embedding and convection air circuit dimensions (size of the intake for the “air to be heated” and “hot air” outlet
size).
The indicated minimum embedding dimensions guarantee access to operating controls, sufficient space for the moving parts, access and
removal of parts that may need to be replaced.
ECO 700
Double counter-
weight opening
700 mm
580 mm
30 mm
540 mm
100 mm
410 mm
500 mm
1100 mm
690 mm
80 mm
50 mm thick rock wool, max conductivity 0.04W/m°C
with aluminium side facing the insert
concrete
fireplace walls and floor
