OBLICA | PHAROS INSTALLATION AND USER MANUAL
MINIMUM CLEARANCE – INTERNAL
2.1 Clearance from non-combustible surfaces
(eg masonry)
100mm minimum clearance is required from fully
non-combustible surfaces.
100
100
Non Combustible
Non Combustible
2.2 Clearance from glass
400mm minimum clearance is required from normal
non-combustible glass.
2.3 Clearance from combustible surfaces
(eg timber joist & concrete)
Clearances may be reduced with the application of
heat shielding to walls in accordance to the
Australian Building Code.
For information on heat shielding please contact our
office on 03 9416 0400 or email info@oblica.com.au.
IMPORTANT:
Frames must also be considered. Timber window
frames must be treated as combustible surfaces
(see 2.3). Aluminium frames can be treated as
non-combustible surfaces (see 2.2).
2. PRE-INSTALLATION (CONTINUED)
Glass (frameless or aluminium frame)
Glass (frameless or aluminium frame)
400mm
400mm
625mm
Combustible
Combustible
625mm
Combustible
Combustible
750mm
750mm

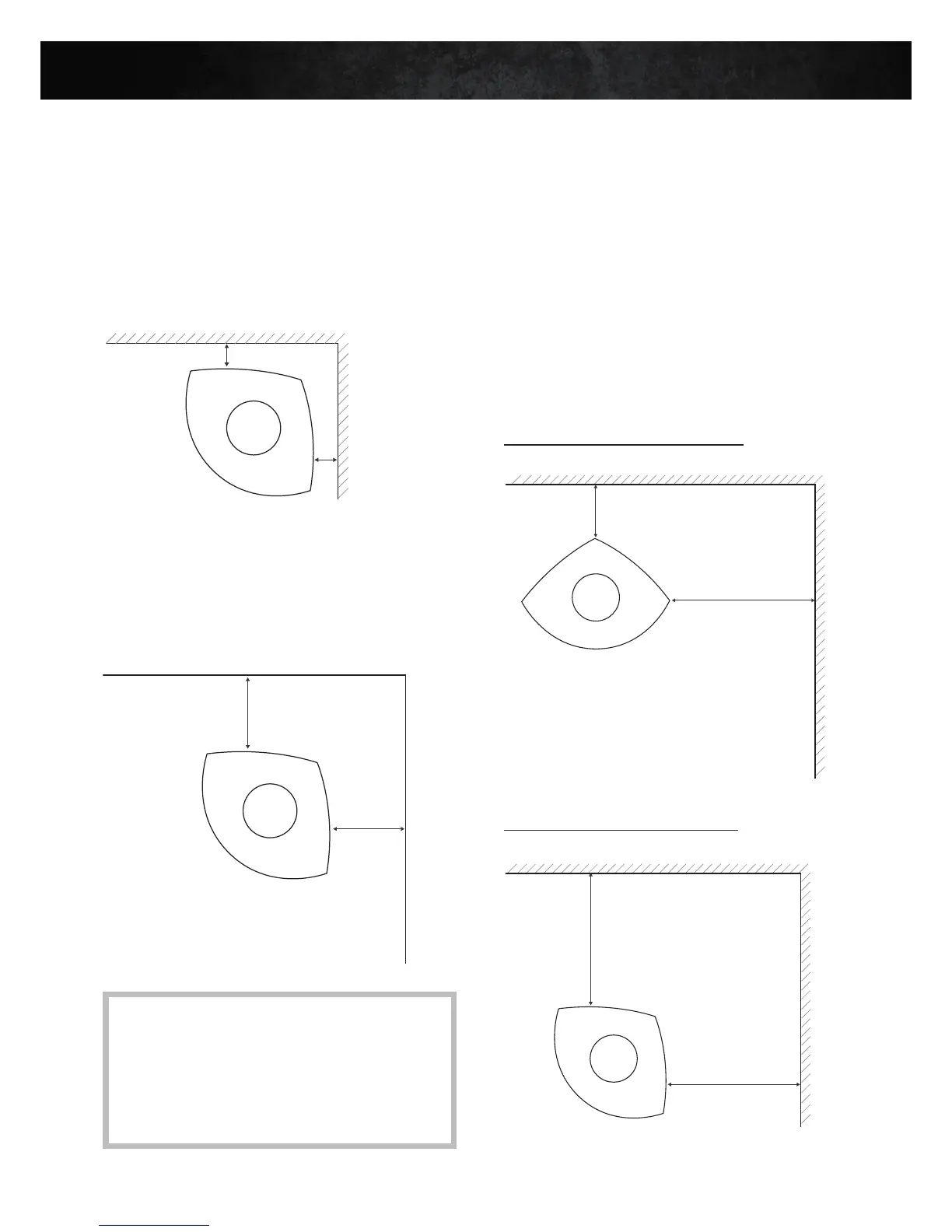

Configuration 1 – Parallel installation
Configuration 2 – Corner installation
