knesser
Model DGI-63D

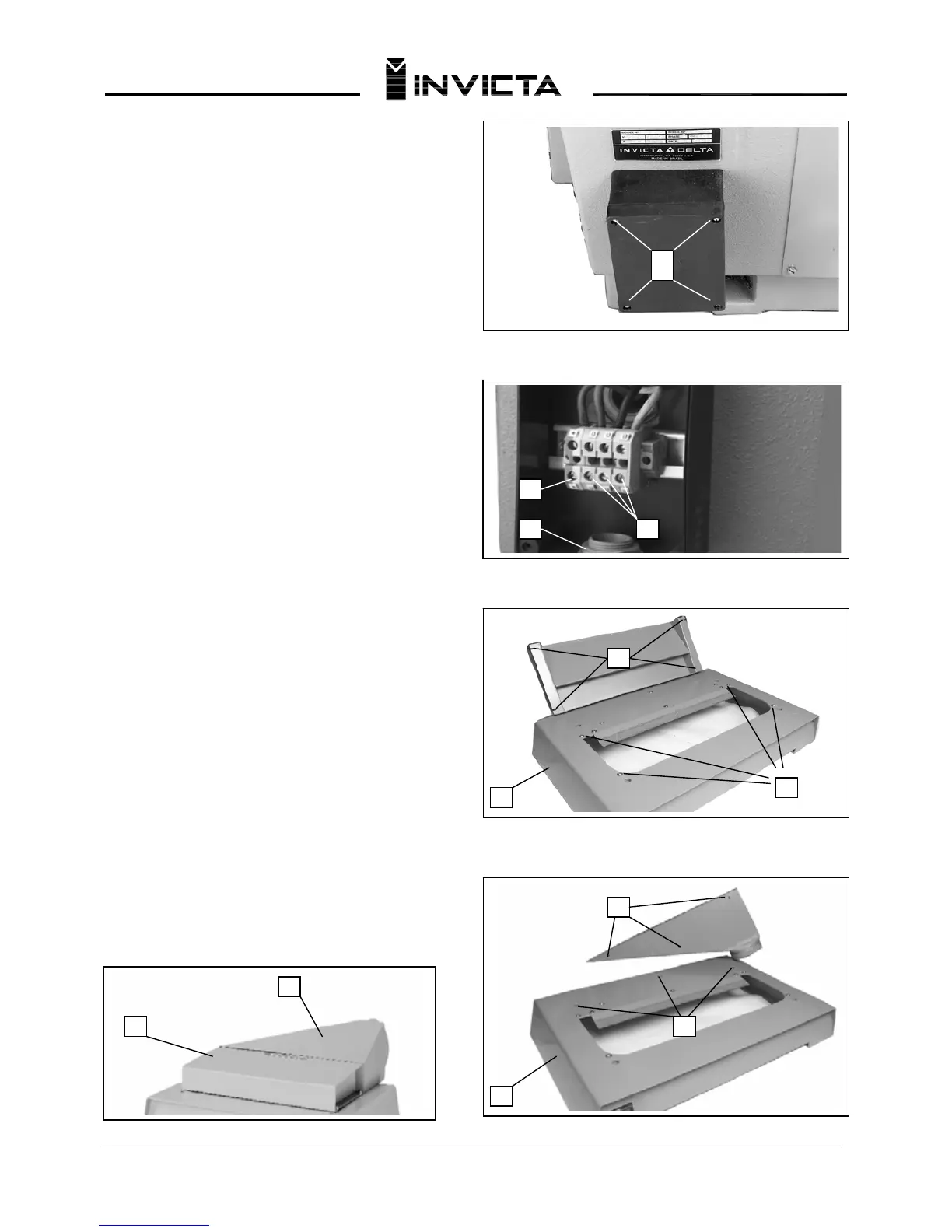

To connect power to your machine, proceed as follows
for either 200-230/460 volts, three phase operation.
07
1. Remove the four screws, one of which is shown at
(A) Fig. 4, and remove cover (B).
2. Insert power line through entrance hole (E) and
con
nect the three po
wer lines to terminals L1, L2 and
L3 (shown at C). The green ground wire should be
connected to the ground terminal (J).
3. Replace cover (B) Fig. 4.
IMPORTANT: If after the m
achine is in operation, the
cutterh
ead turns in the wrong direction, interchange any
two of the three power lines (C) that a
re connected to
terminals L1, L2 and L3.
OVERLOAD PROTECTION
Your planer is provided with overload protection which
will shutoff the motor if the planer is overloaded or if line
voltage falls below safe levels, lithe motor shuts off due
to overloading or low voltage, let the motor cool three to
five minutes.
The overload block supplied with this planer will
autom
atically re
set it
self
and
the machine can be
started again by pushing the start button. If the machine
continually shuts off due to overloading, the cause of
overloading must be corrected. If this happens, it is
recommended you obtain advice from a qualified
electrician.
ASSEMBLING CUTTERHEAD GUARD
AND DUST CHUTE
To assemble the cutterhead guard:
1. WA
RNING DISCONNECT MACHINE FROM
POWER SOURCE
2. Remo
ve four screws and washers at (A) Fig. 6.
3. Place guard on planer cover (C) so that the holes in
the guard (B) align with the holes in the cove
r (C).
4. Replace screws and washer removed in Step 1.
5. Remove three screws (E) Fig. 7 on planer cover (C).
6. Place dust chute on cover so that the holes in the
dust chute (D) align with the holes in the cover (C).
7. Repla
ce the screws and washers removed in Step 5.
8. The cutterhead guard (B) Fig. 7A and dust chute (D)
Fig. 7A shoul
d be arranged as shown in Fig. 7A
Fig. 4
A
Fig. 5
J
Fig. 6
Fig. 7
Fig. 7A
BE
B
