Version 4 Rev 1 Apr 2011 INVOLAR Corporation Ltd. (EUR)
INVOLAR MAC250 Micro-Inverter outside Dimension
Dimension as following Figure 5-1 shows:

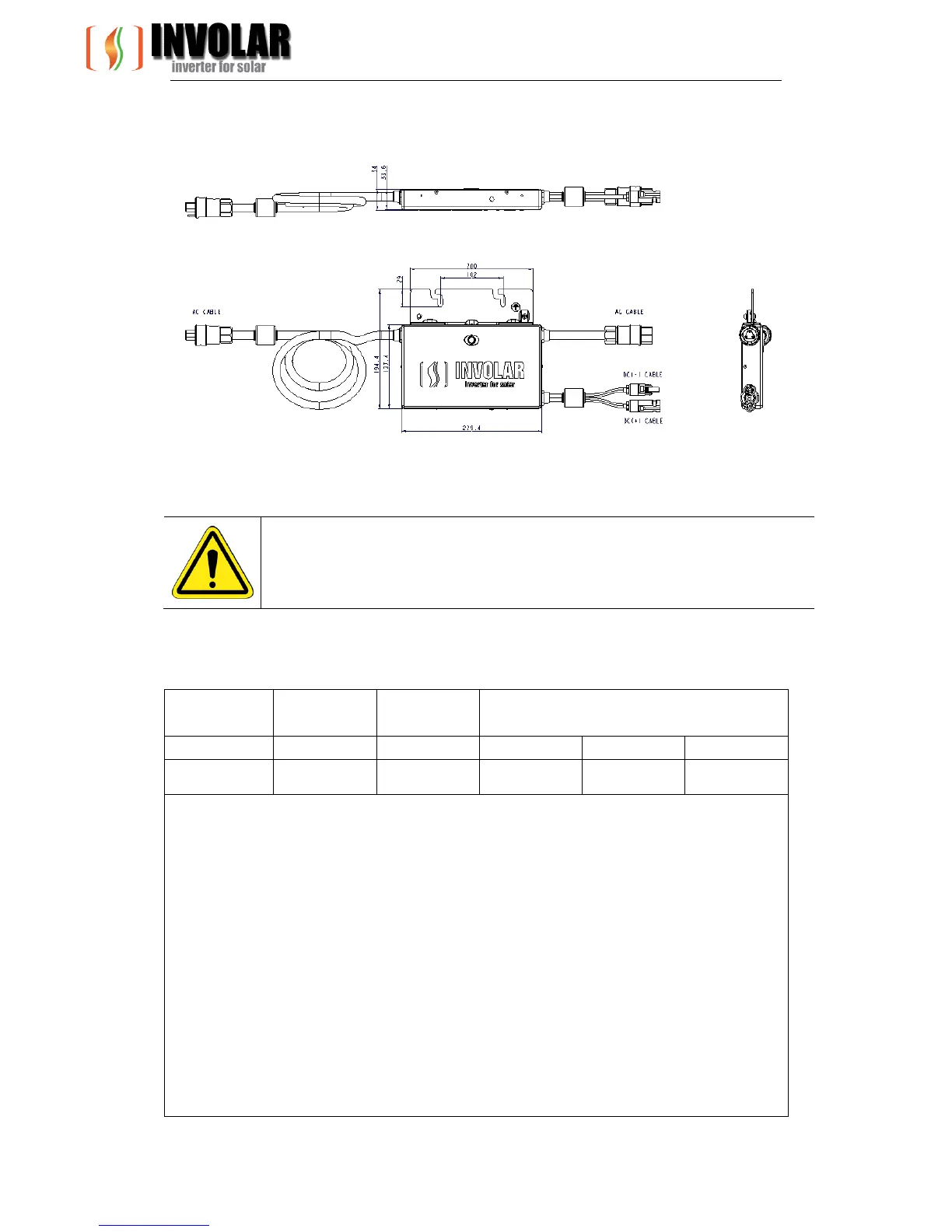

Figure 5-1 INVOLAR MAC250 Micro-Inverter outside dimension
NOTE
Allow enough space around the Micro-Inverter.
Allow 350mm between two Micro-Inverters.
The cables we recommend are as follow.
Model
AC cable
(Cu) mm2
DC cable AC Circuit breaker
MAC250
2x2.5+2,5 See below 16 250 1,45 x Iz
Check that the operating time of the circuit breaker is below 5 seconds.
To select power supply cables as specified in the above table (for details, the cable
manufacturer should be consulted.)
Dimension the mains (input power) and DC input cables according to local
regulations.
Double insulated shielded symmetrical copper cable with a max length of 5m is
required for power circuit.
AC cable: Rated voltage of the cable amount to at least Uo/U= 300V/500V (in
accordance with DIN VDE 0298), VDE or equivalent approved cord, see section
[Selection of fuse and cables].
