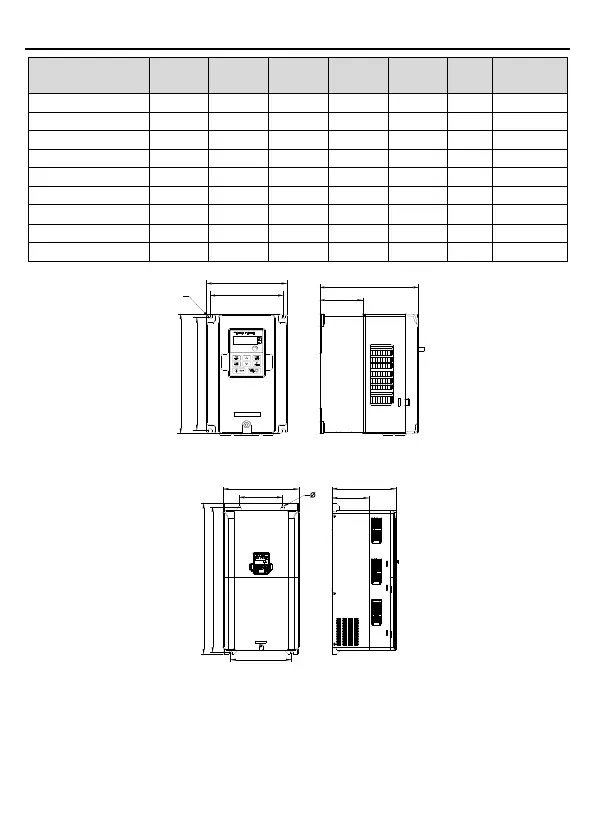

Goodrive20-EU series VFD Dimension drawings
146
Model
W1
H1
H3
H4
D1
D2
Installation
hole (d)
GD20-0R4G-S2-EU
80.0
160.0
35.4
36.6
123.5
120.3
5
GD20-0R7G-S2-EU
80.0
160.0
35.4
36.6
123.5
120.3
5
GD20-1R5G-S2-EU
80.0
185.0
35.4
36.6
140.5
137.3
5
GD20-2R2G-S2-EU
80.0
185.0
35.4
36.6
140.5
137.3
5
GD20-0R4G-2-EU
80.0
185.0
35.4
36.6
140.5
137.3
5
GD20-0R7G-2-EU
80.0
185.0
35.4
36.6
140.5
137.3
5
GD20-0R7G-4-EU
80.0
185.0
35.4
36.6
140.5
137.3
5
GD20-1R5G-4-EU
80.0
185.0
35.4
36.6
140.5
137.3
5
GD20-2R2G-4-EU
80.0
185.0
35.4
36.6
140.5
137.3
5
H1
H2
W1
W2
D2
Ø
D1
Figure B-6 Wall mounting of 3PH 400V 4 – 37kW and 3PH 230V 1.5 – 7.5 kW VFDs
H1
H2
W2
W1
D1
D2
W3
Figure B-7 Wall mounting of 3PH 400V 45 – 75kW VFDs
