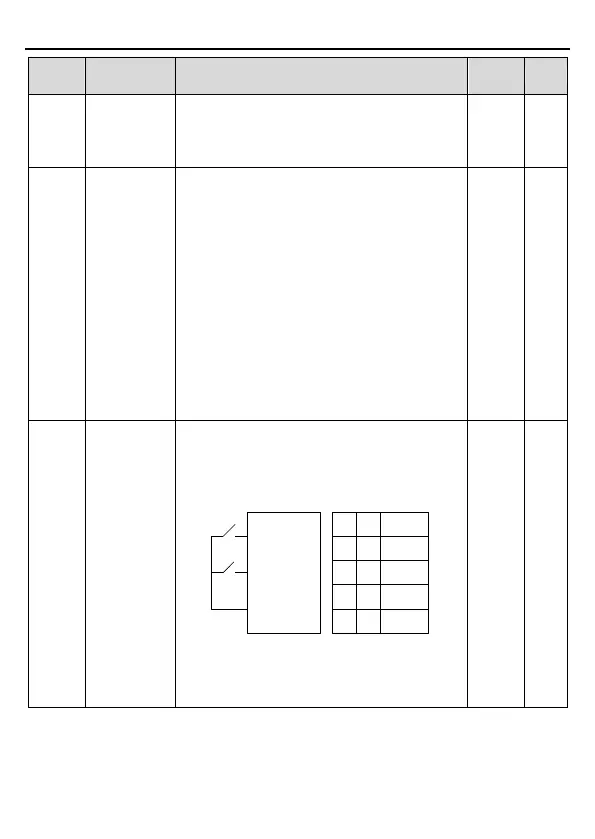

Goodrive20-EU series VFD Function parameters
59
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
P05.11
Switch filter
time
Set the sample filter time of S1 S4 and HDI
terminals. If the interference is strong, increase
the parameter to avoid wrong operation.
0.000 1.000s
0.010s
P05.12
Virtual terminal
setting
0x000 0x1FF (0: Disabled, 1: Enabled )
BIT0: S1 virtual terminal
BIT1: S2 virtual terminal
BIT2: S3 virtual terminal
BIT3: S4 virtual terminal
BIT4: S5 virtual terminal
BIT5: S6 virtual terminal
BIT6: S7 virtual terminal
BIT7: S8 virtual terminal
BIT8: HDI virtual terminal
Note: After a virtual terminal is enabled, the state
of the terminal can only be modified through
communication, and the communication address
is 0x200A.
0x000
P05.13
Terminal
control running
mode
Set the operation mode of the terminals control
0: 2-wire control 1; Combine the enable with the
direction. This mode is widely used. It
determines the rotation direction by the defined
FWD and REV terminals command.
FWD
REV
COM
K1
K2
Running
command
FWD REV
OFF OFF
OFF
OFF
ON
ON
ON ON
Stopping
Hold on
Forward
running
Reverse
running
1: 2-wire control 2; Separate the enable from the
direction. FWD defined by this mode is the
enabling ones. The direction depends on the
state of the defined REV.
0
