(1) Put the installation bracket cutout template against the wall, and Drill in the wall according
to the marked holes position;
(2) Fix the expansion bolts into the 4/6 holes with hammer;

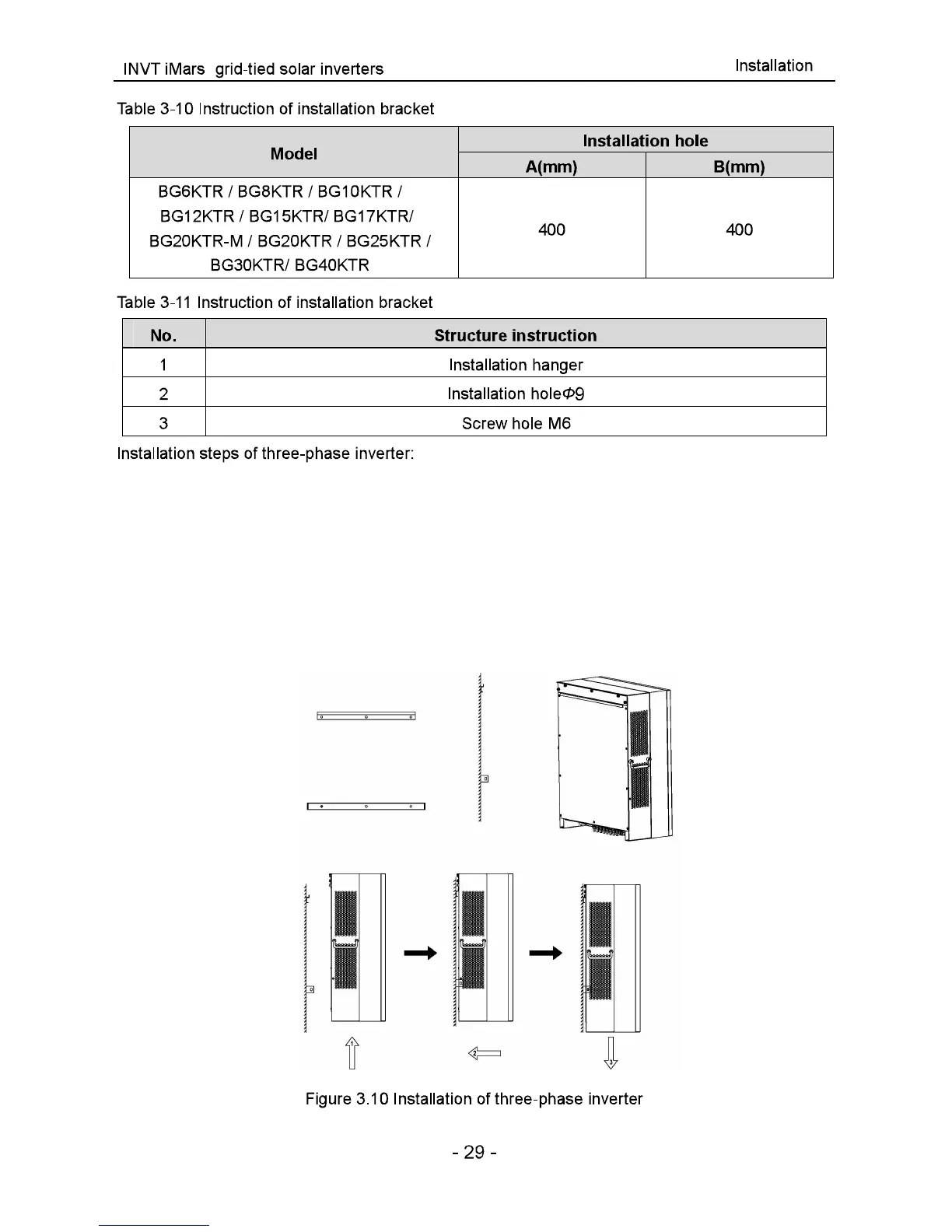

(3) Fix the installation bracket on the bolts and ensure it is firm enough as figure 3.10 shows;
(4) Hang the inverter on the installation bracket and ensure it is locked-in as figure 3.10 shows;
(5) Fix the screws into the screw-holes to ensure fastened installation.
