Operator's Manual
ION G2 Electric Ice Auger

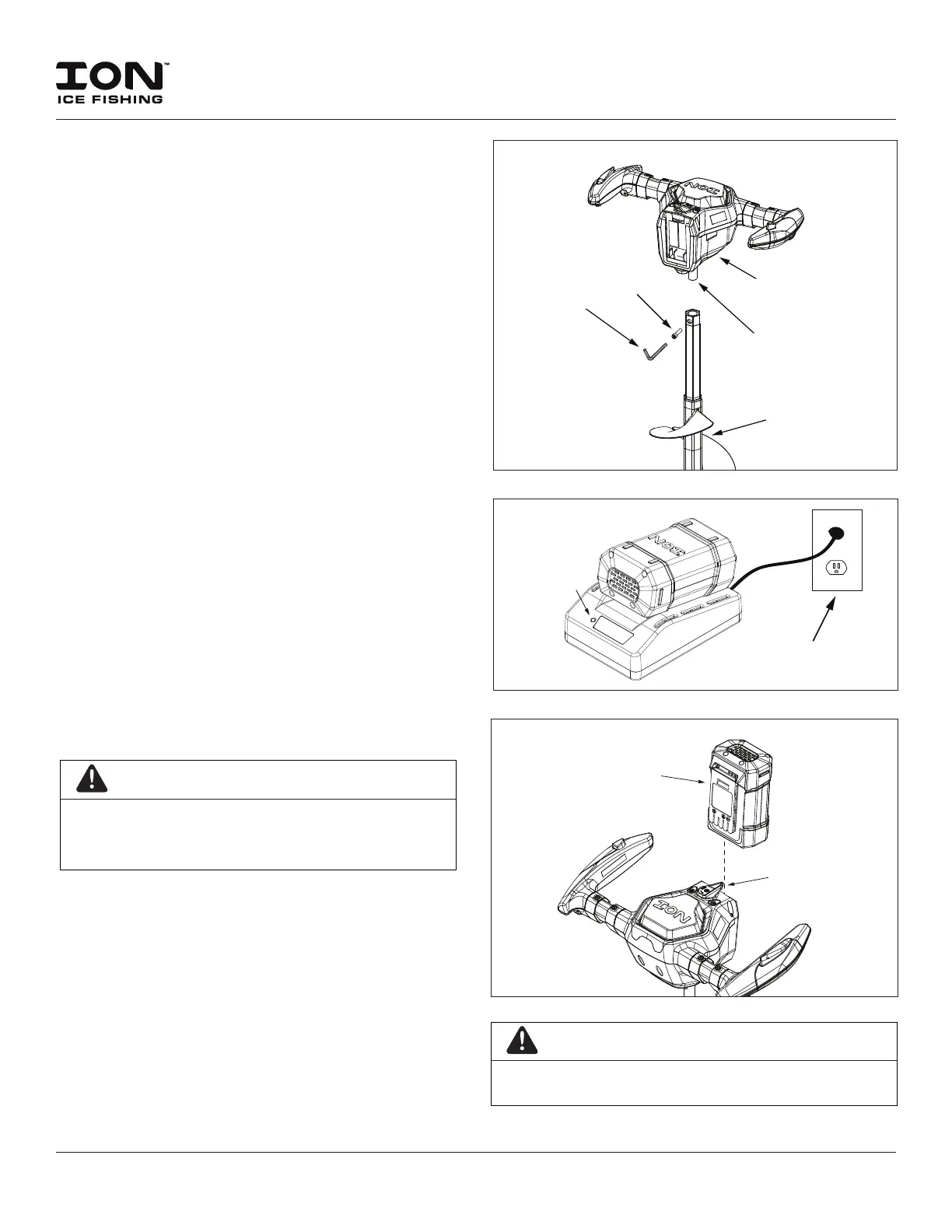

UNPACKING AND ASSEMBLY
To Assemble the Auger to the Powerhead
1. Use the hex wrench included in the parts bag to remove
the bolt from the stem of the auger.
2. Insert the output shaft of the powerhead into the stem of
the auger and align the hole in the stem with the hole in
the output shaft. SEE FIGURE 1
3. Replace the bolt in the stem of the auger and tighten with
the included hex wrench.
NOTE: There may still be some slop in the
connection between the output shaft and the auger.
This is normal.
Optional:
Apply a small amount of oil or grease to the output
shaft before assembly to aid in disassembly at a later date.
To Charge the Battery for First Use
1. Connect the charger to a standard 120-volt outlet; a
red light should appear on the charger. Always connect
charger to standard 120-volt wall outlet before inserting
battery. SEE FIGURE 2
2. Charge the battery until the light on the charger turns
solid green.
3. To disconnect the battery, remove the plug from the wall
outlet then disconnect the battery from charger.
NOTE: Do not leave the battery on the charger
after the charge is complete. Unplug the charger
from the wall and remove the battery.
To Install the Battery
1. Turn the battery lock lever right, to the unlocked position.
2. Slide the battery onto the powerhead until it is fully seated.
3. Turn the battery lock lever left, to the locked position.
NOTE: The battery lock lever must be in the
unlocked position before the battery can be slid
onto the powerhead. SEE FIGURE 3
POWERHEAD
DRIVESHAFT
AUGER
BOLT
HEX
WRENCH
IMPORTANT
DO NOT LEAVE BATTERY ON POWERHEAD
WHEN AUGER IS NOT IN USE. ALWAYS DETATCH
BATTERY WHEN NOT USING THE ICE AUGER.
INDICATOR
LIGHT
120
VOLT
OUTLET
FIGURE 2
FIGURE 1
IMPORTANT
BATTERY MUST BE FULLY CHARGED BEFORE
FIRST USE.
LITHIUM
BATTERY
BATTERY
LOCK
LEVER
FIGURE 3
