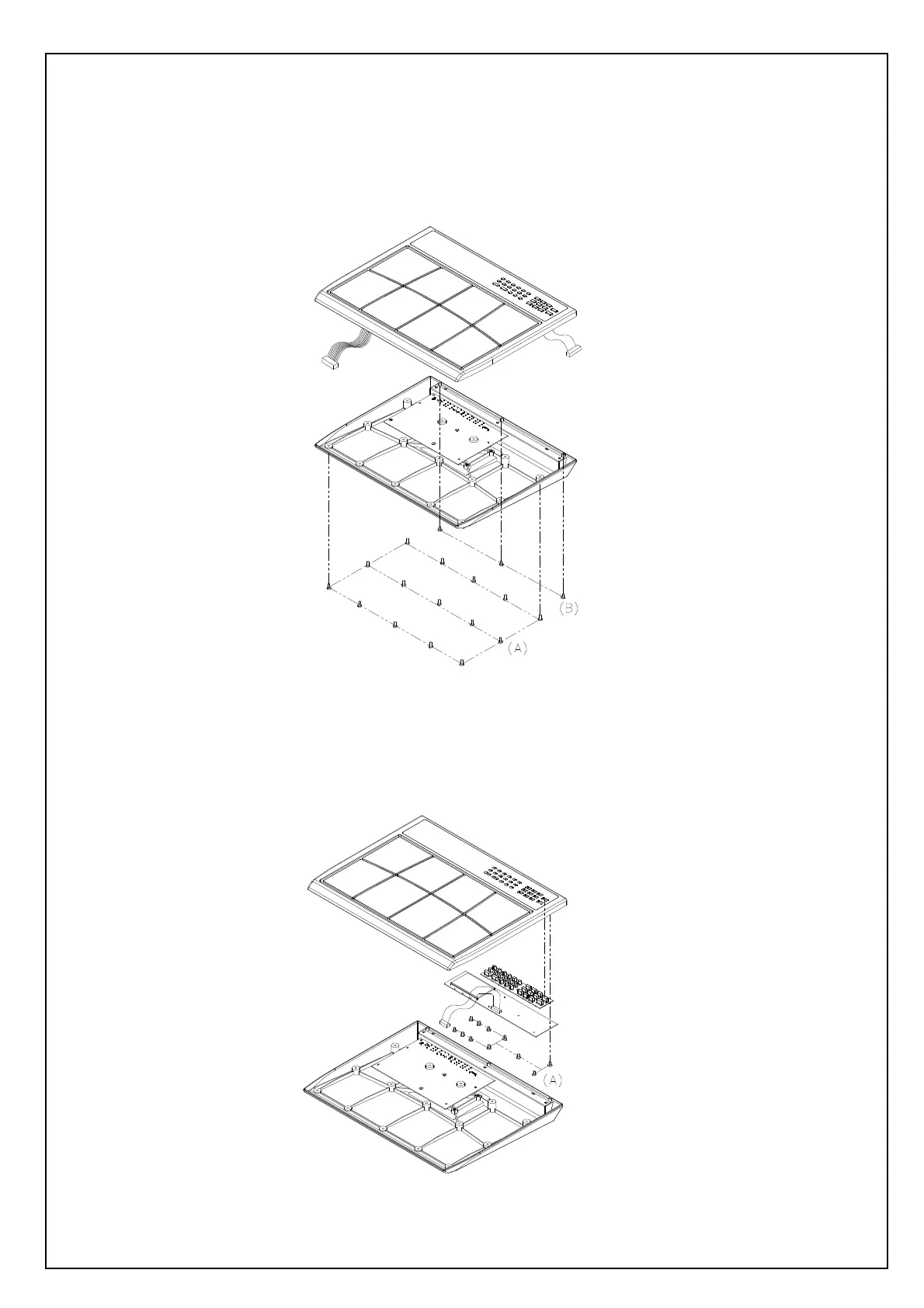

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE CABINET (Fig1)
(A) REMOVE 15 SCREWS FROM TOP CABINET .
(B) REMOVE 3 SCREWS FROM TOP CABINET .
cp
(Fig1)
2. DISASSEMBLE THE CONTROL INSERT PCB ASS’Y. (Fig2)
(A)REMOVE 11 SCREWS FROM THE CABINET.
(Fig.2)
