Features

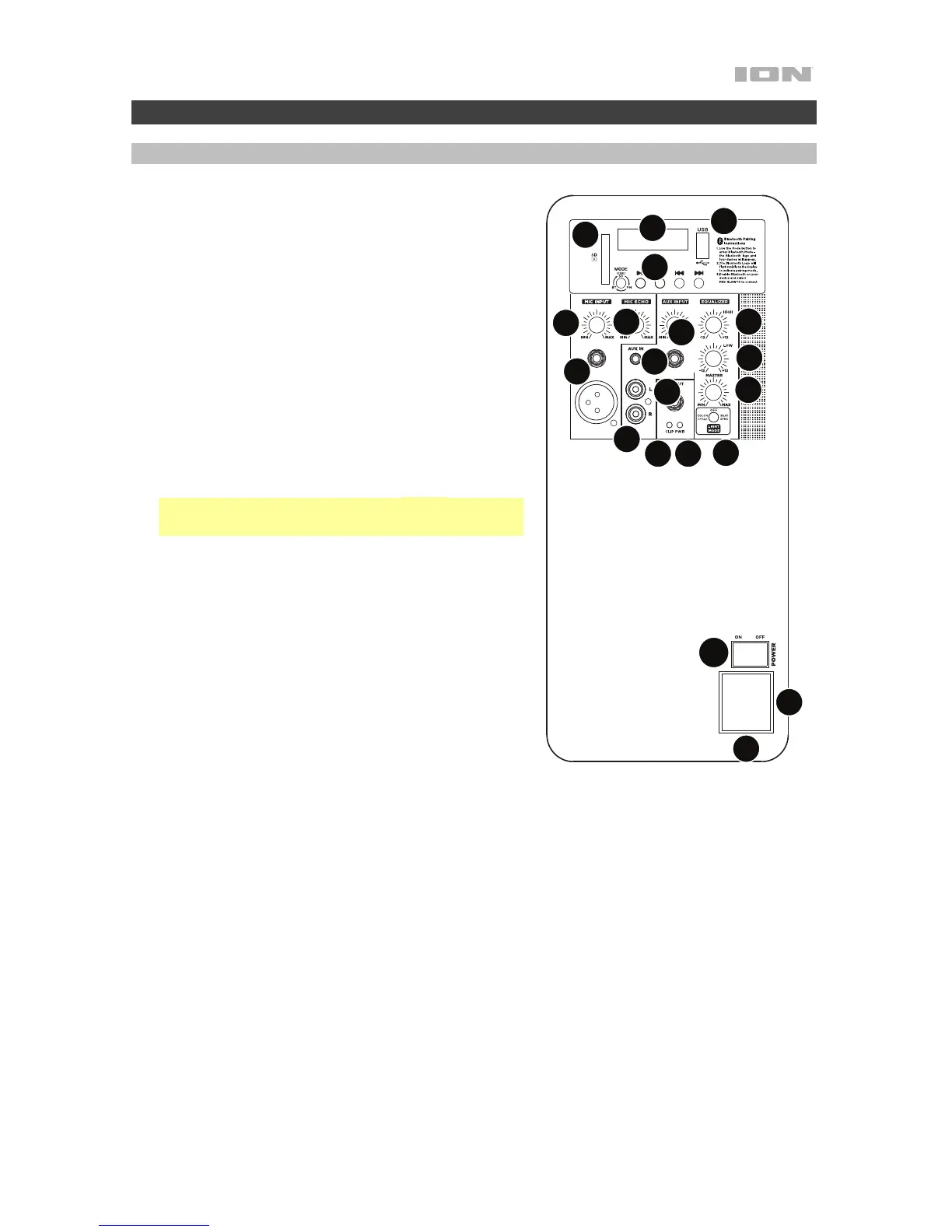

Rear Panel
1. Media Panel: Controls for the USB, SD, FM
radio, and Bluetooth sources. The Media Panel
Mode source symbol will illuminate when that
source is playing.
Note: A USB drive or SD card must contain
playable files in order for it to appear properly in
the media panel’s display. You can play MP3s,
WAVs, and WMA files.
2. USB Port: Connect your USB flash drive here to
play music.
3. SD Card Slot: Insert your SD card here to play
music.
4. Display: Displays the media panel modes for
USB, SD, FM radio, and Bluetooth.
Note: The display comes with a plastic protector
on it. Remove this for optimal viewing.
5. Mic Inputs (1/4”/6.35 mm & XLR): Connect a
dynamic microphone to the 1/4” (6.35 mm) or
XLR inputs. Control the volume of the inputs
using the Mic Input Volume knob.
6. Mic Input Volume: Turn this knob to adjust the
input volume of the Mic Input.
7. Aux Inputs (1/8”/3.5 mm and 1/4”/6.35 mm):
Connect a CD player, digital media player, or
other audio source to the 1/8” (3.5 mm) and 1/4”
(6.35 mm) stereo auxiliary inputs. Control the
volume using the Aux Input Volume knob.
8. RCA Inputs: Connect a CD player, digital media player, mixer, or other media source to
these inputs. Control the volume using the Aux Input Volume knob.
9. Aux Input Volume: Turn this knob to adjust the input volume of the Aux Input, XLR Input,
and RCA Inputs.
10. Mix Out (1/4” / 6.35 mm): Connect this output to another active (powered) speaker. The
level of the output is controlled by the Mic Input Volume, Aux Input Volume, and Master
Volume.
11. Mic Echo: Use this knob to add or remove an echo effect to the Mic Inputs.
12. High EQ: Increases or decreases the high (treble) frequencies for Mic Input,
Line Input,
and Media Panel sources at a range between -12 dB to +12 dB.
13. Low EQ: Increases or decreases the low (bass) frequencies for Mic Input, Line Input, and
Media Panel sources at a range between -12 dB to +12 dB.
14. Master Volume: Turn this knob to adjust the overall output volume of the loudspeaker.
