IOTAVX AVX17 - Rear Panel Overview

4

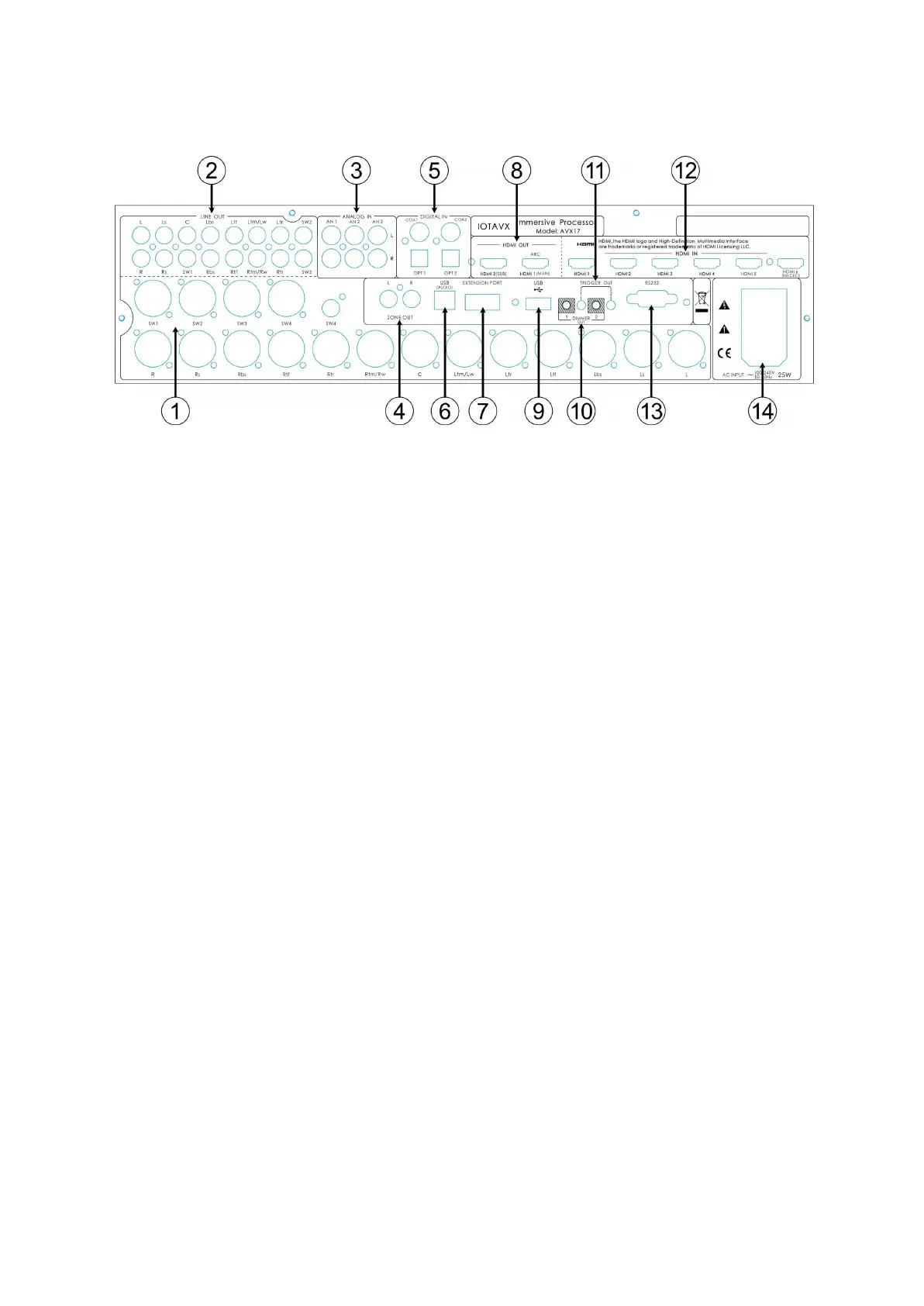

Rear side
1. Analog XLR audio outputs
For analog connection to an external power amplifier.
SW1-4: Subwoofer 1-4
R: Right front speaker
Rs: Right surround speaker
Rbs: Right surround back speaker
Rtf: Right top front speaker
Rtr: Right top rear speaker
Rtm/Rw: Right top middle speaker / Right front wide speaker
C: Center speaker
Ltm/Lw: Left top middle speaker / Left front wide speaker
Ltr: Left top rear speaker
Ltf: Left top front speaker
Lbs: Left surround back speaker
Ls: Left surround speaker
L: Left front speaker
2. Analog cinch audio outputs
For analog connection to an external power amplifier.
SW1-4: Subwoofer 1-4
L: Left front speaker
Ls: Left surround speaker
C: Center speaker
Lbs: Left surround back speaker
Ltf: Left top front speaker
Ltm/Lw: Left top middle speaker / Left front wide speaker
Ltr: Left top rear speaker
R: Right front speaker
Rs: Right surround speaker
Rbs: Right surround back speaker
Rtf: Right top front speaker
Rtm/Rw: Right top middle speaker / Right front wide speaker
Rtr: Right top rear speaker
