IPC CT 71 - Fuses: replacing; Battery maintenance and charging

ENGLISH
Fuses: replacing
! WARNING
Never use a fuse with a higher amperage than specied.
The fuses can only be replaced by an IP Cleaning service centre or by technical person-
nel authorised by IP Cleaning.

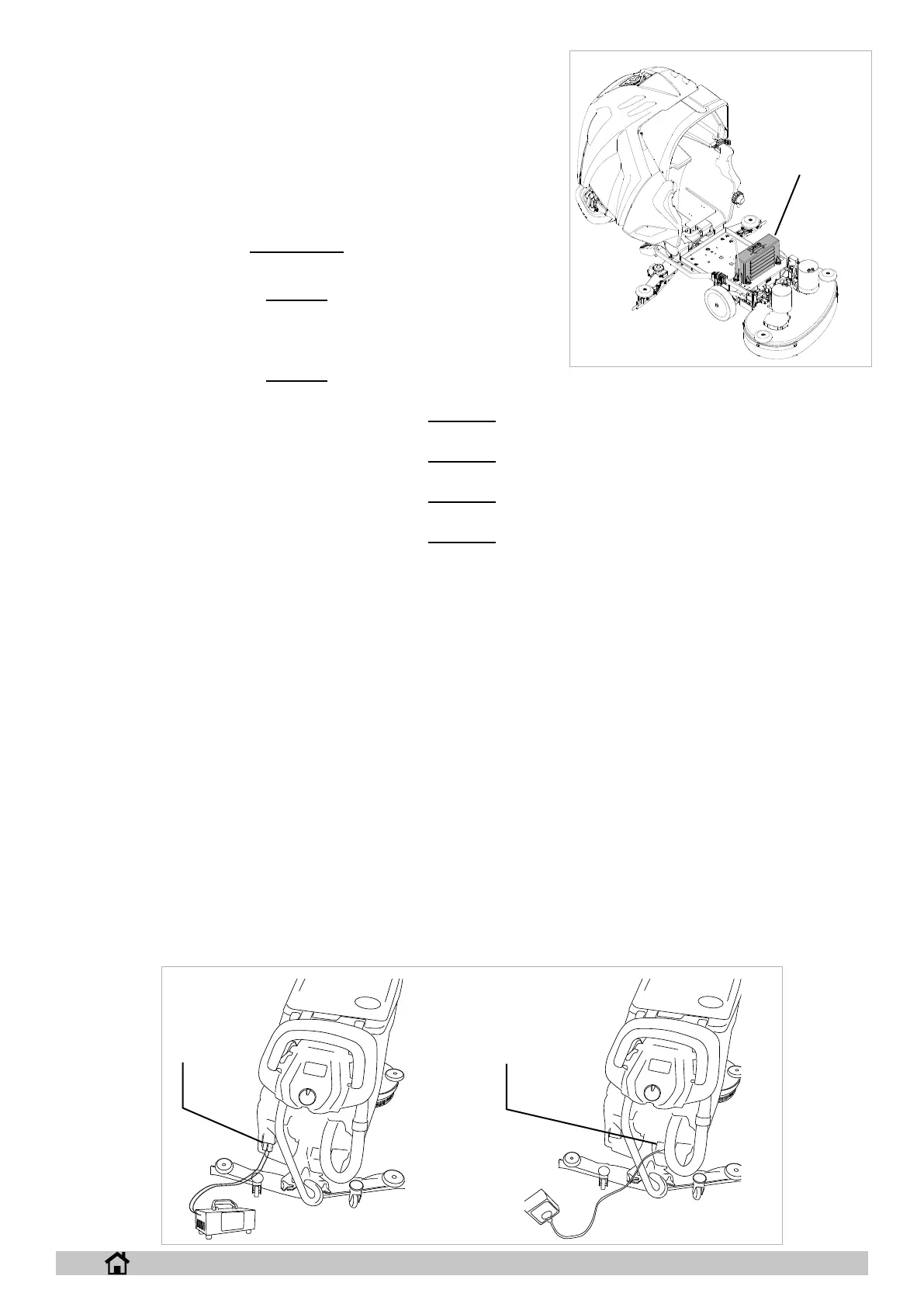

Lift the tank, disconnect the battery wiring connector from the electrical system or unplug
the power cable, remove the cover (Fig. 18-Ref. 1) to access the fuses.
Battery maintenance and charging
! INFORMATION
Before charging the batteries, remove the electronic key from the instrument pan-
el.
! DANGER
Do not check the batteries by sparking.
The batteries (WET) give o󰀨 ammable fumes. Put out all res and hot embers
before checking or topping up the battery level.
! DANGER
Perform the operations described below in a ventilated area.
! WARNING
When charging the batteries, the tank must be lifted and kept open, to allow correct ventilation of the battery compartment.
! WARNING
In the case of gel batteries, use a specic charger for gel batteries only.
! WARNING
To avoid permanent damage to the batteries, do not run them down completely.
! WARNING
Charge the batteries as instructed in the battery charger manual.
Disconnect the connectors at the end of charging.
“STANDALONE” battery charger, electrical connection to the machine:
► Turn the machine o󰀨.
► Plug the battery charger connector into the socket on the machine as highlighted (g. 19-ref. 1).
► Start the recharge cycle.
► Disconnect the connectors at the end of charging.
“ONBOARD” battery charger:
► Turn the machine o󰀨.
► Unplug the battery charger from the socket (g. 19-ref. 2).
► Plug into the mains socket.
► Start the recharge cycle.
► The display will show when the recharge cycle ends, see “Display alarms”
► At end of the recharge cycle, unplug the cable from the power socket.
1
18
1 2
19
BATTERY CHARGER STAND ALONE
24V
BATTERY CHARGER ON BOARD
19
