IPC PW-C85 - Water Circuit Connection; Self-Priming Water Supply; Electrical Connection; Clothing and Equipment

English
- 21 -

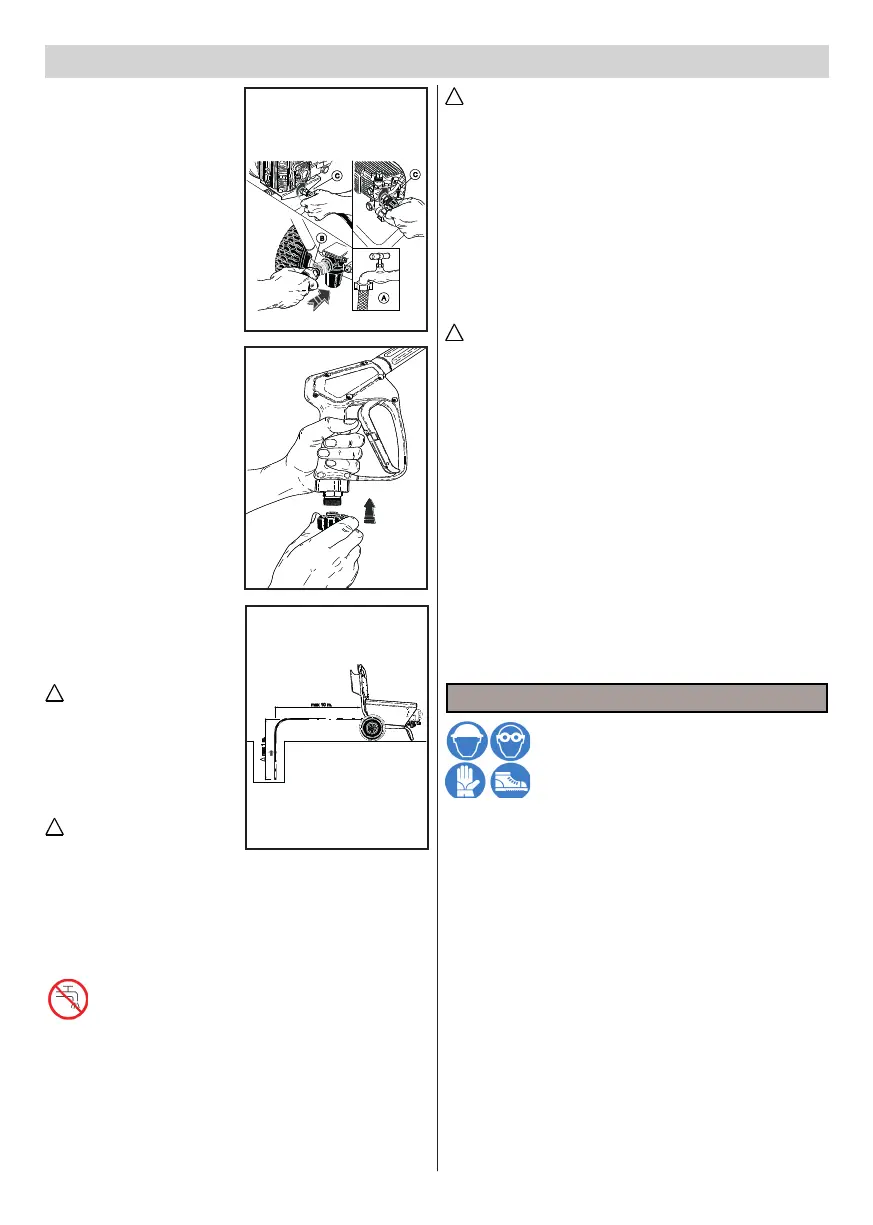

WATER CIRCUIT CONNEC-
TION
Connect the feed hose to
the mains (g. 4A) and to
the hosetail on the cleaner
(g.4B).
Check that the pressure and
quantity of the water supplied
bythemainsaresu󰀩cientfor
the cleaner to work properly: 2
to 8 BAR (29 to 116 PSI).
Maximum temperature of fee-
ding water 50°C (122°F).
Connect the high pressure
hose to the cleaner (g. 4C)
andtothelance(g.5).
WATER SUPPLY WITH
SELF-PRIMING SYSTEM.
The high pressure washer can
be supplied by drawing water
from an external tank.
Connect a water supply pipe to
thettingonthehighpressure
washer, inside diameter 25
mm, max length 10 m.
The maximum suction height
is 1 m. (Fig. 6).
Ameshltershouldbeinstal-
led at the end of the suction
pipe.
Danger
The cleaner must operate
with clean water. Dirty or
sandy water, corrosive che-
micals and solvents can
cause severe damage to
the cleaner.
Danger
Never suck up liquids con-
Warning
Do not connect the machine to a drinking water container.
ELECTRICAL CONNECTION
Connection of the cleaner to the mains must be carried out by
skilled technicians able to ensure that all regulations in force
are complied with use in respect of current standards and
legislation.
Ensure that the mains voltage available is the same as the vol-
tage at which the cleaner is supposed to work; this is indicated
ontheidenticationplate.
Danger
- The electric cable must be protected from accidental crushing.
- Do not use the machine if the supply cable is damaged.
- The use of any electric appliance requires the respect of
some basic rules:
• Do not touch the appliance with wet or damp hands or feet.
• Do not use the appliance bare-footed or with unsuitable
clothing.
• Do not pull the supply cable or the appliance itself in order
to disconnect the plug from the electric supply. (For water
cleanersratedatlessthan3kWttedwithplug).
As for the protection against electric shock, the H.P.cleaner
belongs to CLASS I.
Failure to observe the above warning frees the manufac-
turer from all responsibility and constitutes negligent use
of the product.
FIG. 5
FIG. 4
!
!
!
taining solvents or acids in the pure state, for example petrol,
paint solvents or diesel. The spray mist from the lance is highly
inammable,explosiveandpoisonous.
Failure to respect the above absolves the manufacturer of all
liability and represents negligent use of the product.
Information
Respect the instructions provided by the water
utility company.
Current regulations specify that the appliance may not be con-
nected to the drinking water supply unless a suitable system
separatoristted.
Use a suitable EN 12729 type BA system separator.
Water passing through a system separator is no longer classi-
edasdrinkingwater.
!
FIG. 6
CLOTHING AND EQUIPMENT
Wear safety shoes with non-slip soles.
Wear protective goggles or visor and safety
garments.
You are recommended to wear overalls to reduce the risk of
injury caused by involuntary contact with the high pressure jet.
A
B
C
C
A
B
C
C
max 10 m.max 10 m.
