- 21 -
Danger
The cleaner must operate with clean water. Dirty or sandy
water, corrosive chemicals and solvents can cause severe
damage to the cleaner.
Danger
Never suck up liquids containing solvents or acids in the pure
state, for example petrol, paint solvents or diesel. The spray mist
fromthelanceishighlyinammable,explosiveandpoisonous.
Failure to respect the above absolves the manufacturer
of all liability and represents negligent use of the product.
Information
Respect the instructions provided by the water utility
company.
Current regulations specify that the appliance may not be con-
nected to the drinking water supply unless a suitable system
separatoristted.
Use a suitable EN 12729 type BA system separator.
Water passing through a system separator is no longer classi-
edasdrinkingwater.
Warning
Do not connect the machine to a drinking water container.
ELECTRICAL CONNECTION
The water cleaner must be connected to a mains electricity
supply conforming to current legislation and standards.
Ensure that the mains voltage available is the same as the vol-
tage at which the cleaner is supposed to work; this is indicated
ontheidenticationplate.
Danger
- The electric cable must be protected from accidental crushing.
- Do not use the machine if the supply cable is damaged.
- The use of any electric appliance requires the respect of
some basic rules:
•Donottouchtheappliancewithwetordamphandsorfeet.
•Do not use the appliance bare-footed or with unsuitable
clothing.
•  D o  n o t  p u l l  t h e  s u p p l y  c a b l e  o r  t h e  a p p l i a n c e  i t s e l f  i n  o r d e r 
to disconnect the plug from the electric supply.
(Forwatercleanersratedatlessthan3kWttedwithplug).
As for the protection against electric shock, the H.P.cleaner
belongs to CLASS I.
Failure to observe the above warning frees the manufac-
turer from all responsibility and constitutes negligent use
of the product.
COMMAND AND CONTROL DEVICES
Warning
Before connecting the machine to the water supply and to the
power mains, it is essential to know the function of the cleaner's
command and control devices.
SAFETY DEVICES
The safety devices protect the user and the appliance. They
must not be tampered with or used for other than their desi-
gnated purpose.
Safety valve: protects the high pressure hydraulic circuit in
the event of a by-pass valve malfunction or if the hydraulic
circuit is blocked.
The safety valve is calibrated by the Manufacturer and sealed.

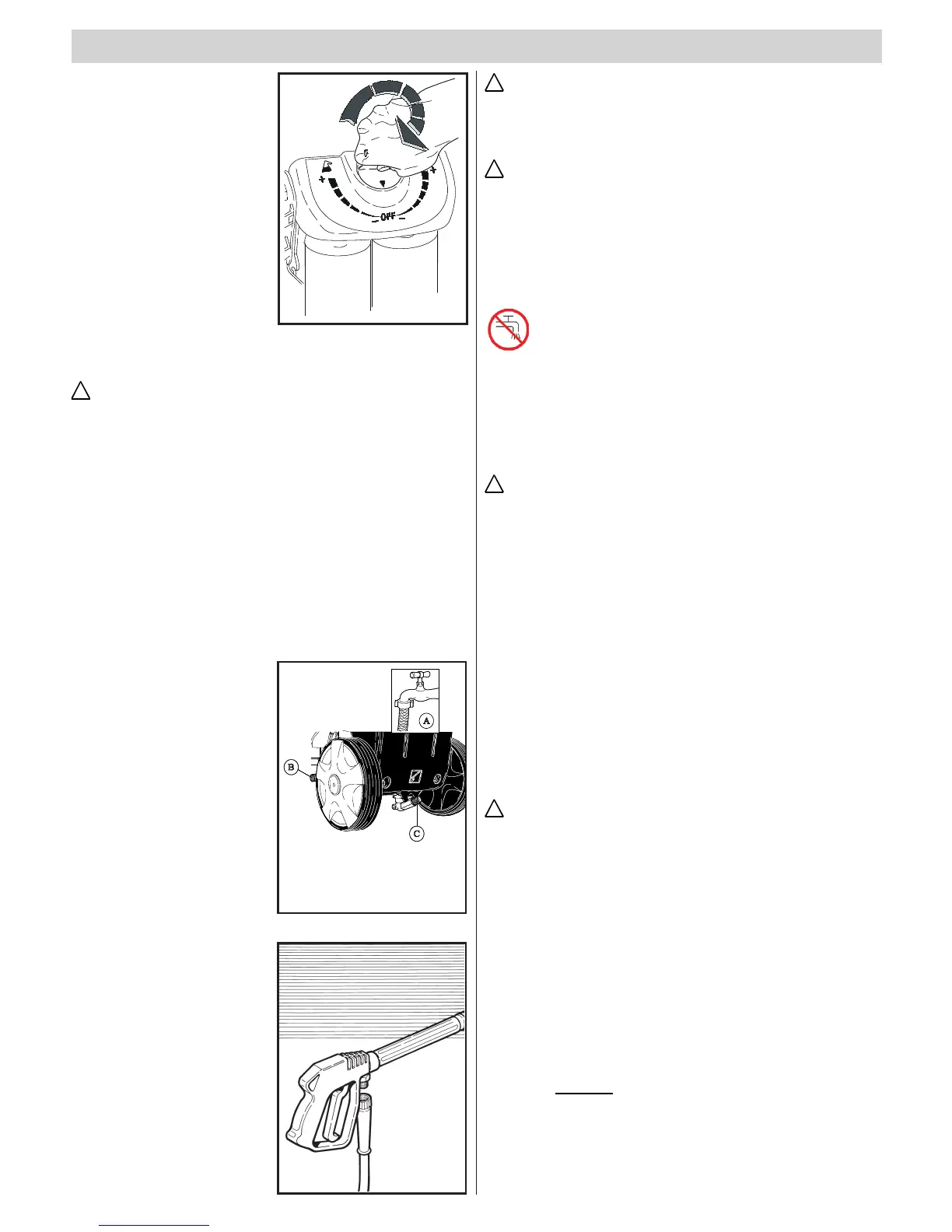

FIG. 6
FIG. 5
Operations involving the safe-
ty valve must be performed by
a technical service centre only.
Safety device on lance
handgrip: Prevents the trig-
ger on the handgrip from being
operated accidentally.
Thermal cutout: stops the
high pressure washer if the
electric motor overheats.
WATER CIRCUIT CONNEC-
TION
Connect the feed hose to the
mains(g.5A)andtotheho-
setailonthecleaner(g.5B).
Check that the pressure and
quantity of the water supplied
bythemainsaresufcientfor
the cleaner to work properly:
2 to 8 BAR (29 to 116 PSI).
Maximum temperature of
feeding water 50°C (122°F).
Connect the high pressure
hose to the cleaner (g. 5C)
andtothelance(g.6).
FIG. 4
WAX-SOAP KIT
(If available)
Select the desired tank by
turning the selector appropri-
ately. Detergent can only be
delivered in the low-pressure
position. (Fig. 4).
!
!
!
!
