C
HAPTER
5
| Interface Configuration
Trunk Configuration
ā 159 ā
WEB INTERFACE
To configure a local mirror session:
1. Click Interface, Trunk, Mirror.
2. Select Add from the Action List.
3. Specify the source trunk.
4. Specify the monitor port.
5. Specify the traffic type to be mirrored.
6. Click Apply.

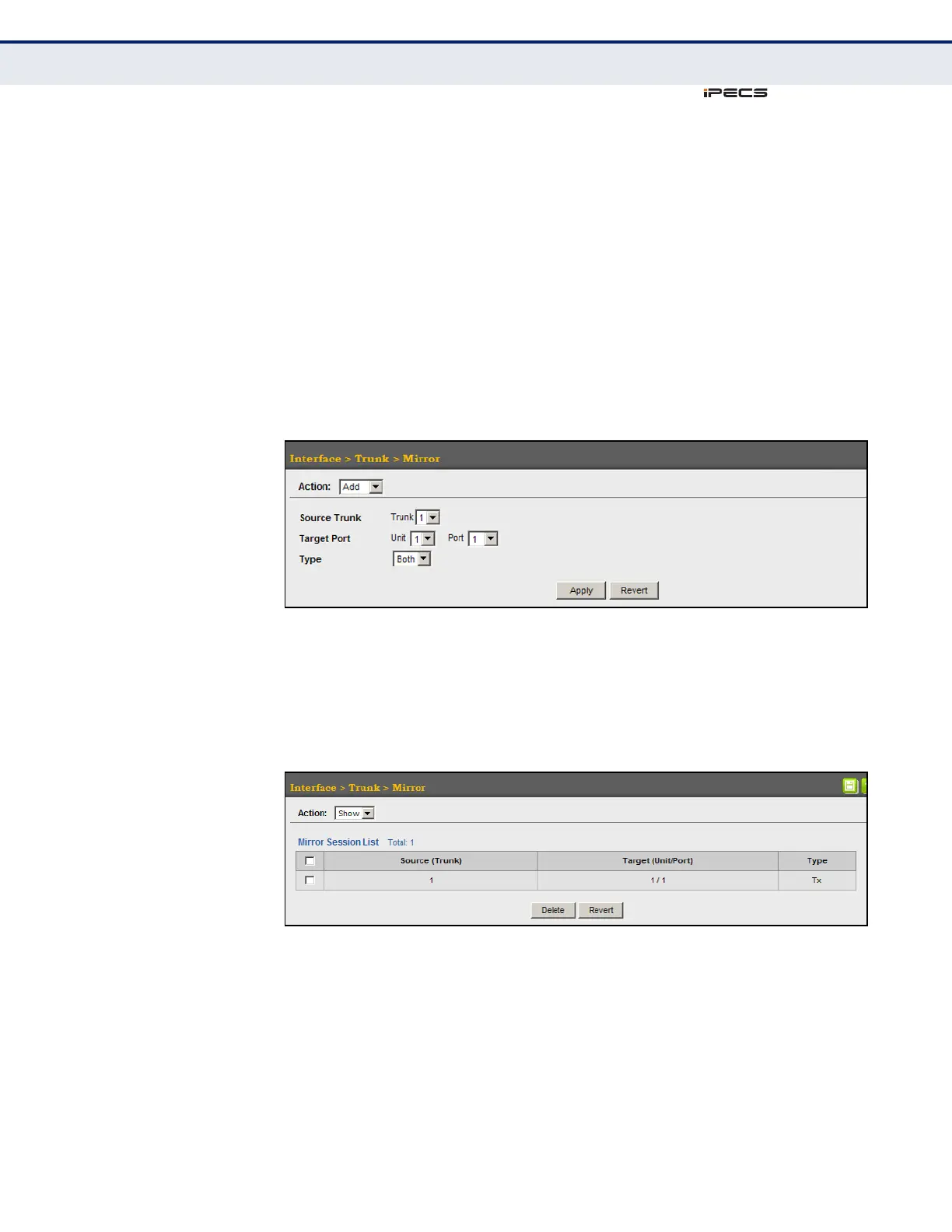

Figure 54: Configuring Trunk Mirroring
To display the configured mirror sessions:
1. Click Interface, Trunk, Mirror.
2. Select Show from the Action List.
Figure 55: Displaying Trunk Mirror Sessions
