With an external tension 24V DC

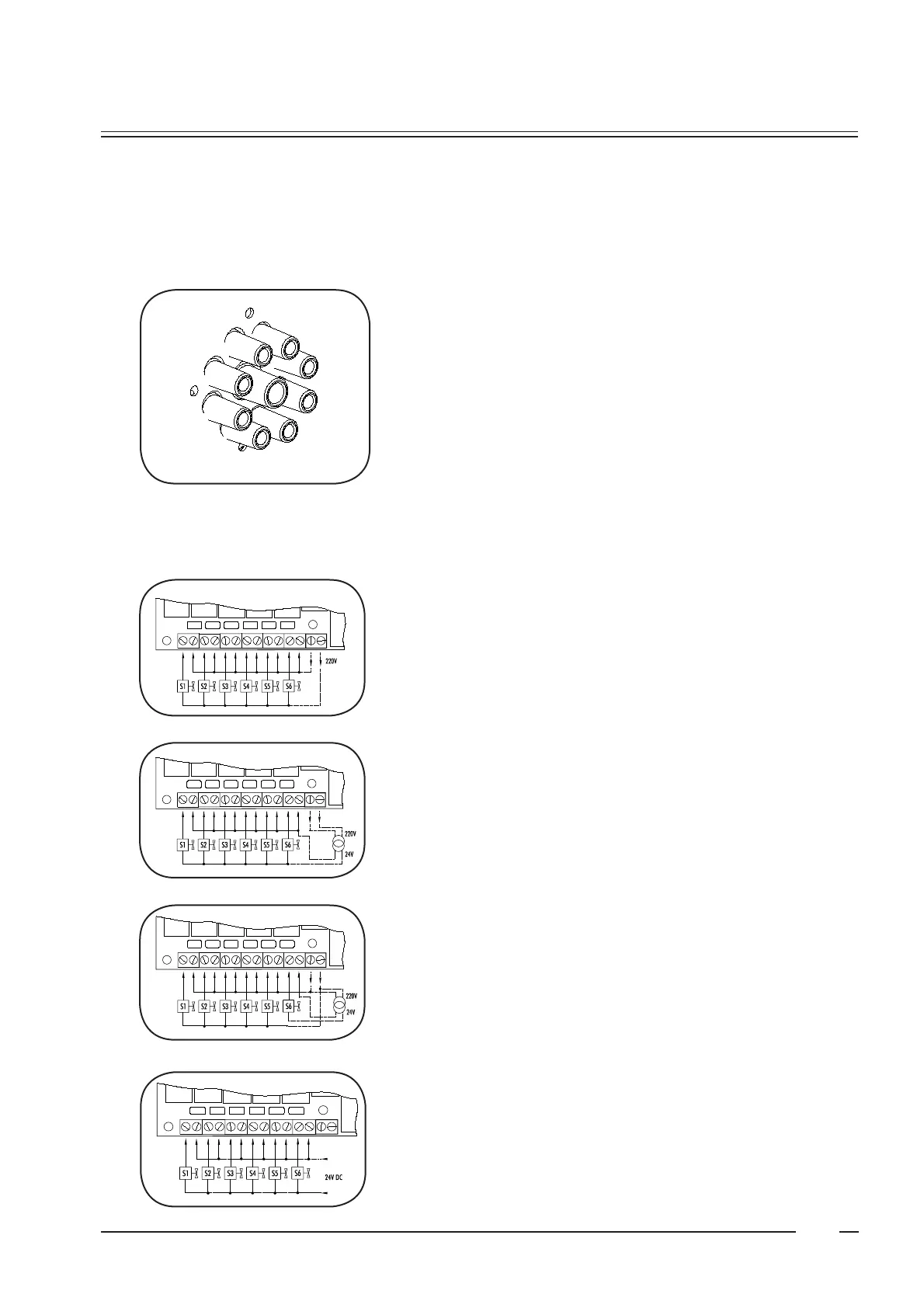

Electrical connection of
the liquid soap pumps
On machines equipped with a liquid soap connection, connect the wires
directly on the print board next to the ground wire connection (option).
Connect as indicated on the wiring diagram.
The two connectors on the right give a tension of 220V ~ (max. 4A) which
can be applied to drive 220V ~ soap pumps. If more than 4A is required,
an external tension will have to be used. 6 connections have been provi-
ded, of which one (S6) can be used to drive a waterproofi ng pump (e.g.
for rain coats, etc.).
The 220V can be transformed to other values to drive other type soap
pumps.
Example: pumps 24V ~.
Also, pumps with different operating tension can be combined.
Example: 5 pumps 220V ~ and 1 pump 24V ~.
The liquid soap connection consists of 8 connections for liquid soap
(SI….S).
The central opening is used for ventilation.
Liquid soap connection (option)
Connection of the liquid soap
hoses
